Active Test
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Never perform "Active Test" while driving the vehicle.
- The "Active Test" cannot be performed when the following systems malfunction is displayed.
- ICC system
- Blind Spot Warning/RCTA
- PFCW/FEB
- The "Active Test" cannot be performed when the FEB warning lamp is illuminated.
- The "Active Test" cannot be performed when the ICC System is ON.
| Test item | Description |
|---|---|
| METER LAMP | The FEB warning lamp can be illuminated by ON/OFF operations as necessary. |
| STOP LAMP | The ICC brake hold relay can be operated by ON/OFF operations as necessary, and the stop lamp can be illuminated. |
| ADAS BUZZER | Sounds a buzzer used for BSW, RCTA by arbitrarily operating ON/OFF. |
| METER BUZZER | Sounds a buzzer used for ICC, PFCW, FEB by arbitrarily operating ON/OFF. |
| BRAKE ACTUATOR 1 | Activates the brake by an arbitrary operation. |
| BRAKE ACTUATOR 2 | |
| BRAKE ACTUATOR 3 |
METER LAMP
NOTE:
The test can be performed only when the engine is running.
| Test item | Operation | Description | FEB warning lamp |
|---|---|---|---|
| METER LAMP | Off | Stops sending the FEB warning lamp signal to exit from the test. | OFF |
| On | Transmits the FEB warning lamp signal to the combination meter via CAN communication. | ON |
STOP LAMP
| Test item | Operation | Description | Stop lamp |
|---|---|---|---|
| STOP LAMP | Off | Stops transmitting the ICC brake hold relay drive signal below to end the test. | OFF |
| On | Transmits the ICC brake hold relay drive signal. | ON |
METER BUZZER
| Test item | Operation | Description | Operation sound |
|---|---|---|---|
| METER BUZZER | Off | Stops buzzer output to the combination meter via CAN communication. | - |
| On | Starts buzzer output to the combination meter via CAN communication. | - |
ADAS BUZZER
| Test item | Operation | Description | Operation sound |
|---|---|---|---|
| ADAS BUZZER | On | Starts buzzer output. | - |
| Off | Stops buzzer output. | - |

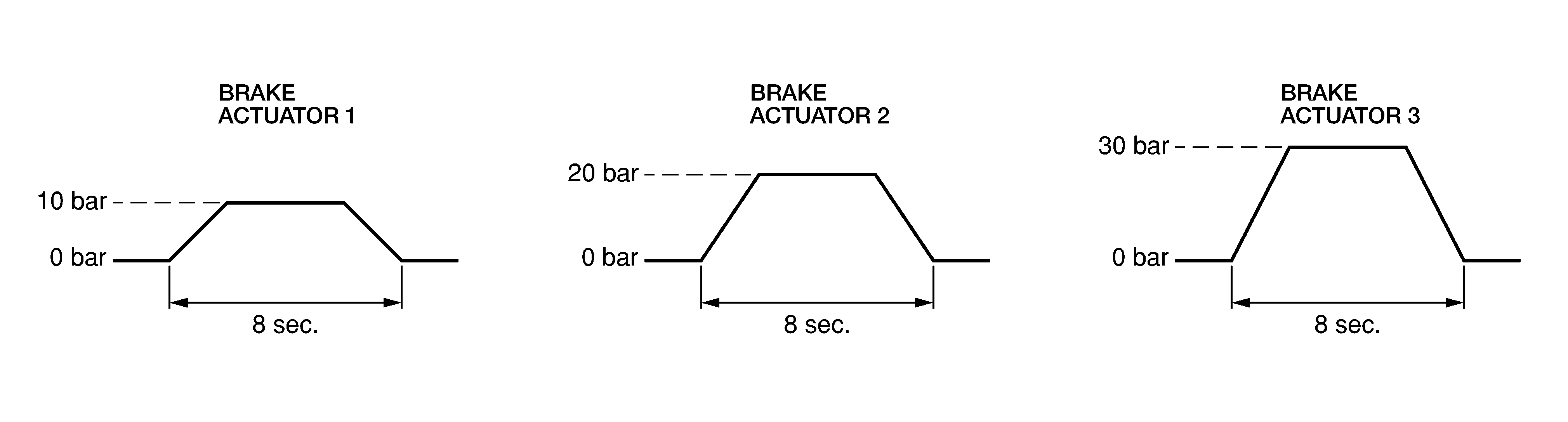

BRAKE ACTUATOR
NOTE:
The test can be performed only when the engine is running.
| Test item | Operation | Description | "PRESS ORDER" value |
|---|---|---|---|
| BRAKE ACTUATOR 1 | Off | Stops transmitting the brake fluid pressure control signal to end the test. | - |
| On | Starts transmitting the brake fluid pressure control signal to start the test. | 10 bar | |
| BRAKE ACTUATOR 2 | Off | Stops transmitting the brake fluid pressure control signal to end the test. | - |
| On | Starts transmitting the brake fluid pressure control signal to start the test. | 20 bar | |
| BRAKE ACTUATOR 3 | Off | Stops transmitting the brake fluid pressure control signal to end the test. | - |
| On | Starts transmitting the brake fluid pressure control signal to start the test. | 30 bar |
NOTE:
The test is finished in 10 seconds after starting
