Operation Description: Notes
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

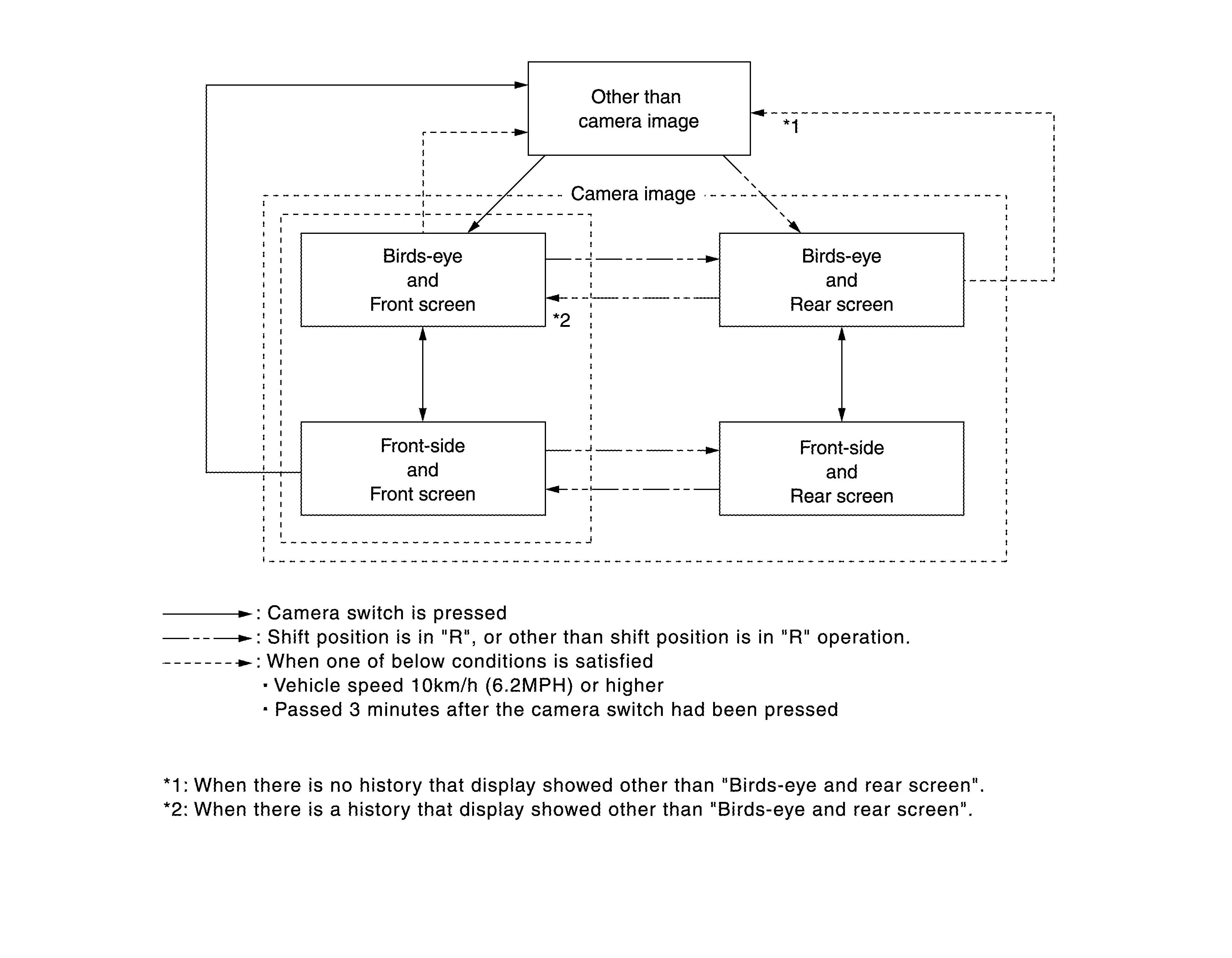

Around view monitor screen transition
- Around view monitor is displayed on the display when "CAMERA" switch is pressed, when shifting position is reverse.
- Bird's-Eye view, Front-side view, and front/rear wide view can be switched by "Change View" switch (touch switch) or "CAMERA" switch while around view monitor is displayed.
- Priority of view to be displayed can be set by "Settings" screen.
- While shift position is other than reverse, around view monitor is canceled when approximately 3 minutes are passed after "CAMERA" switch is pressed or when vehicle speed is approximately 10 km/h (6 MPH) or more. The screen returns to the screen before displaying around view monitor.
- Setting of Moving Object Detection (MOD) can be switched ON/OFF by temporary OFF switch of AV control unit (Temporary OFF).
- In temporary OFF, around view monitor is canceled. Temporary OFF is canceled when around view monitor is displayed once again. MOD is switched to operation-ready status.
- In permanent OFF, MOD is not operative until MOD is switched to ON by "Settings" screen.
- In Bird's-Eye view, an enhanced boundary is displayed on the image indicating the invisible area and clearly indicating the boundary of the four cameras. The invisible area is displayed in yellow when Bird's-Eye view is displayed after the ignition switch is turned ON.
- If information of camera and information written to around view monitor control unit are not the same, error indicator of applicable camera position is displayed when Bird's-Eye view is displayed.
- When "CAMERA" switch is pressed, it receives camera switch signal from AV control unit via CAN communication.
- When around view monitor control unit receives camera switch signal around view monitor control unit reads the image signal from each camera.
- When around view monitor control unit receives reverse signal, while shift position is R position, around view monitor control unit reads image signal from each camera.
- When around view monitor control unit reads image signal from each camera, it cuts out the required screen for each view, superimposes camera image, vehicle icon, guiding lines, predicted course line, and "MOD" icon and then outputs them to AV control unit.
