Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

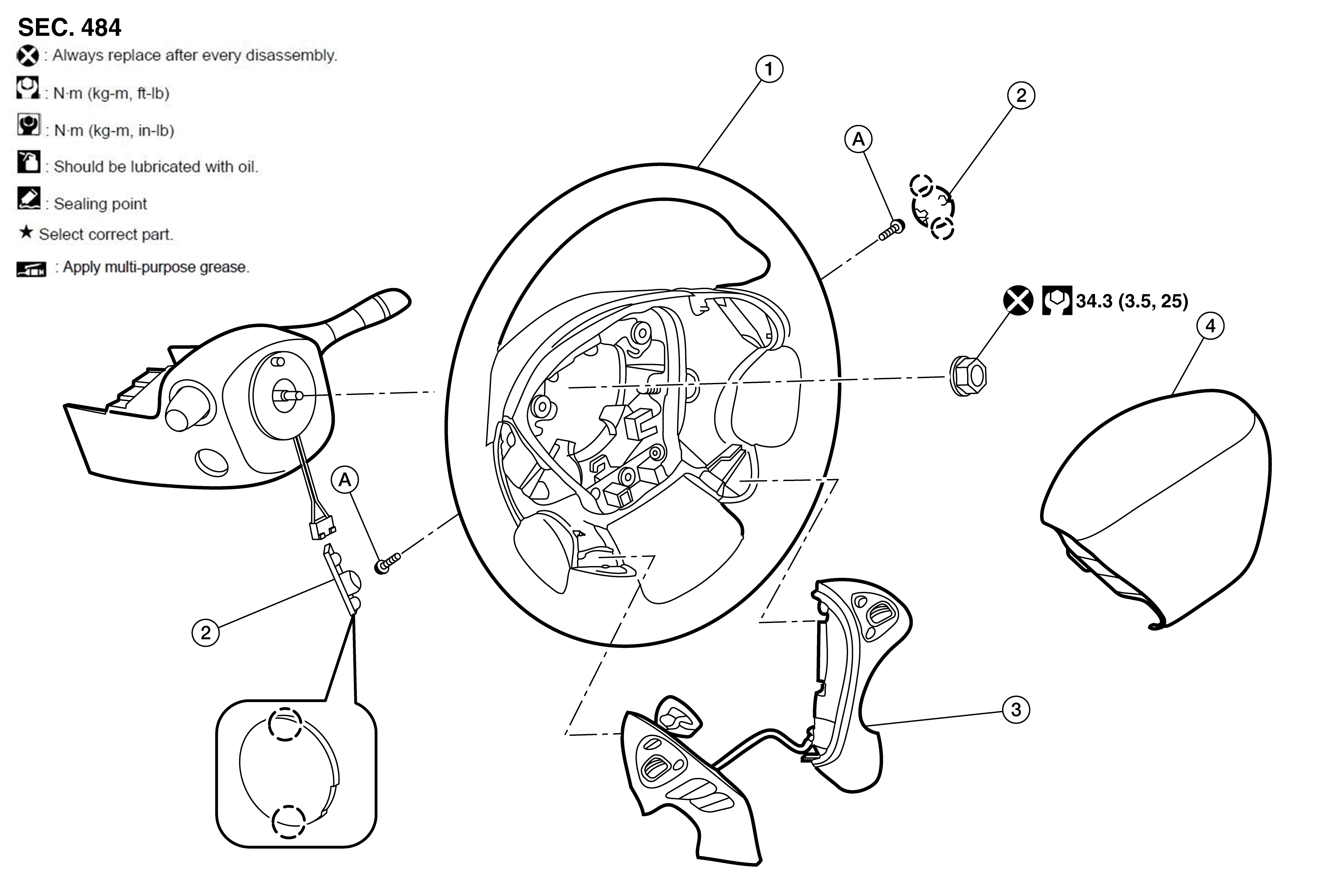

Fig 1: Exploded View Of ICC Steering Switch With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering Wheel	2.	Cover	3.	Steering Switches
4.	Driver Air Bag Module	A.	Refer to EXPLODED VIEW .	◦	Pawl
