Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

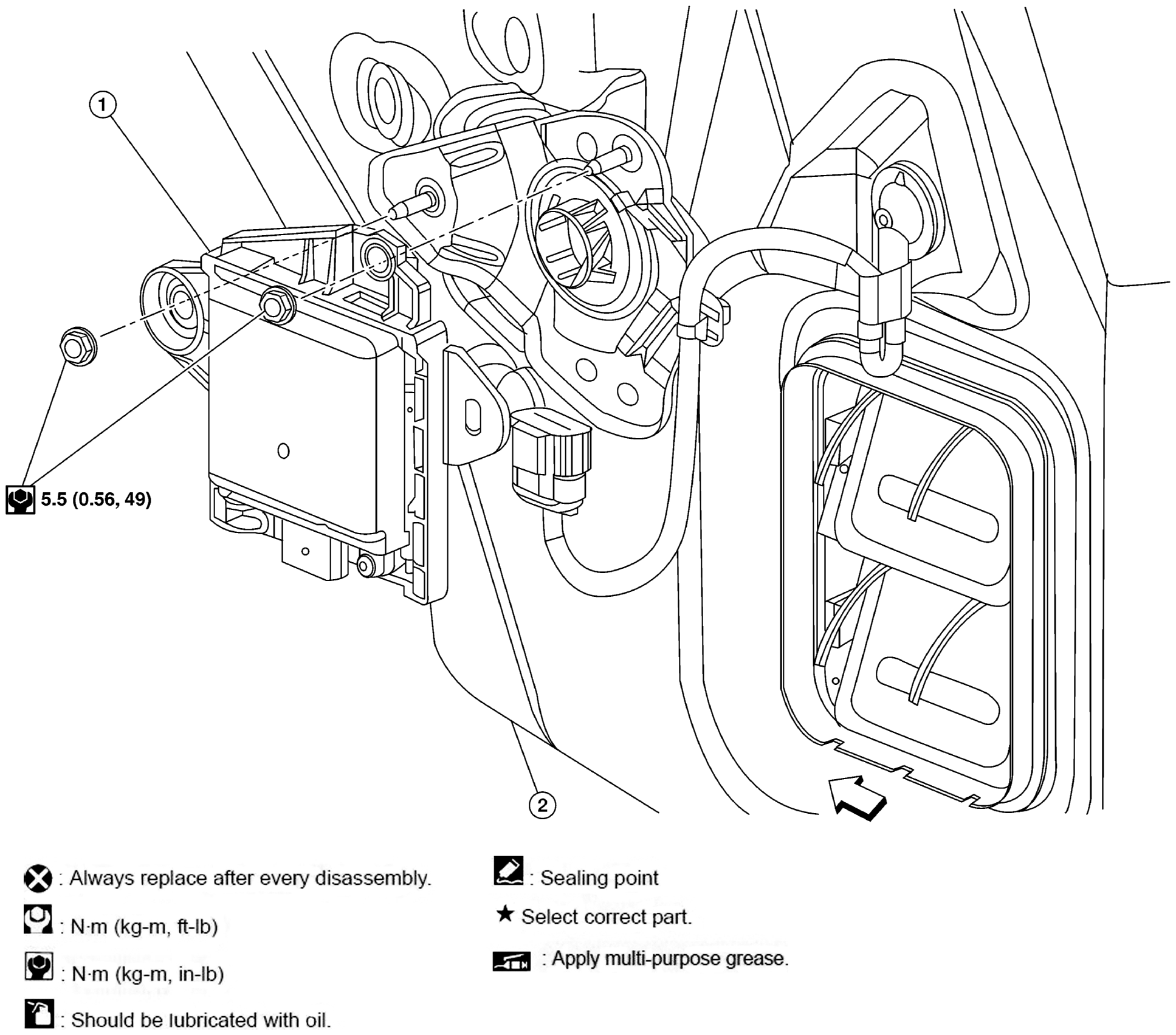

Fig 1: Exploded View Of Side Radar With Torque Specifications
GNSALOIA0283ZZ-283Courtesy of NISSAN NORTH AMERICA, INC.
1. Side Radar 2. Rear Fender Arrow Front
NOTE:

LH shown, RH similar.
