Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

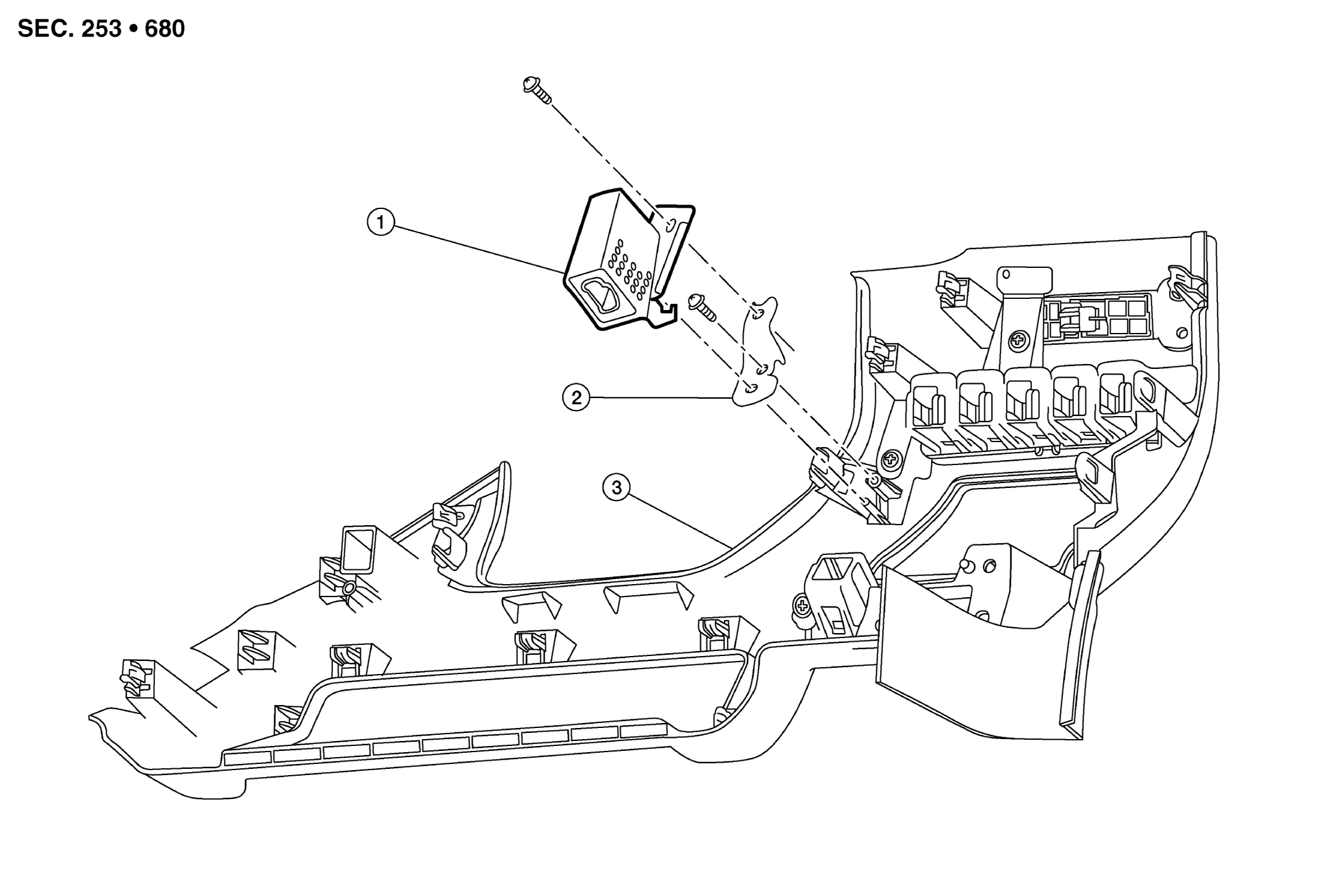

Fig 1: Exploded View Of Warning Buzzer
GNSALOIA0245ZZ-245Courtesy of NISSAN NORTH AMERICA, INC.
1. Warning Buzzer 2. Bracket 3. Instrument Lower Panel LH
