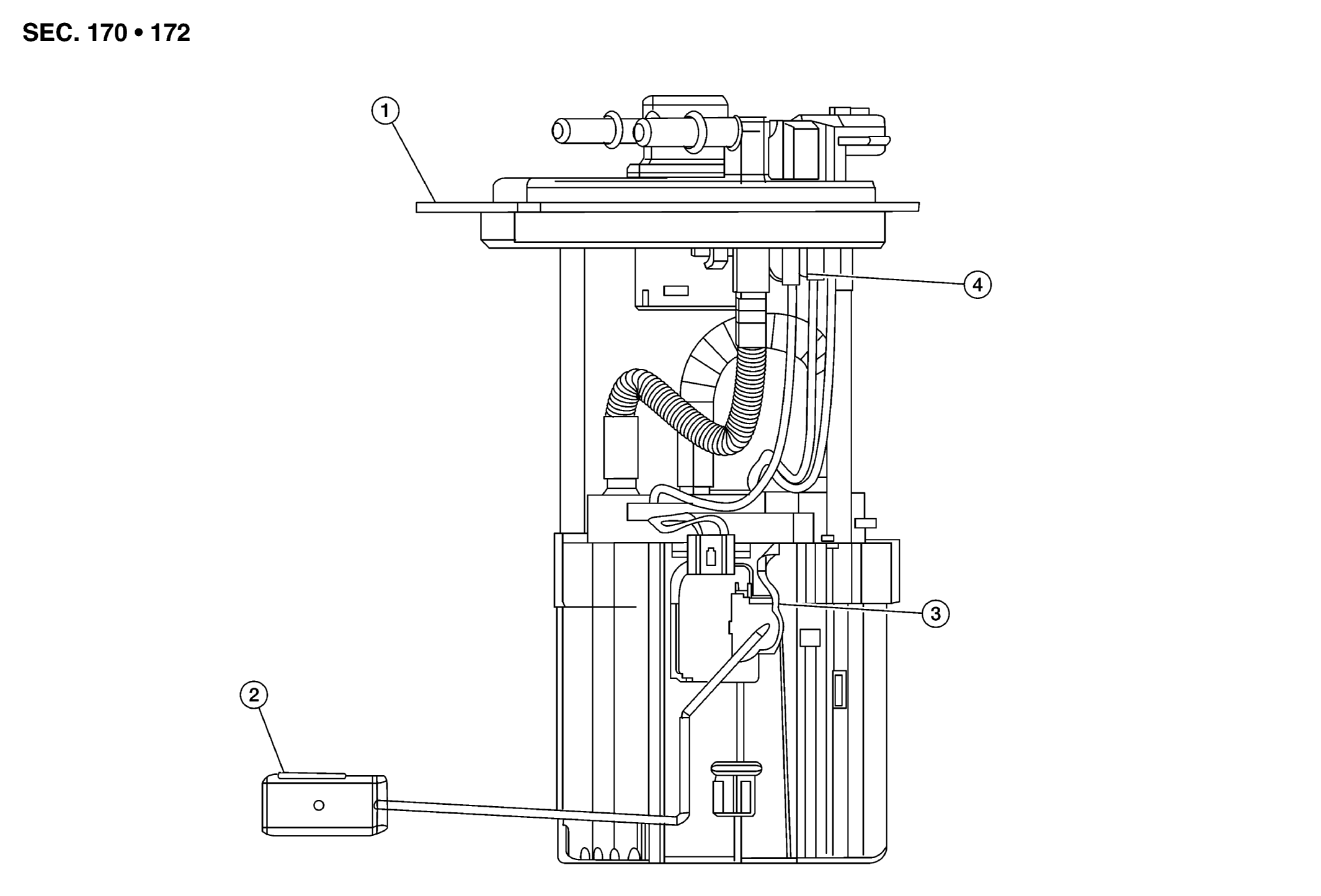

Exploded View With Torque Specifications
Fuel Level Sensor Unit
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fuel filter and pump assembly
2.
Float arm assembly
3.
Fuel level sensor unit
4.
Fuel level unit sensor harness connector
Courtesy of NISSAN NORTH AMERICA, INC.
