Exploded View With Torque Specifications
Fuel Level Sensor Unit

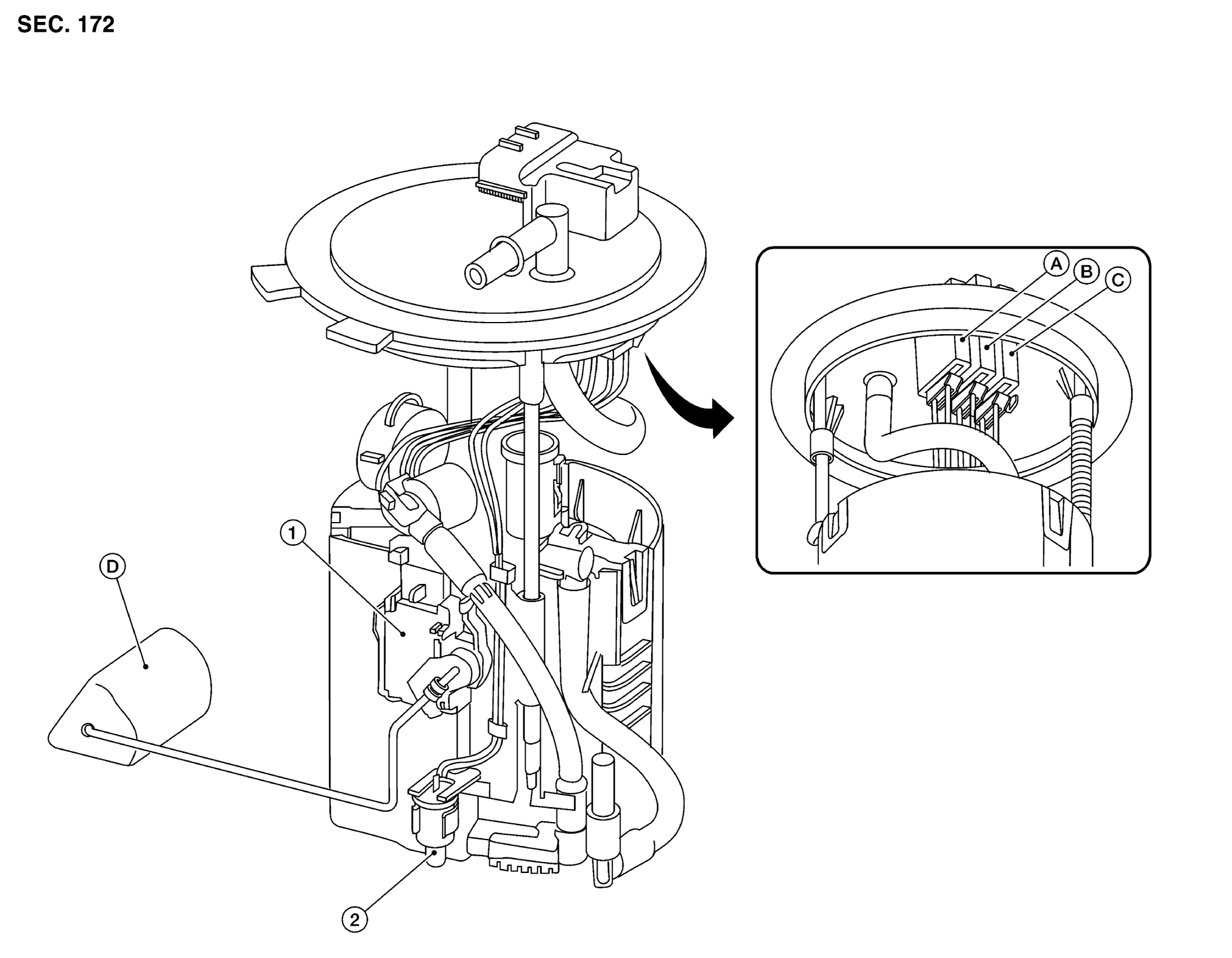

Fig 1: Fuel Level Sender Unit Components
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fuel Level Sensor Unit
2.
Fuel Tank Temperature Sensor
A.
Fuel level sensor unit harness connector.
B.
Fuel pump harness connector.
C.
Fuel tank temperature sensor harness connector.
D.
Float arm assembly.
