Component Location

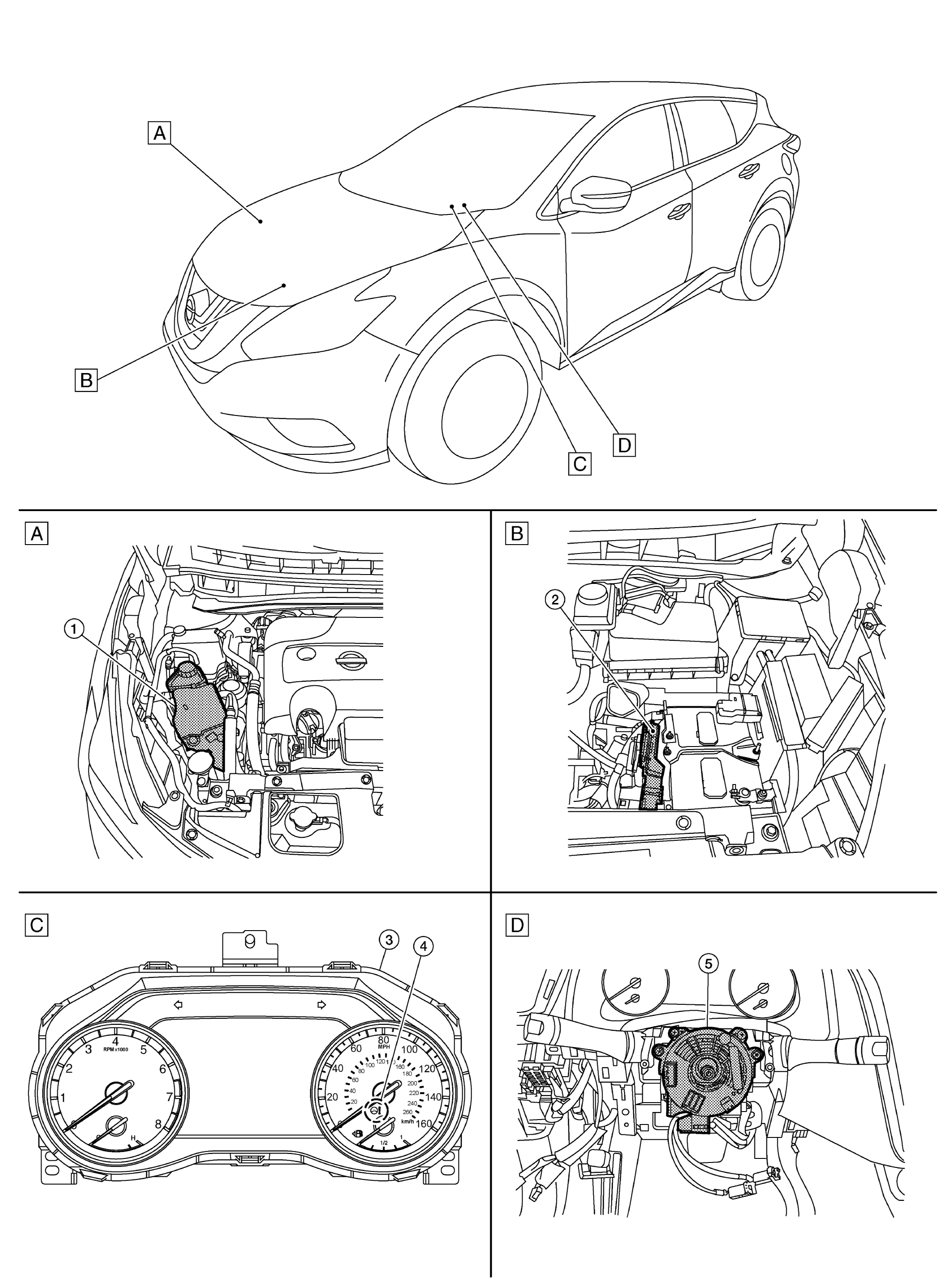

Fig 1: Steering Control System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

A.	Engine Room Right Side	B.	Engine Room Left Side	C.	Instrument Panel
D.	View With Heated Steering Wheel Removed

No.	Component		Function
1.	Power Steering Oil Pump Assembly	Reservoir tank	POWER STEERING OIL PUMP ASSEMBLY
		Power steering oil pump
		Power steering motor
		Power steering control module
2.	ECM		Transmits mainly the following signal to power steering control module via CAN communication: Engine status signal Refer to COMPONENT LOCATION for detailed installation location.
3.	Combination Meter		Transmits mainly the following signal to power steering control module via CAN communication: Vehicle speed signal Refer to COMPONENT LOCATION for detailed installation location.
3.	Combination Meter		The hydraulic pump electric power steering system warning lamp turns ON according to the signal received by CAN communication from the power steering control module.
4.	Hydraulic Pump Electric Power Steering System Warning Lamp (In Combination Meter)		SYSTEM DESCRIPTION
5.	Steering Angle Sensor		Transmits mainly the following signal to power steering control module via CAN communication: Steering angle sensor signal
