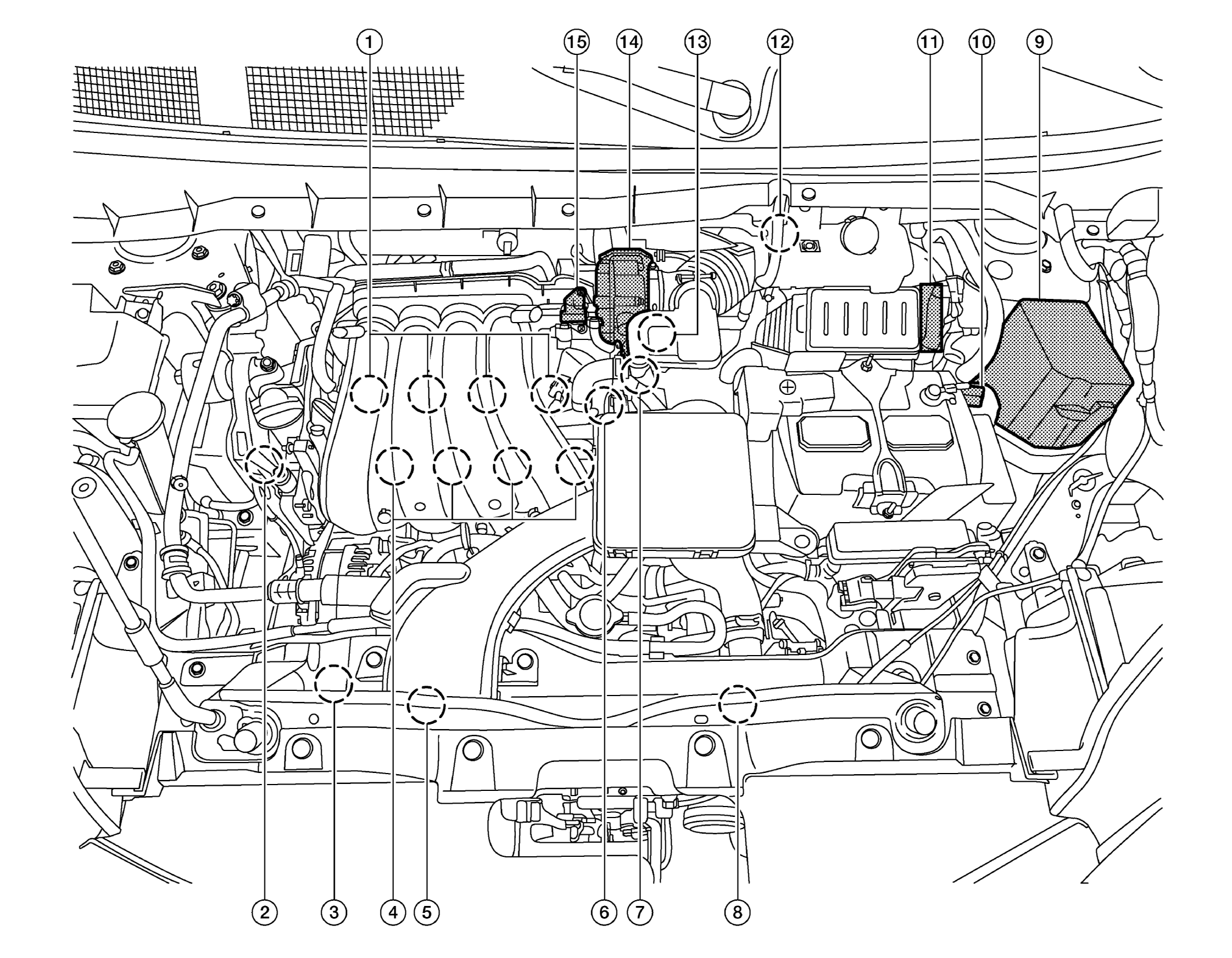

Engine Room Compartment
| No. | Component | Function |
|---|---|---|
| Ignition coil (with power transistor) |
IGNITION COIL WITH POWER TRANSISTOR | |
| Intake valve timing control solenoid valve | INTAKE VALVE TIMING CONTROL SOLENOID VALVE | |
| Refrigerant pressure sensor | REFRIGERANT PRESSURE SENSOR | |
| Fuel injector | FUEL INJECTOR | |
| Cooling fan motor-2 | COOLING FAN | |
| Camshaft position sensor (PHASE) | CAMSHAFT POSITION SENSOR (PHASE) | |
| Engine coolant temperature sensor | ENGINE COOLANT TEMPERATURE SENSOR | |
| Cooling fan motor-1 | COOLING FAN | |
| IPDM E/R | IPDM E/R control the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. |
|
| Battery current sensor | BATTERY CURRENT SENSOR | |
| ECM | ECM | |
| Mass air flow sensor (with intake air temperature sensor) |
MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) | |
| EVAP service port | EVAP service port is prepared in order to perform evaporative emission system leak check. | |
| Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
ELECTRIC THROTTLE CONTROL ACTUATOR | |
| EVAP canister purge volume control solenoid valve | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE |
