Exploded View With Torque Specifications

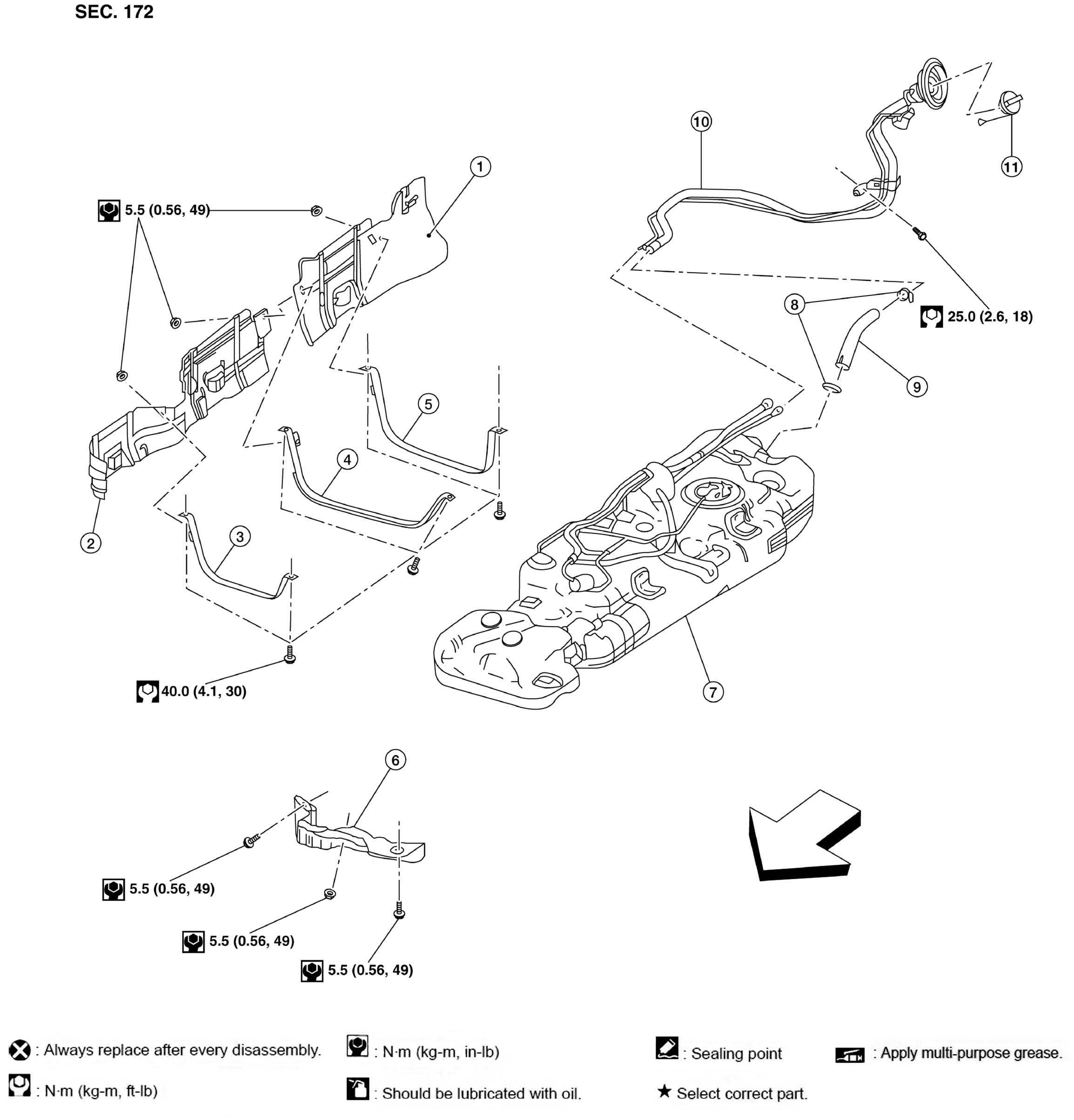

Fig 1: Fuel Tank With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fuel tank protector 3
2.
Fuel tank protector 2
3.
Fuel tank mounting strap 1
4.
Fuel tank mounting strap 2
5.
Fuel tank mounting strap 3
6.
Fuel tank protector 1
7.
Fuel tank
8.
Clamp
9.
Fuel filler hose
10.
Fuel filler tube
11.
Fuel filler cap
Front
