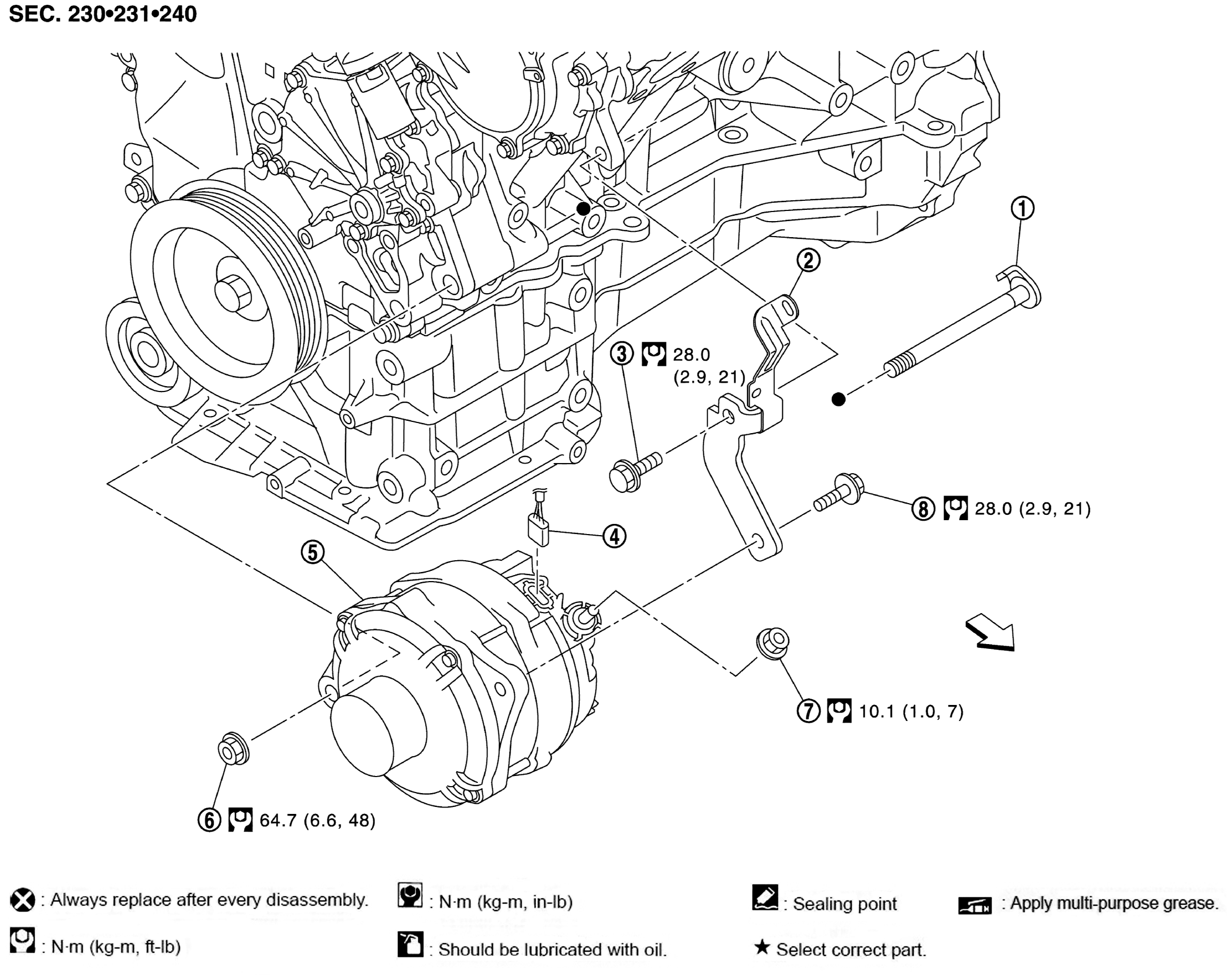

Exploded View With Torque Specifications: Removal
| 1. | Alternator mounting bolt (lower) | 2. | Alternator bracket | 3. | Alternator bracket mounting bolt |
| 4. | Alternator harness connector | 5. | Alternator | 6. | Alternator mounting nut (lower) |
| 7. | "B" terminal harness nut | 8. | Alternator mounting bolt (upper) | ||
| : Vehicle front | |||||
| : N•m (kg-m, ft-lb) | |||||
| : indicates that the part is connected at points with same symbol in actual vehicle. | |||||
