Exploded View With Torque Specifications

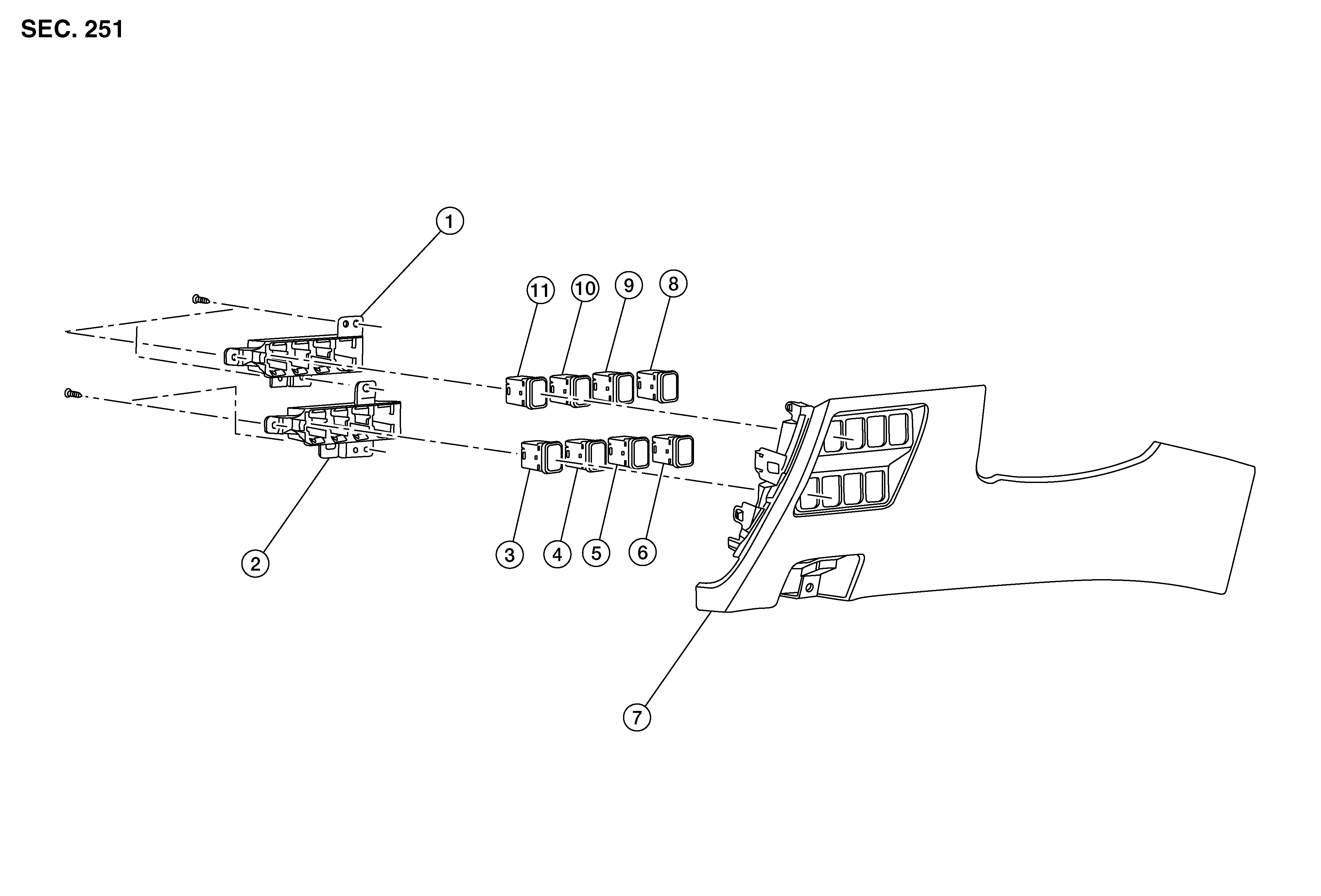

Fig 1: Exploded View Of Warning Systems Switch

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper switch carrier	2.	Lower switch carrier	3.	ECO mode switch
4.	Warning system switch	5.	AWD lock switch (if equipped)	6.	Hill descent control switch (if equipped)
7.	Instrument lower panel LH	8.	Automatic back door main switch (if equipped)	9.	Automatic back door switch (if equipped)
10.	SPORT mode switch	11.	VDC OFF switch
