Body Compartment

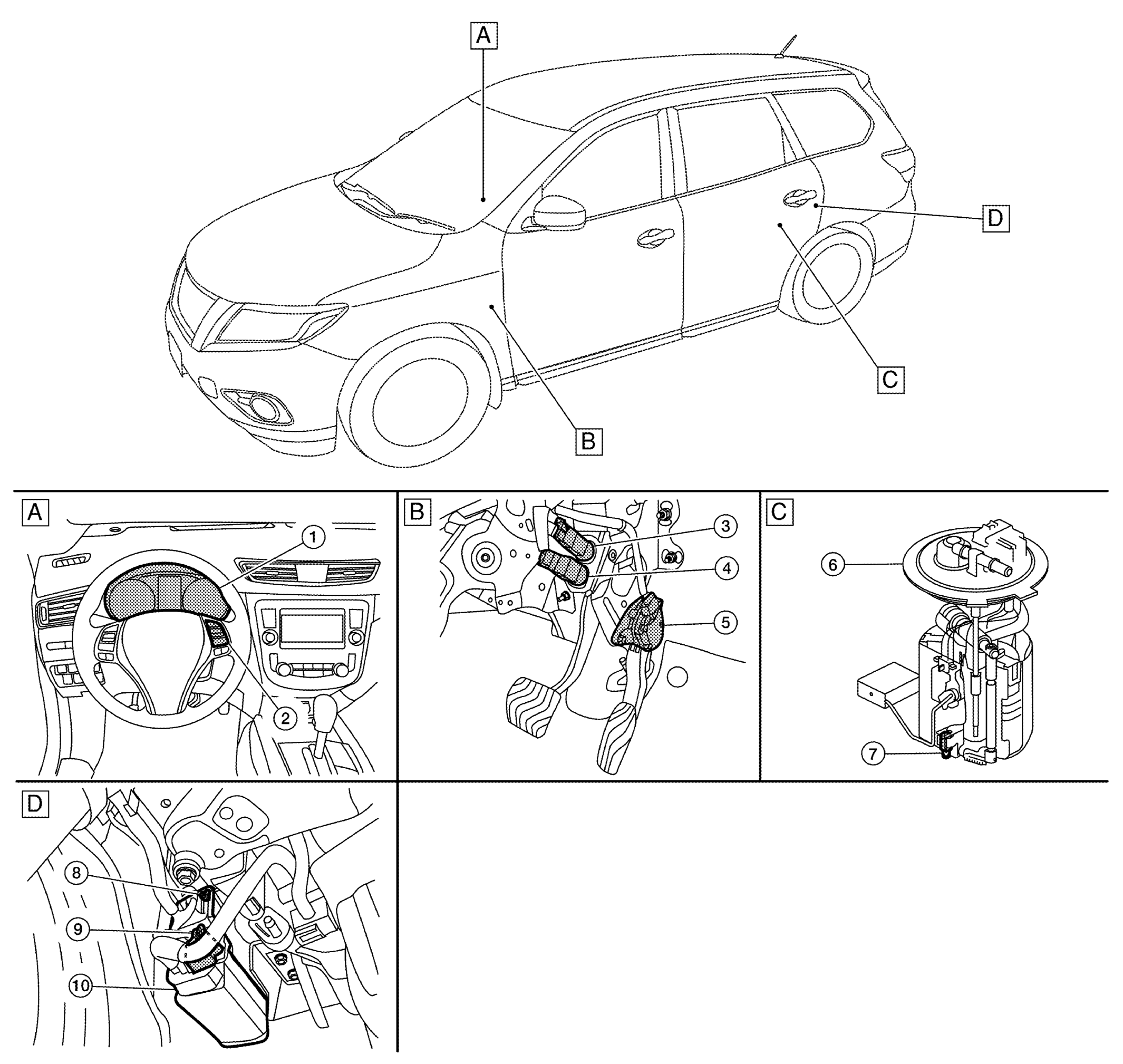

Fig 1: Body Compartment Components Location
GNSALBIA1181ZZ-181Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Instrument panel area WZ-B Periphery of pedals WZ-C Inside fuel tank area
WZ-D Behind fuel tank
ARROW : Vehicle front
No. Component Function
WHITE-1 Combination meter Malfunction indicator lamp (MIL) MALFUNCTION INDICATOR LAMP (MIL)
Information display INFORMATION DISPLAY
WHITE-2 ASCD steering switch ASCD STEERING SWITCH
WHITE-3 Stop lamp switch STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH
WHITE-4 Brake pedal position switch
WHITE-5 Accelerator pedal position sensor ACCELERATOR PEDAL POSITION SENSOR
WHITE-6 Fuel level sensor unit and fuel pump FUEL LEVEL SENSOR UNIT AND FUEL PUMP
WHITE-7 Fuel tank temperature sensor FUEL TANK TEMPERATURE SENSOR
WHITE-8 EVAP control system pressure sensor EVAP CONTROL SYSTEM PRESSURE SENSOR
WHITE-9 EVAP canister vent control valve EVAP CANISTER VENT CONTROL VALVE
WHITE-10 EVAP canister EVAP CANISTER
