Exploded View With Torque Specifications

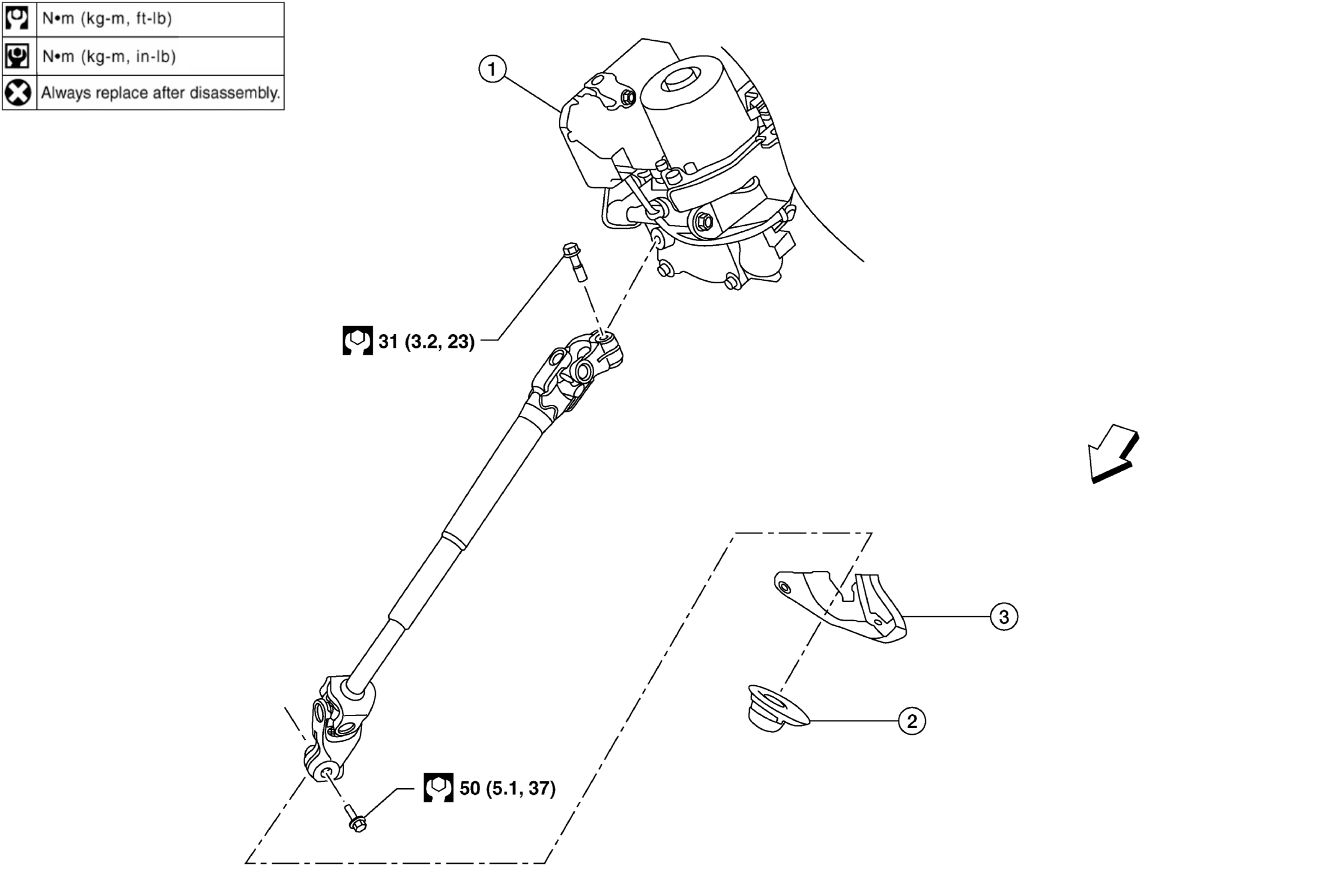

Fig 1: Exploded View Of Steering Column Lower Joint With Torque Specifications
GNSALGIA0241ZZ-241Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. Lower cover seal 3. Column hole cover
ARROW Front
