Exploded View With Torque Specifications

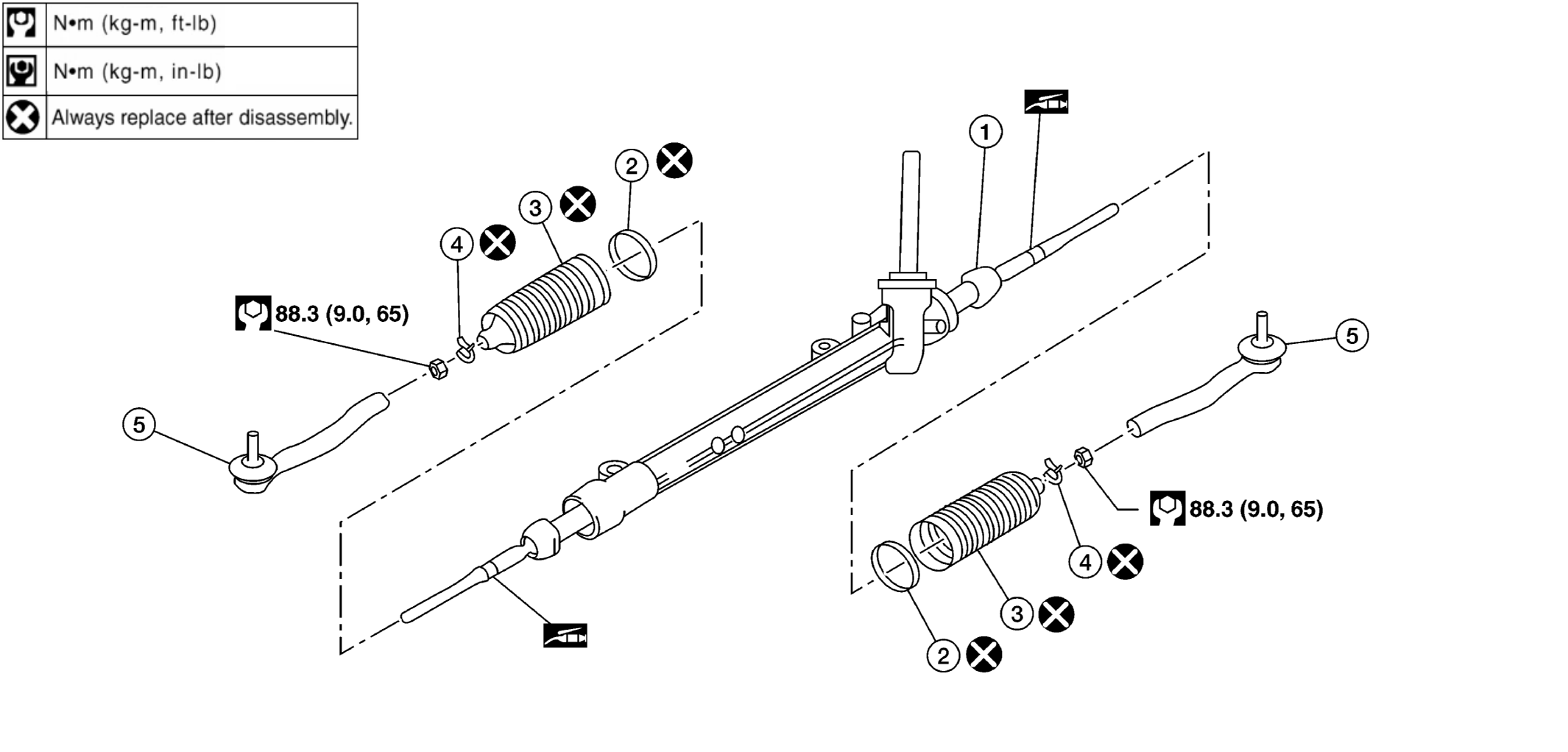

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
GNSAWGIA0390ZZ-390Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering gear 2. Large boot clamp 3. Boot
4. Small boot clamp 5. Outer socket
