Exploded View With Torque Specifications

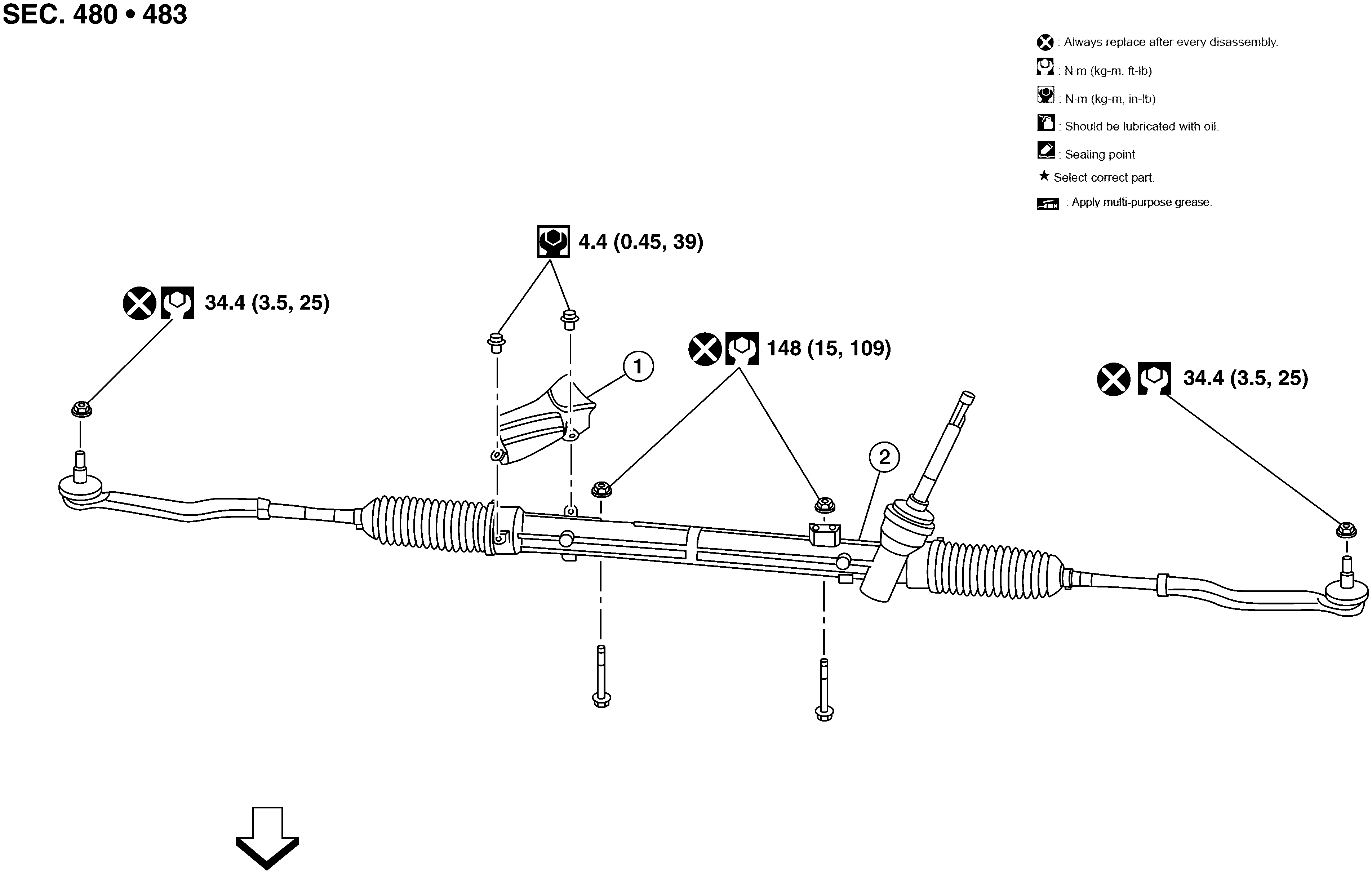

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
GNSALGIA0391ZZ-391Courtesy of NISSAN NORTH AMERICA, INC.
1. Heat insulator 2. Steering gear ARROW Front
