Component Parts Location

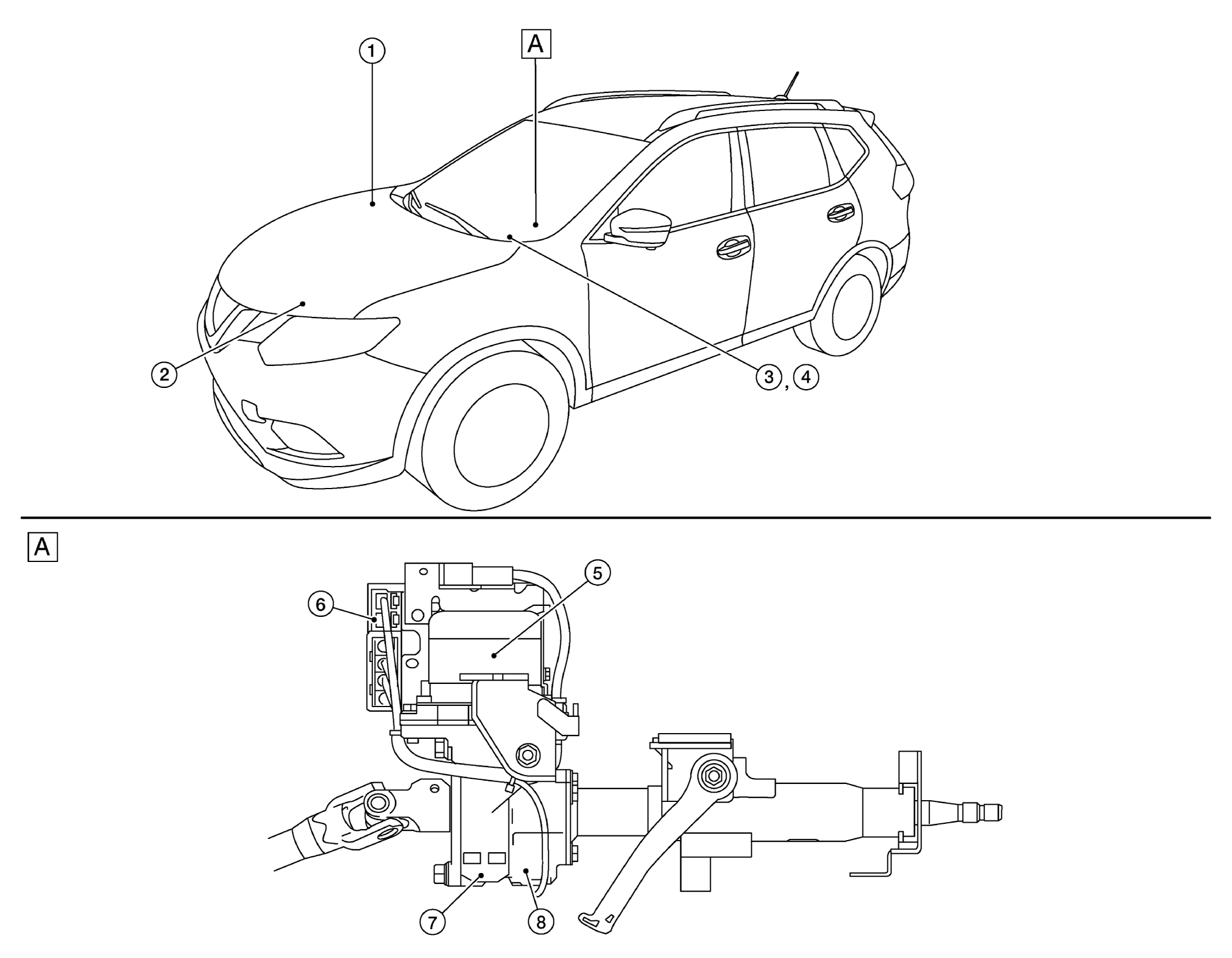

Fig 1: Steering Control System Component Parts Location
GNSALGIA0191ZZ-191Courtesy of NISSAN NORTH AMERICA, INC.
A. Steering column assembly
No. Component Function
1. ABS actuator and electric unit (control unit)
  • Transmits the following signal to EPS control unit via CAN communication:
    • Vehicle speed signal (ABS)
2. ECM
  • Transmits the following signal to EPS control unit via CAN communication:
    • Engine status signal
3. Combination meter
  • Transmits the following signal to EPS control unit via CAN communication:
    • Vehicle speed signal (Meter)
  • Turns ON the EPS warning lamp according to the signal from EPS control unit via CAN communication.
4. EPS warning lamp SYSTEM DESCRIPTION
5. EPS motor EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR
6. EPS control unit EPS CONTROL UNIT
7. Reduction gear EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR
8. Torque sensor EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR
