System Diagram

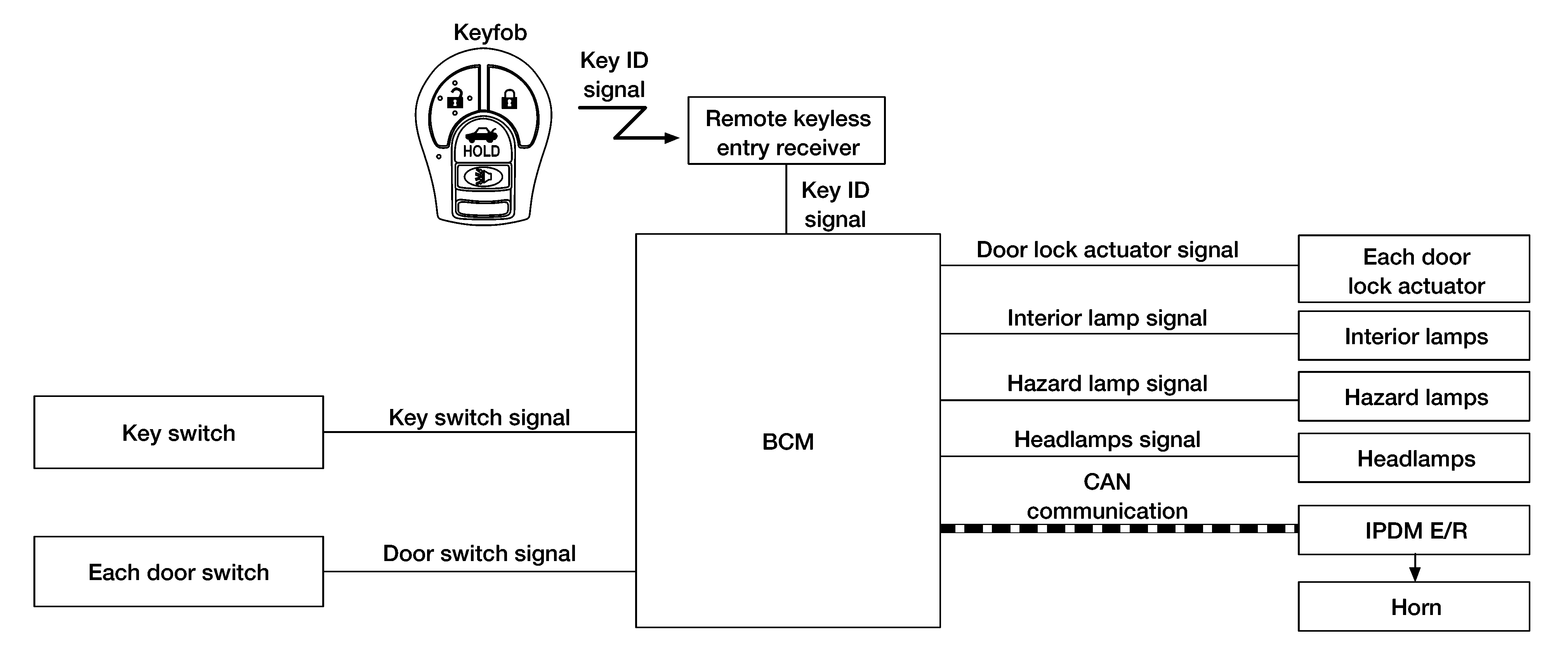

Fig 1: Remote Keyless Entry System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
