Physical Values

Terminal
(Wire color)		 Description Condition Reference value
(Approx.)
+ - Signal name Input/Output Ignition switch Operation
2
(L)		 3
(P)		 Sound signal front speaker LH Output ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
4
(LG)		 5
(SB)		 Sound signal rear speaker LH Output ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
7
(L)		 Ground ACC power supply Input ACC - Battery voltage
9
(V)		 8
(GR)		 Illumination control signal Input ON Headlamps ON Battery voltage
11
(G)		 12
(R)		 Sound signal front speaker RH Output ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
13
(BR)		 14
(Y)		 Sound signal rear speaker RH Output ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.

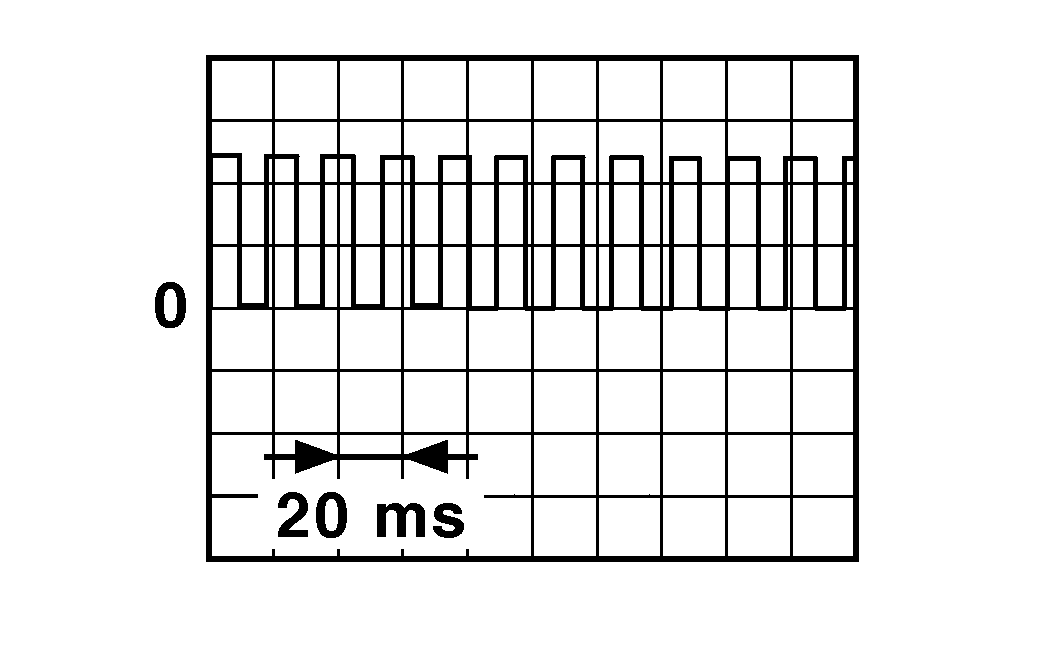

18
(Y)		 Ground Vehicle speed signal Input ON When vehicle speed is approx. 40 km/h (25 MPH)
GNSJSNIA0012GB-012Courtesy of NISSAN NORTH AMERICA, INC.
19
(Y)		 Ground Battery power supply Input OFF - Battery voltage
20
(B)		 Ground Ground - ON - 0 V
21
(Shield)		 - Camera shield - - - -

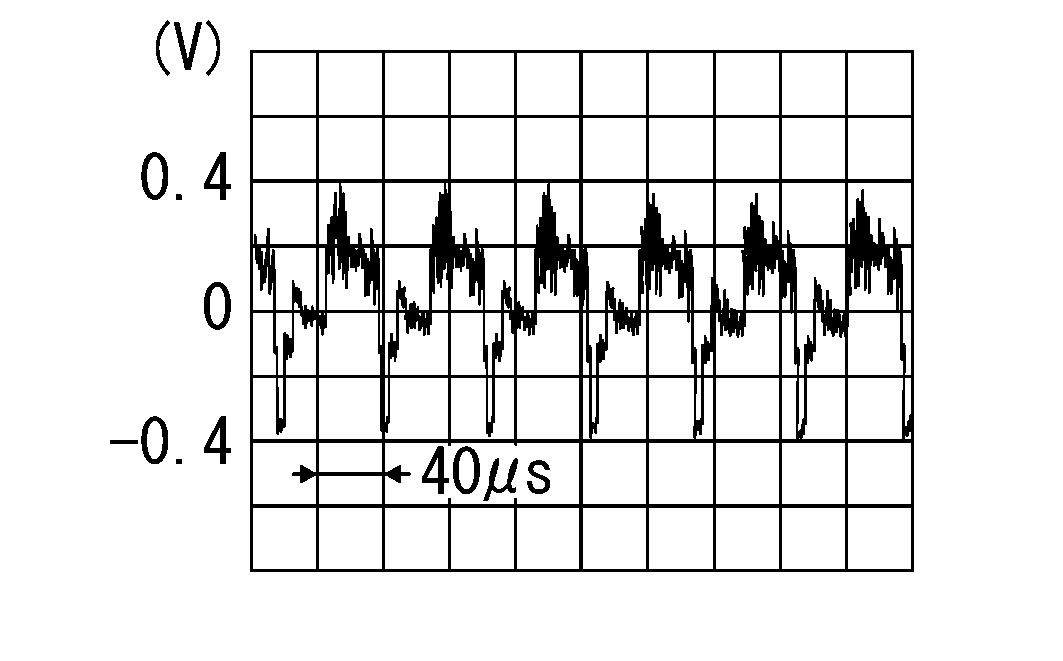

22
(V)		 Ground Camera image signal Input ON When camera image is displayed
G00498910Courtesy of NISSAN NORTH AMERICA, INC.
23
(LG)		 Ground Camera power supply Output ON When camera image is displayed 6.0 V
Except for above 0 V
24
(L)		 Ground Camera ground - ON - 0 V
25
(LG)		 - AV communication low Input/Output - - -
26
(SB)		 - AV communication high Input/Output - - -
28
(LG)		 - AV communication low Input/Output - - -
29
(SB)		 - AV communication high Input/Output - - -
34
(Y)		 - SIRI ON/OFF Input - - -
39
(G)		 Ground Reverse signal Input ON Selector lever in R (reverse) Battery voltage
Selector lever in any position other than R (reverse) 0 V
42
(B)		 Ground EQ03 Ground - ON - 0 V
45
(B)		 - CAM DET Input ON - -
51
(R)		 - MIC VCC Input ON - -
52
(G)		 50
(Shield)		 Microphone signal Input ON While speaking into microphone.
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
53
(B)		 - USB ground - - - -
55
(G)		 - USB D +signal - - - -
56
(W)		 - USB D - signal - - - -
57
(R)		 - V BUS signal - - - -
58
(Shield)		 - Shield - - - -
59
(Shield)		 - AUX shield - - - -
60
(G)		 Ground AUX ground - ON - 0V
61
(L)		 Ground AUX jack audio signal RH Input Ignition switch ON Received audio signal (AUX input)
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
62
(Y)		 Ground AUX jack audio signal LH Input Ignition switch ON Received audio signal (AUX input)
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
67
(B)		 Ground Antenna amp. ON signal Output ON - Battery voltage
68
(B)		 Ground AM/FM antenna signal Input ON - 5.0 V
69
(Shield)		 - Antenna shield - - - -
72
(B)		 Ground Satellite antenna signal Input ON - 5.0 V
73
(Shield)		 - Satellite antenna shield - - - -
