Av Control Unit: Description

A 5.8-inch WVGA display, an AM/FM electronic tuner radio, CD drive and navigation unit are integrated into the AV control unit.

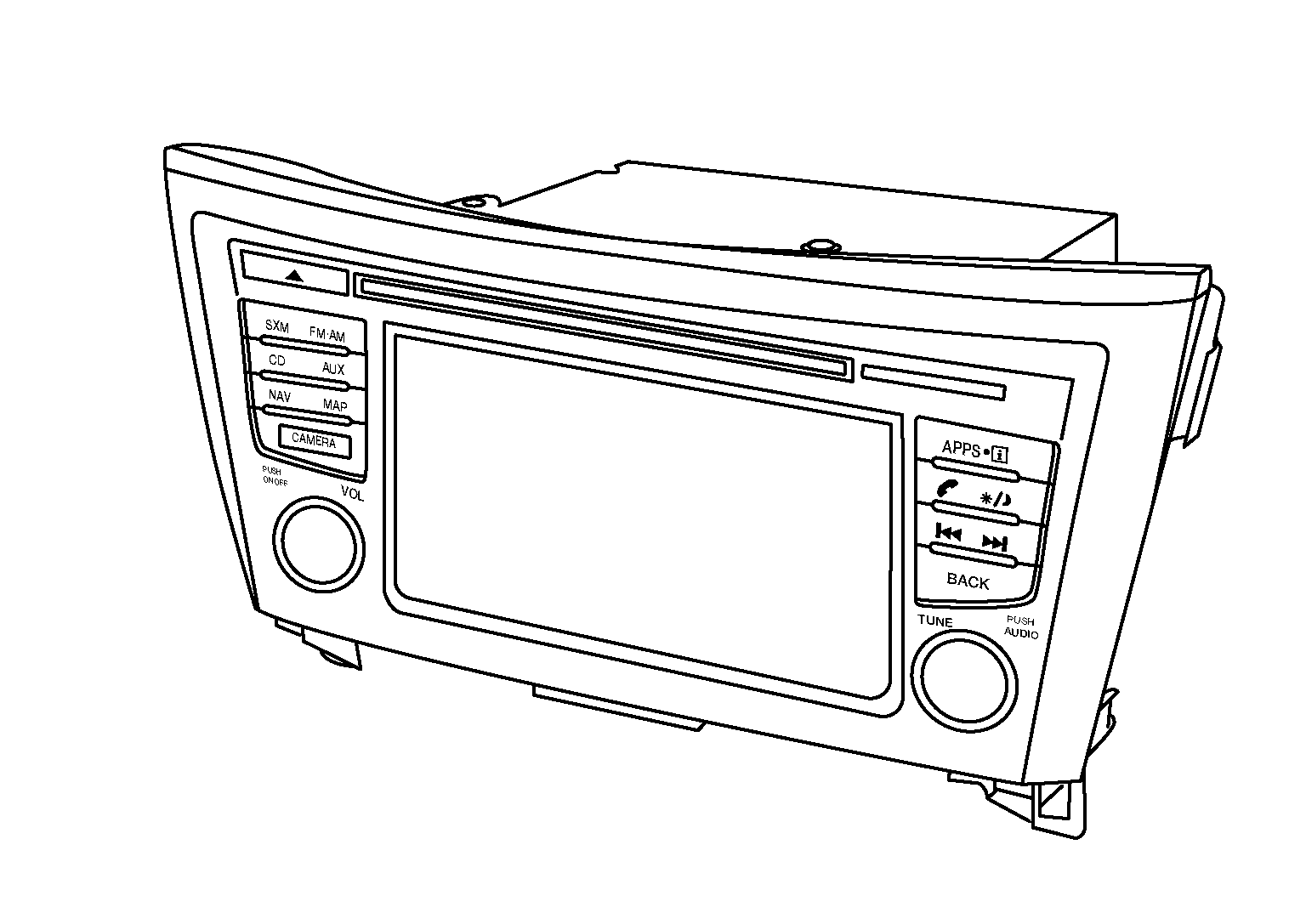

Fig 1: AV Control Unit
Courtesy of NISSAN NORTH AMERICA, INC.
AV control unit is connected to TCU with the USB harness, and signals necessary for Telematics function and NISSAN CONNECT^SM function are sent and received.
