Hardware/Software Versions And Speaker Channel Check

  1. Turn the ignition ON.
  2. Turn the audio system OFF.
  3. While pressing the preset 1 button, turn the volume control dial clockwise or counterclockwise 30 clicks or more.

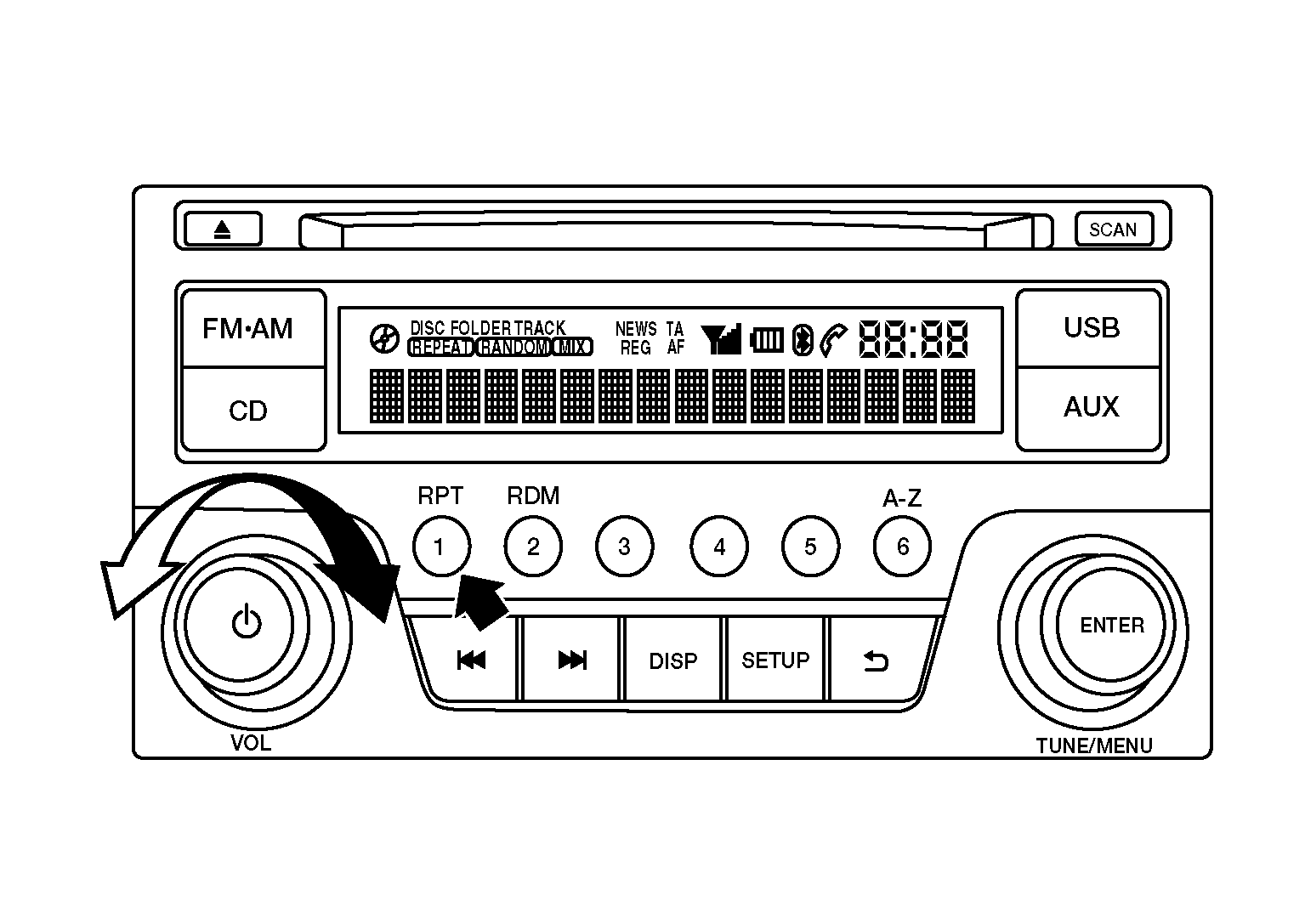

    Fig 1: Preset 1 Button, Turn Volume Control Dial Clockwise Or Counterclockwise 30 Clicks
    GNSALNIA1709GB-709Courtesy of NISSAN NORTH AMERICA, INC.
  4. Initially, all display segments will be illuminated.
    Fig 2: Display Segments
    G08687000Courtesy of NISSAN NORTH AMERICA, INC.
  5. To exit hardware/software versions and speaker channel check, turn the ignition OFF.
