Camera System

This mode is used to adjust the guide line display position of the rear view camera.

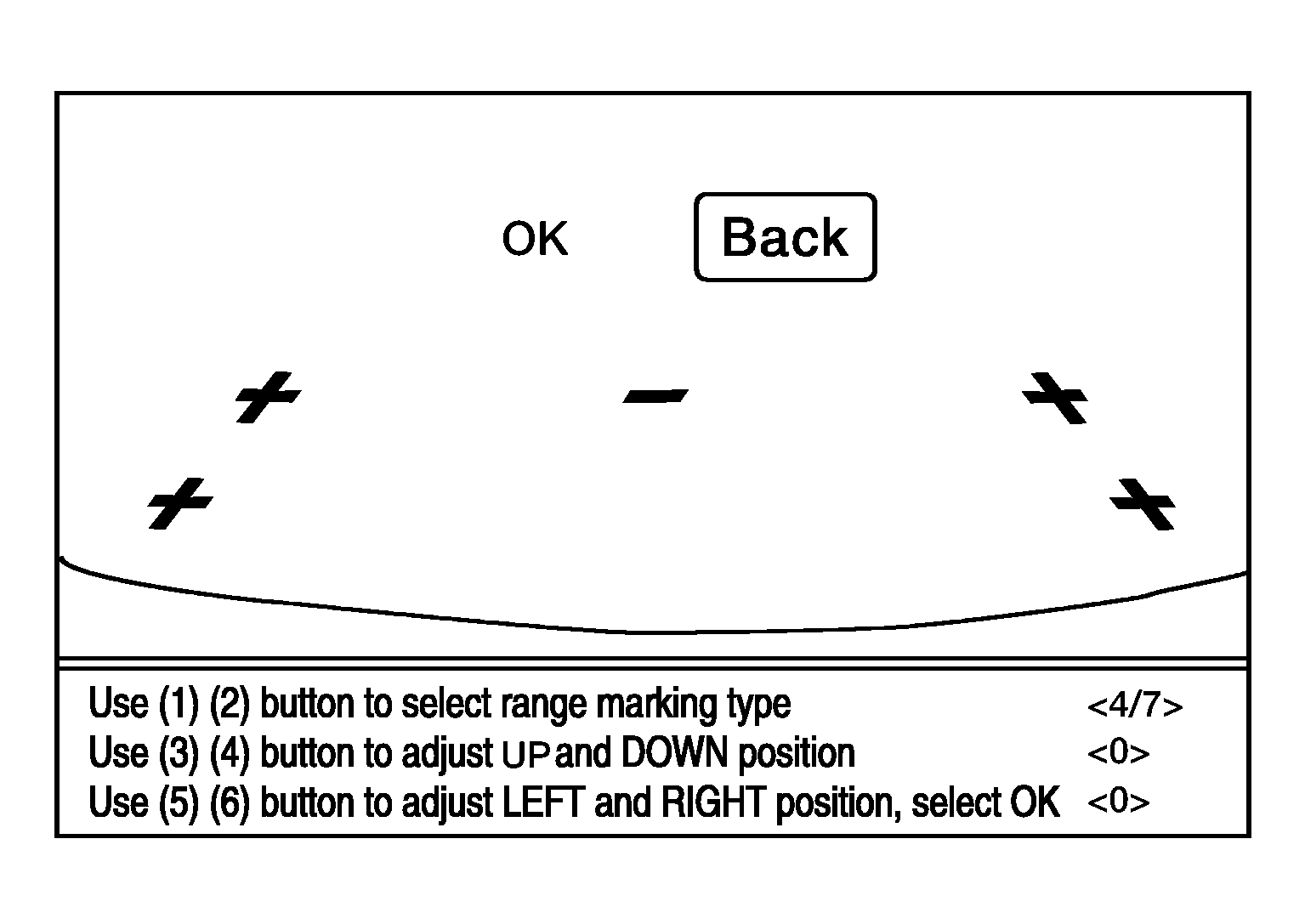

Fig 1: Rear View Camera Adjustment Screen Display
G08689801Courtesy of NISSAN NORTH AMERICA, INC.
