Overall Sequence

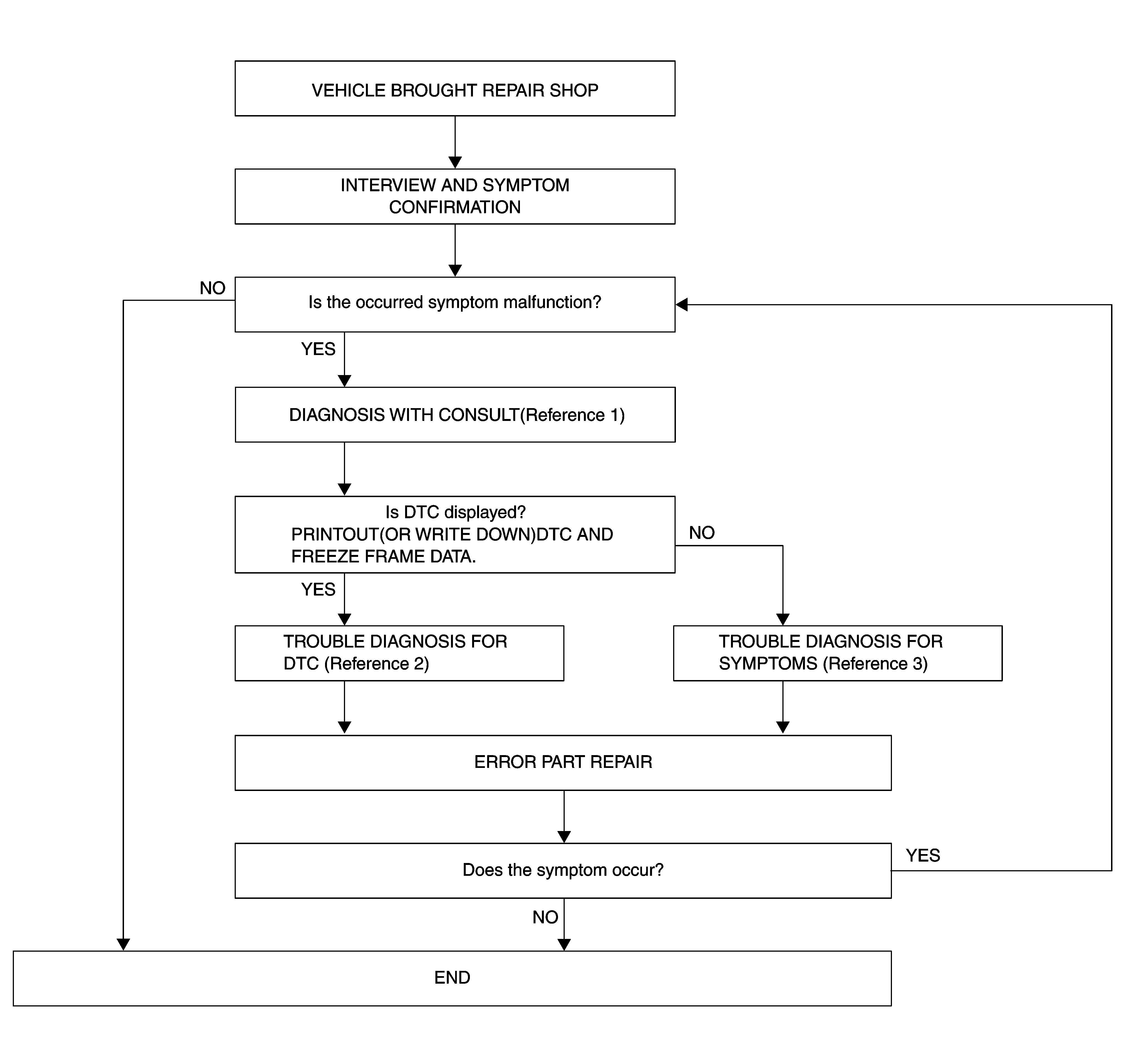

Fig 1: Diagnosis And Repair Work Flow Chart

G08110871

Courtesy of NISSAN NORTH AMERICA, INC.

Reference 1••• Refer to CONSULT FUNCTION .
Reference 2••• Refer to DTC INDEX .
Reference 3••• Refer to SYMPTOM TABLE .
