Exploded View With Torque Specifications

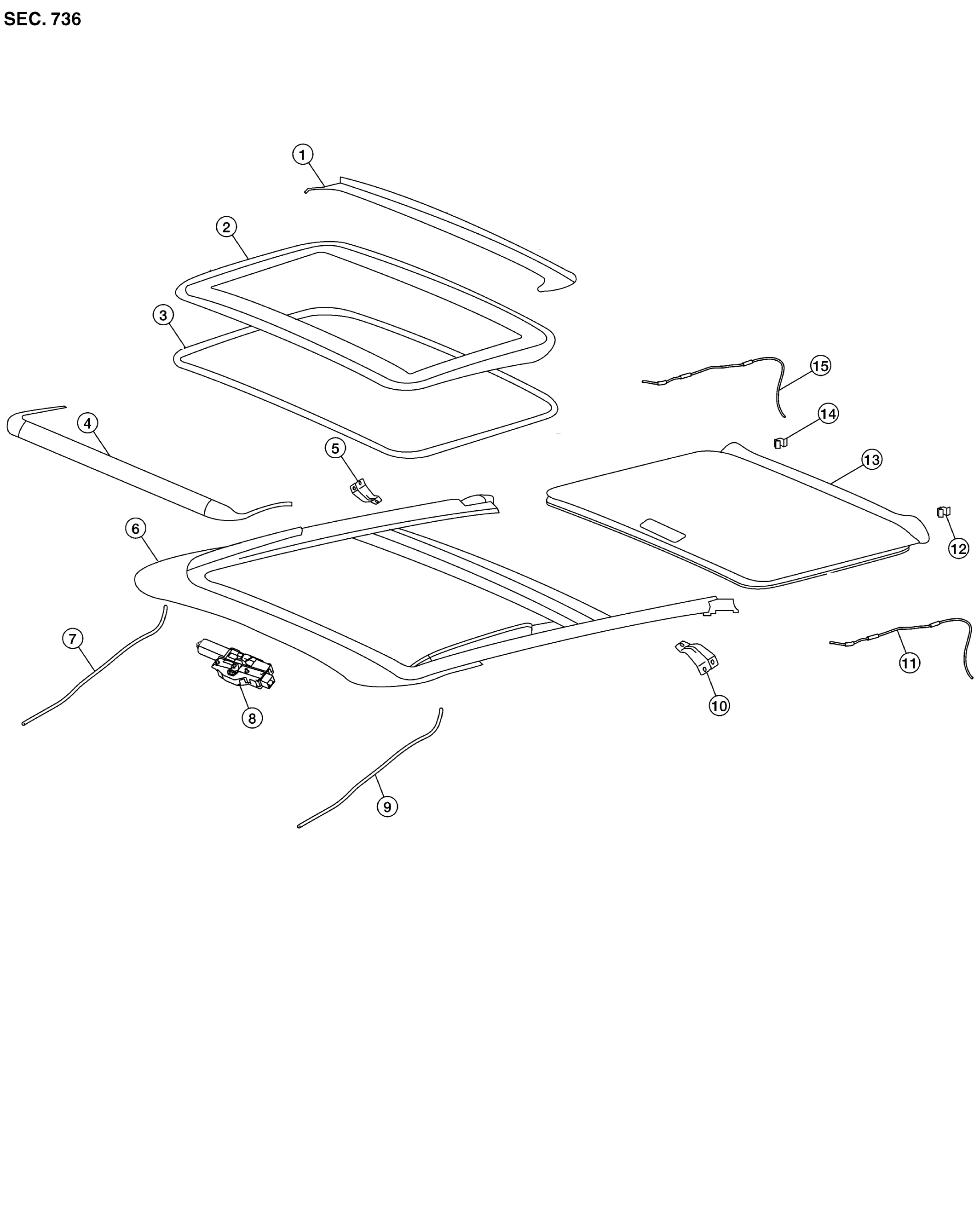

Fig 1: Exploded View Of Monrovia Unit Assembly

GNSALKIA2981ZZ-981

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Drain assembly	2.	Glass lid	3.	Weatherstrip
4.	Wind deflector	5.	Side bracket (RH)	6.	Monrovia rail assembly
7.	Drain hose front (RH)	8.	Monrovia motor assembly	9.	Drain hose front (LH)
10.	Side bracket (LH)	11.	Drain hose rear (LH)	12.	Sunshade stopper (LH)
13.	Sunshade	14.	Sunshade stopper (RH)	15.	Drain hose rear (RH)
