Exploded View With Torque Specifications

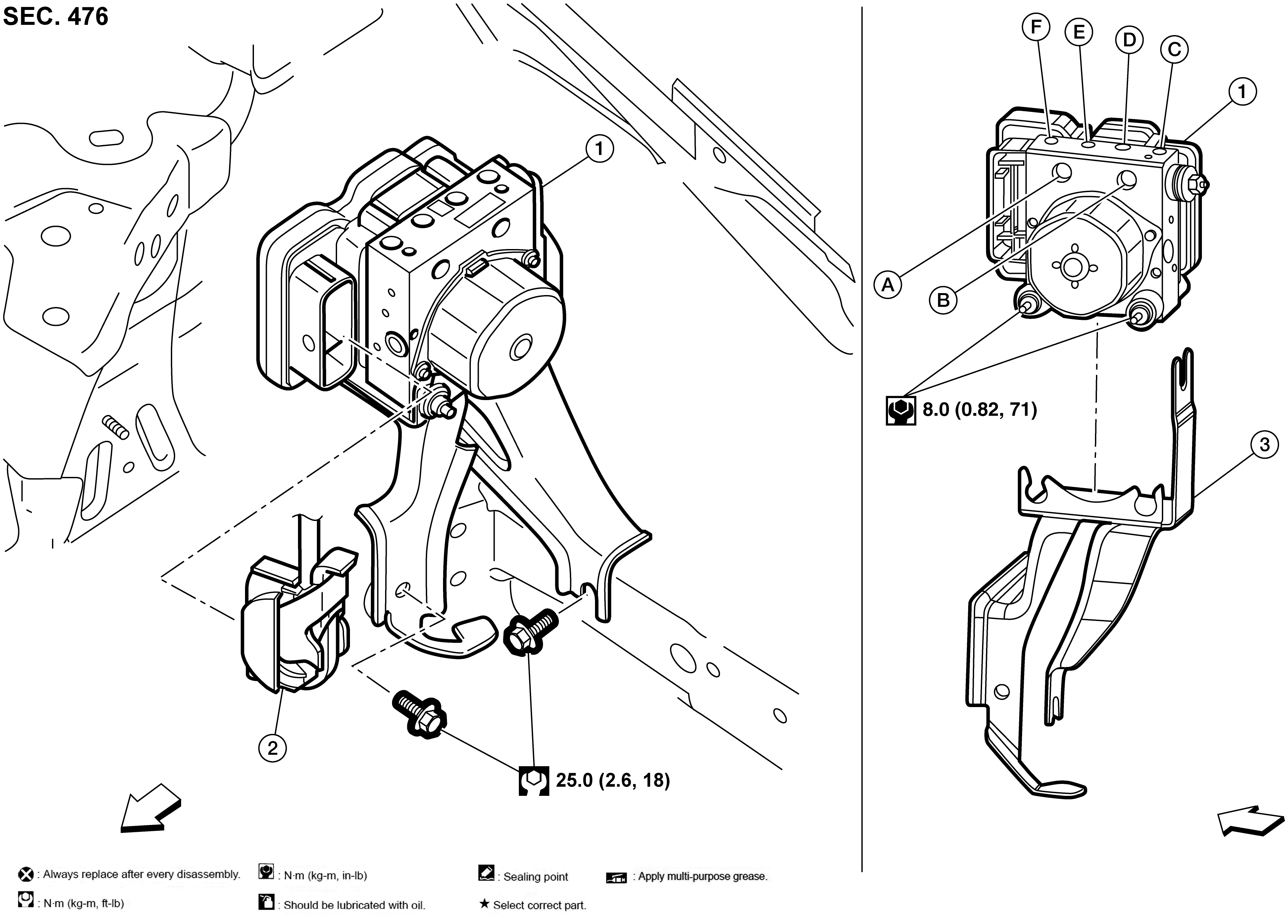

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
GNSAWFIA1230ZZ-230ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. ABS actuator and electric unit (control unit) 2. Harness connector 3. Bracket
A. From master cylinder secondary side B. From master cylinder primary side C. To rear LH brake caliper or wheel cylinder
D. To front RH brake caliper E. To front LH brake caliper F. To rear RH brake caliper or wheel cylinder
ARROW Front
