Diagnostic Test

1. Turn ignition switch ON.
2. Pinch fuel feed hose with two fingers.

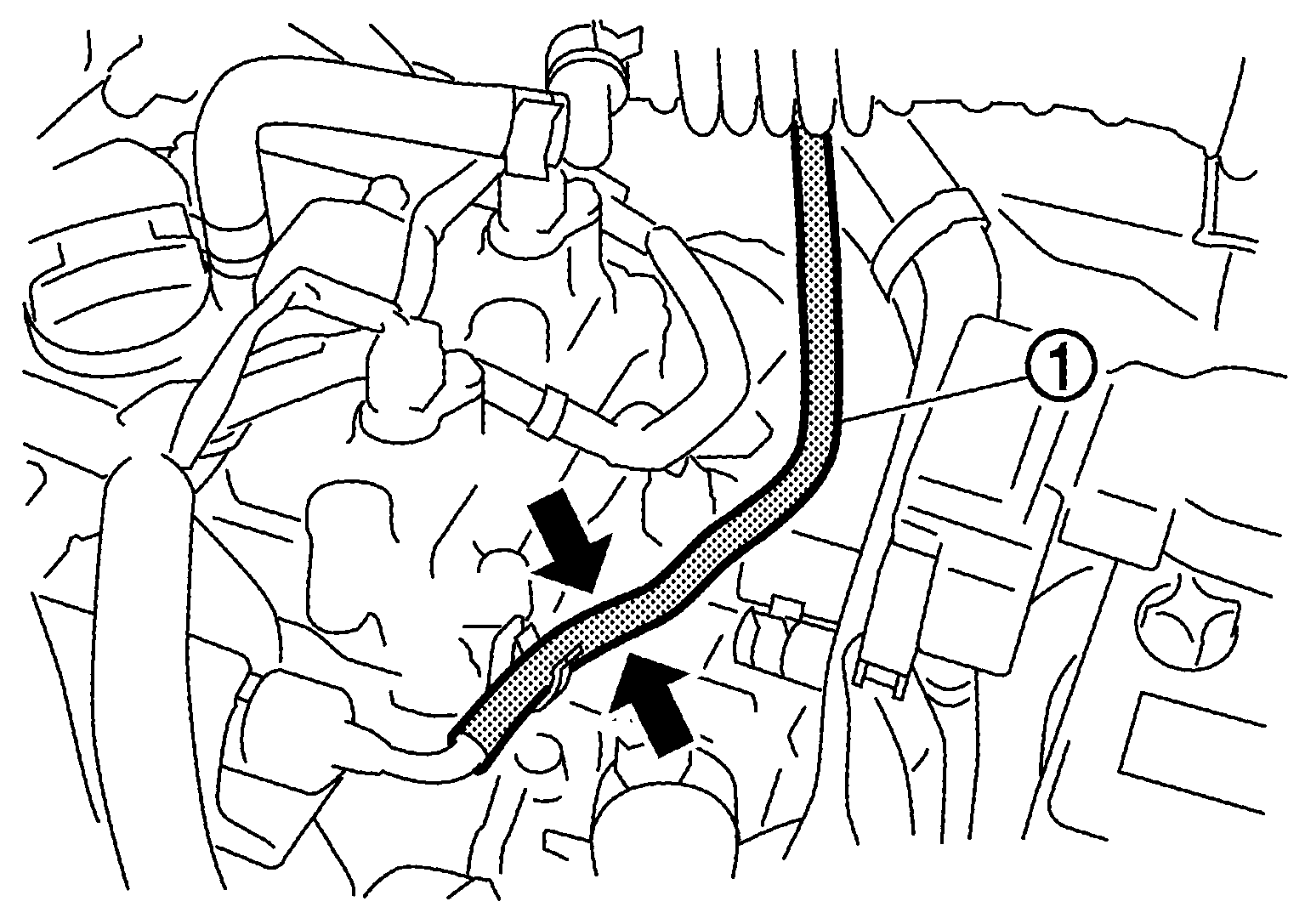

   Fig 1: Pinching Fuel Feed Hose

   Courtesy of NISSAN NORTH AMERICA, INC.

   Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

Is the inspection result normal?

YES

INSPECTION END

NO

Proceed to DIAGNOSIS PROCEDURE .
