Diagnostic Test

1. Turn ignition switch OFF.
2. Start engine.

Does the engine start?

YES

GO TO STEP 2  .

NO

Proceed to DIAGNOSIS PROCEDURE .

With CONSULT

1. Perform "POWER BALANCE" in "ACTIVE TEST" mode of "ENGINE" using CONSULT.
2. Check that each circuit produces a momentary engine speed drop.

Without CONSULT

1. Let engine idle.

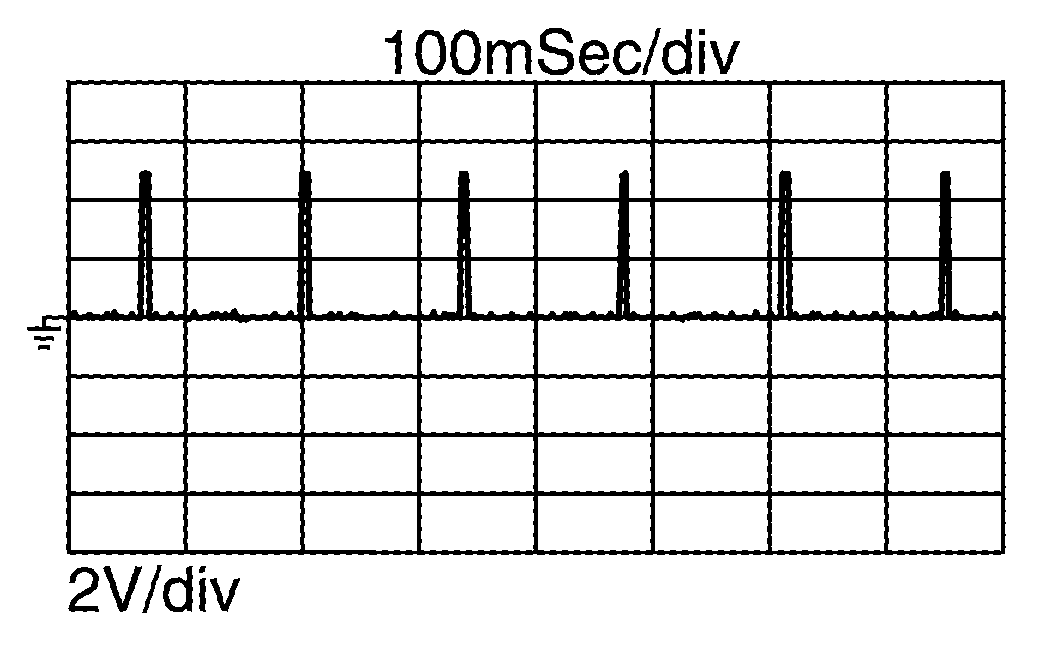

2. Check the voltage signal between ECM harness connector and ground with an oscilloscope.

   ECM				Voltage signal
   +		-
   Connector	Terminal	Connector	Terminal
   F25	86	E16	128	Courtesy of NISSAN NORTH AMERICA, INC.
   	87
   	90
   	91

   NOTE:

   The pulse cycle changes depending on RPM at idle.

Is the inspection result normal?

YES

INSPECTION END

NO

Proceed to DIAGNOSIS PROCEDURE .
