Vehicle Security System: Wiring Diagram

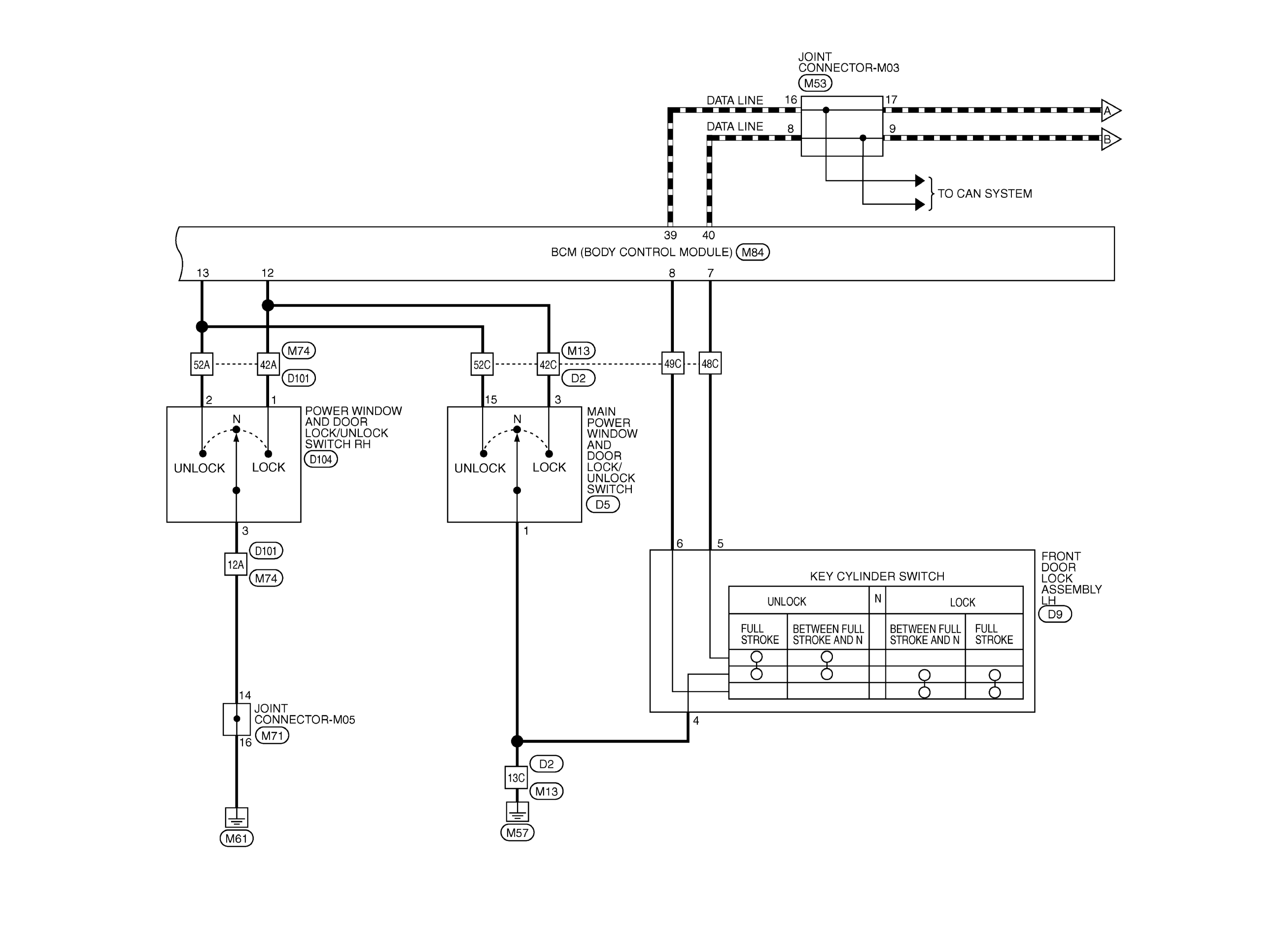

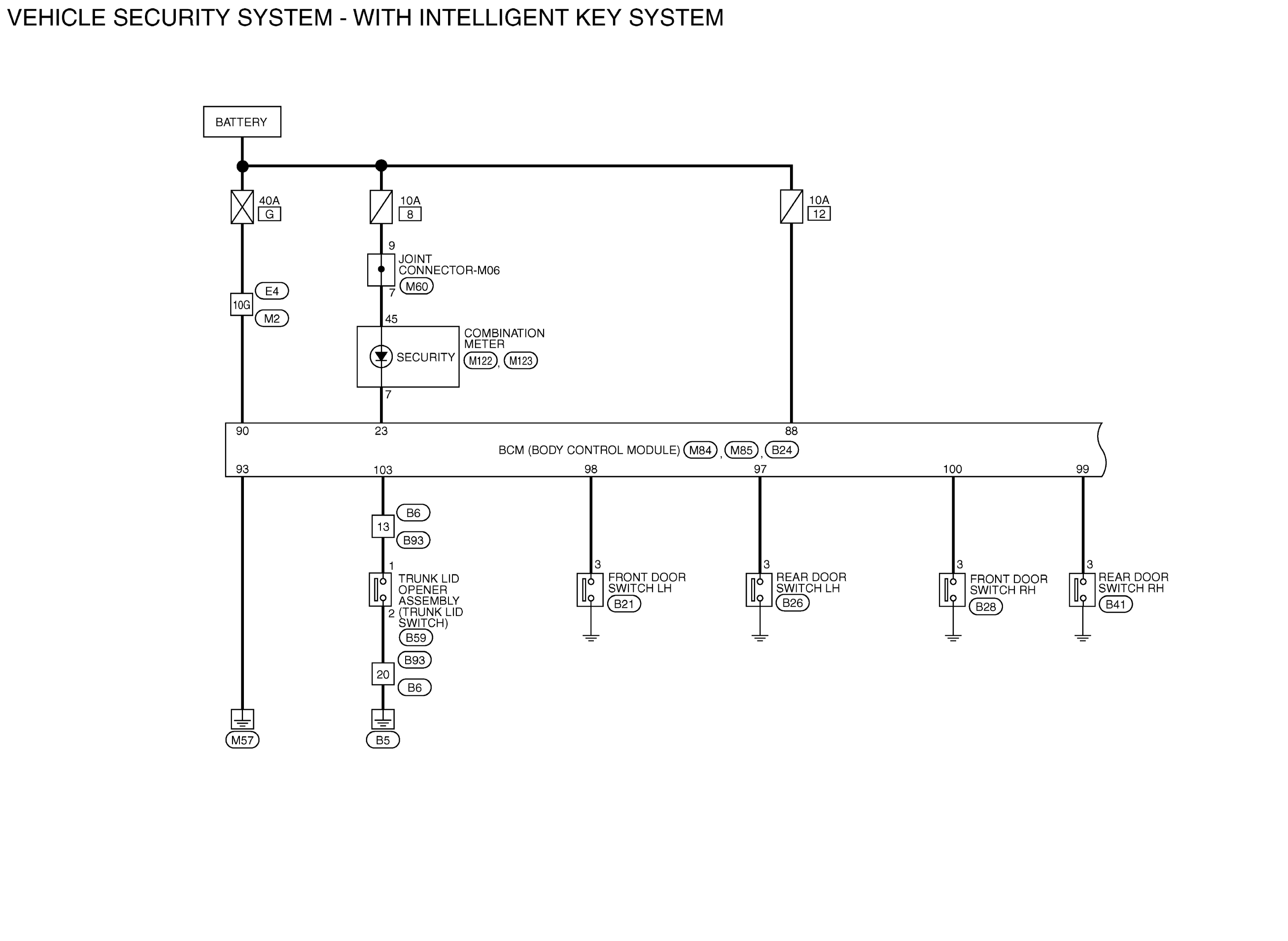

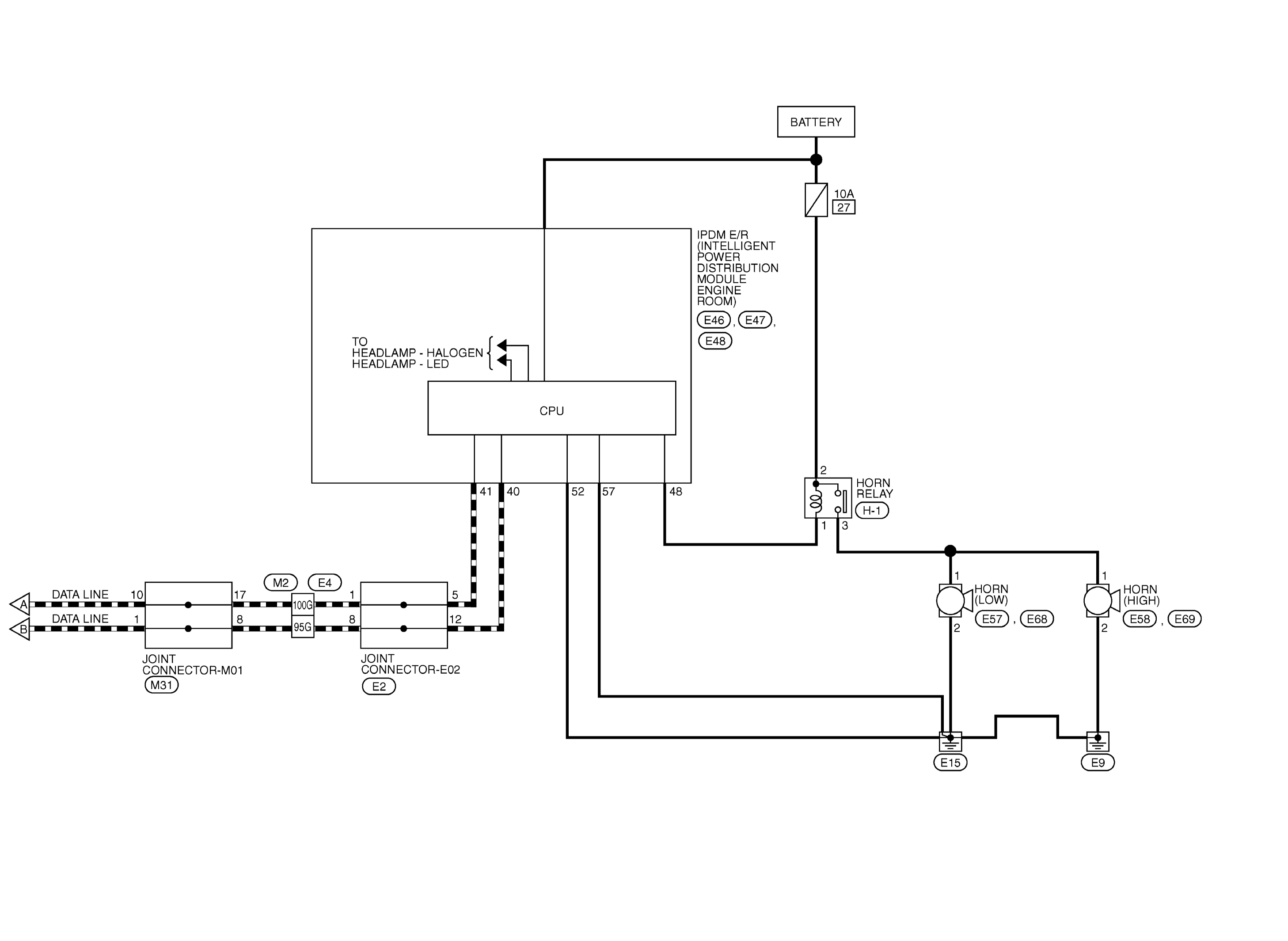

Fig 1: Vehicle Security System Wiring Diagram(1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Vehicle Security System Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Vehicle Security System Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

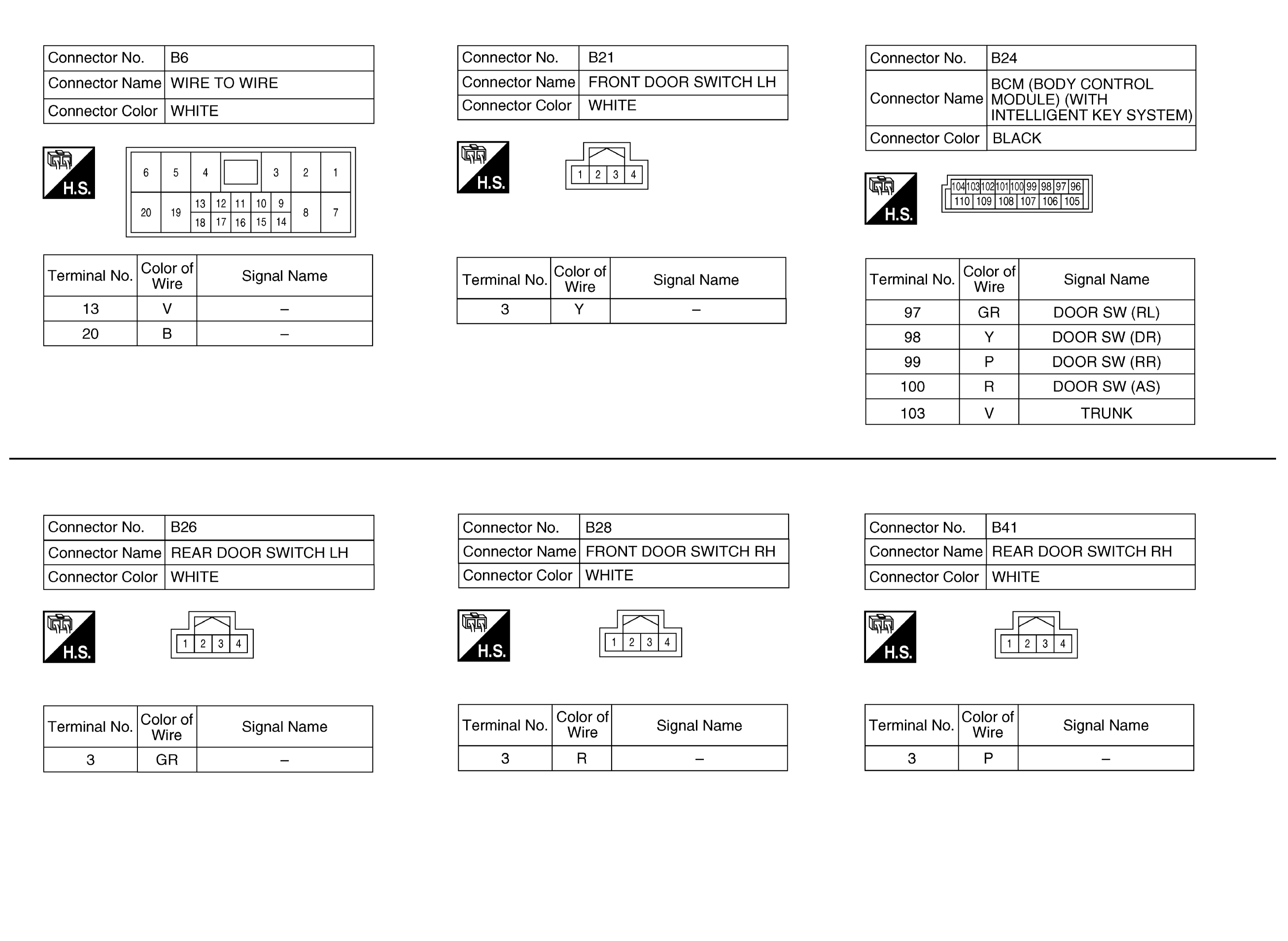

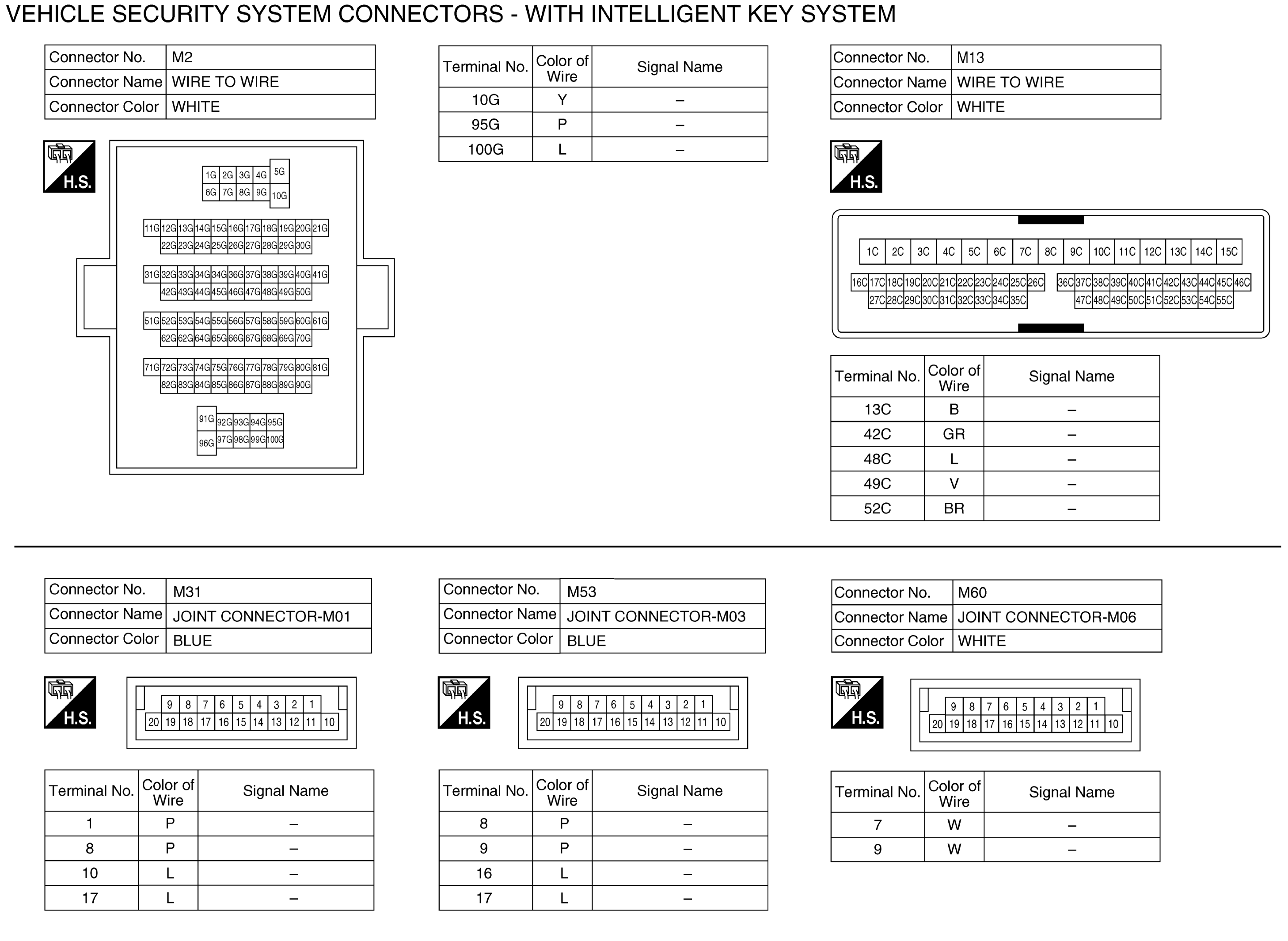

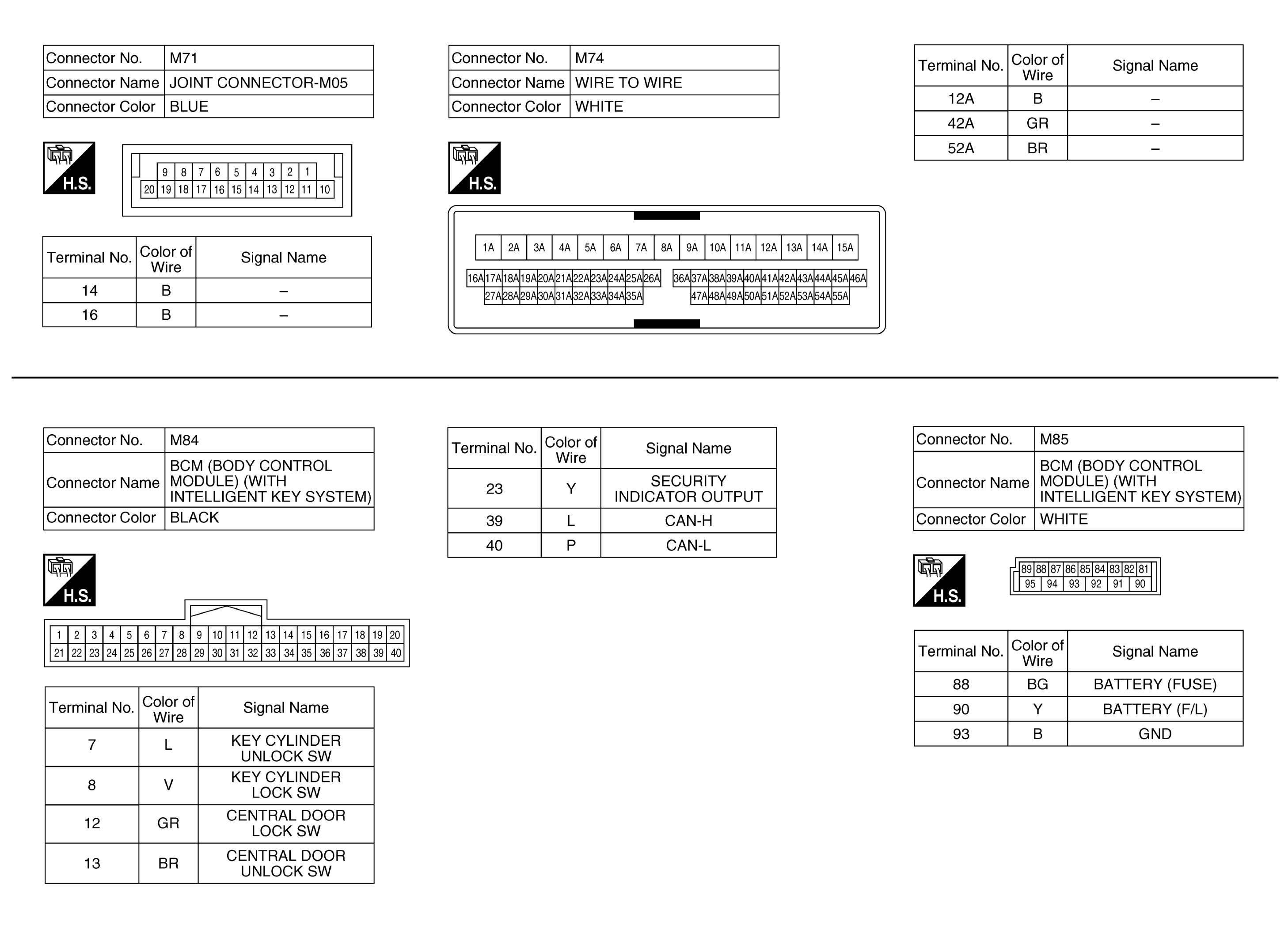

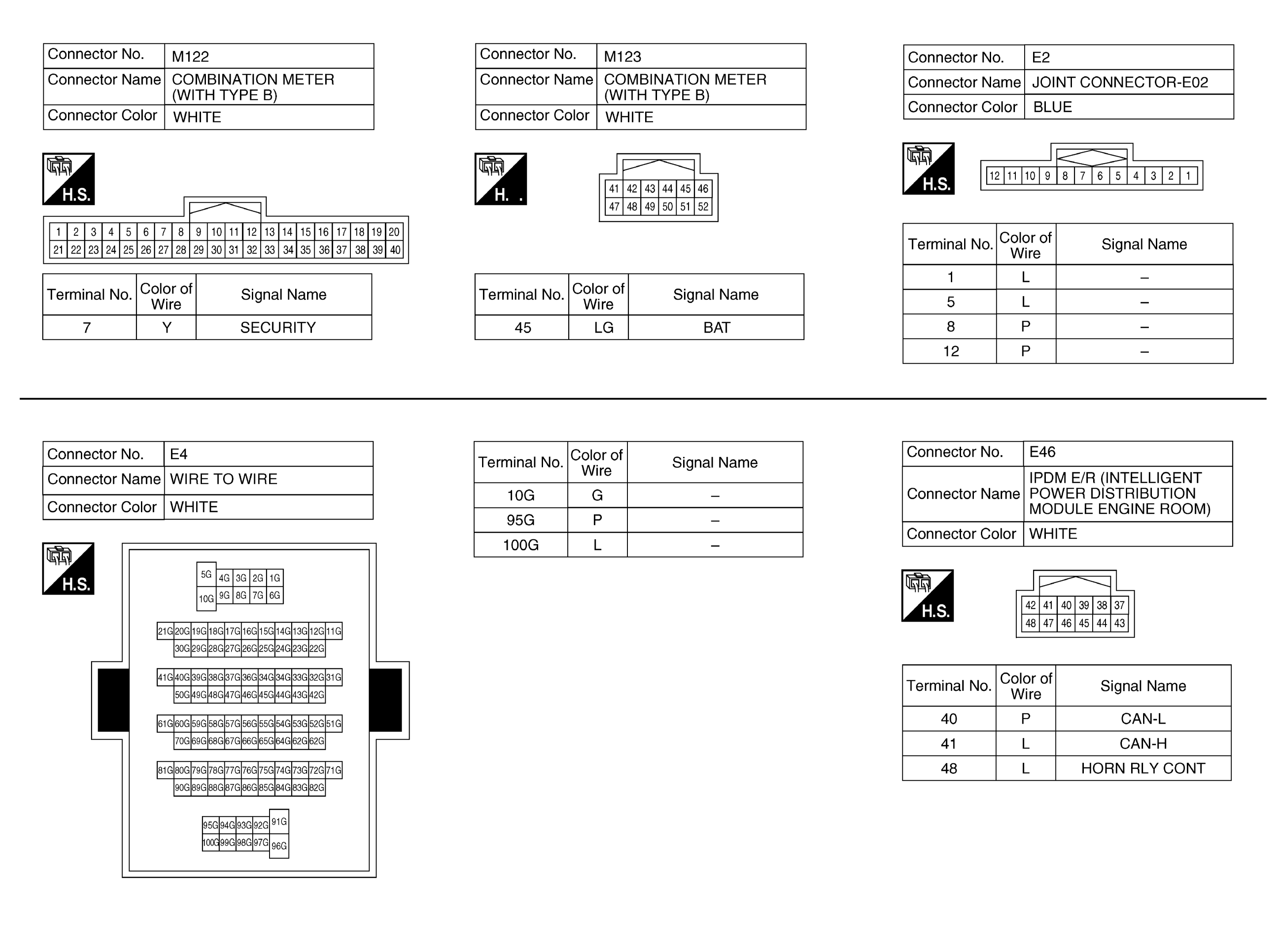

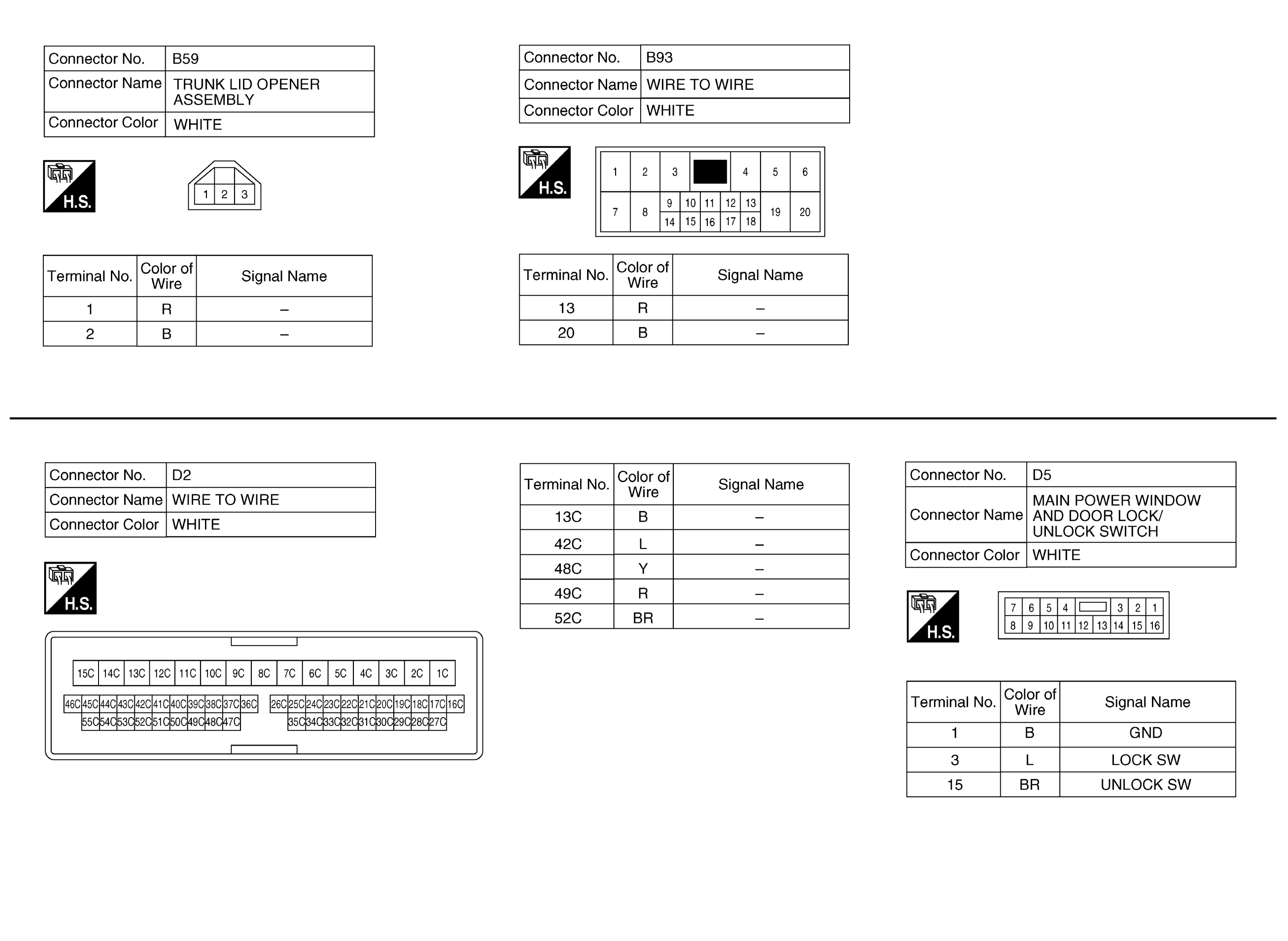

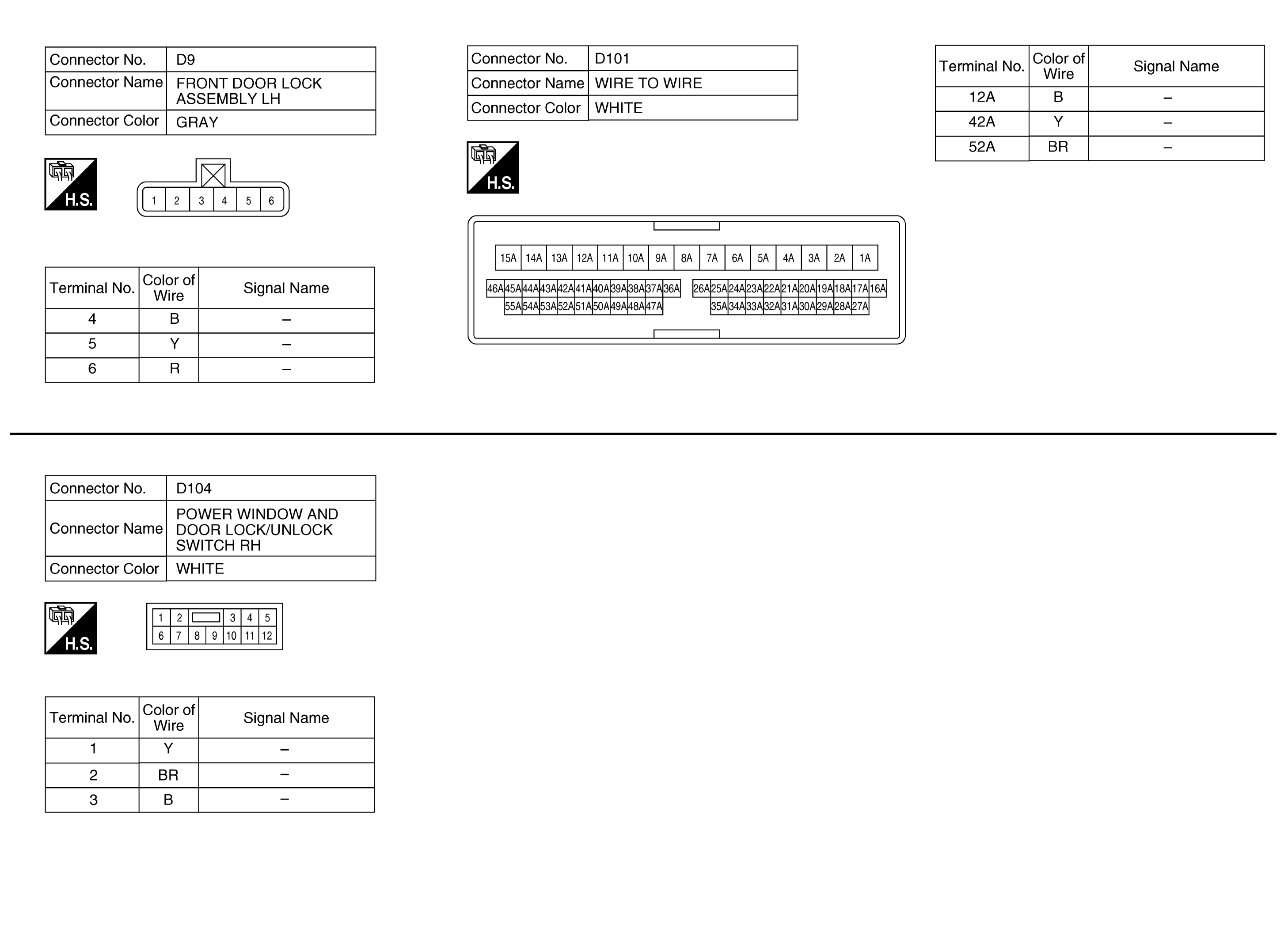

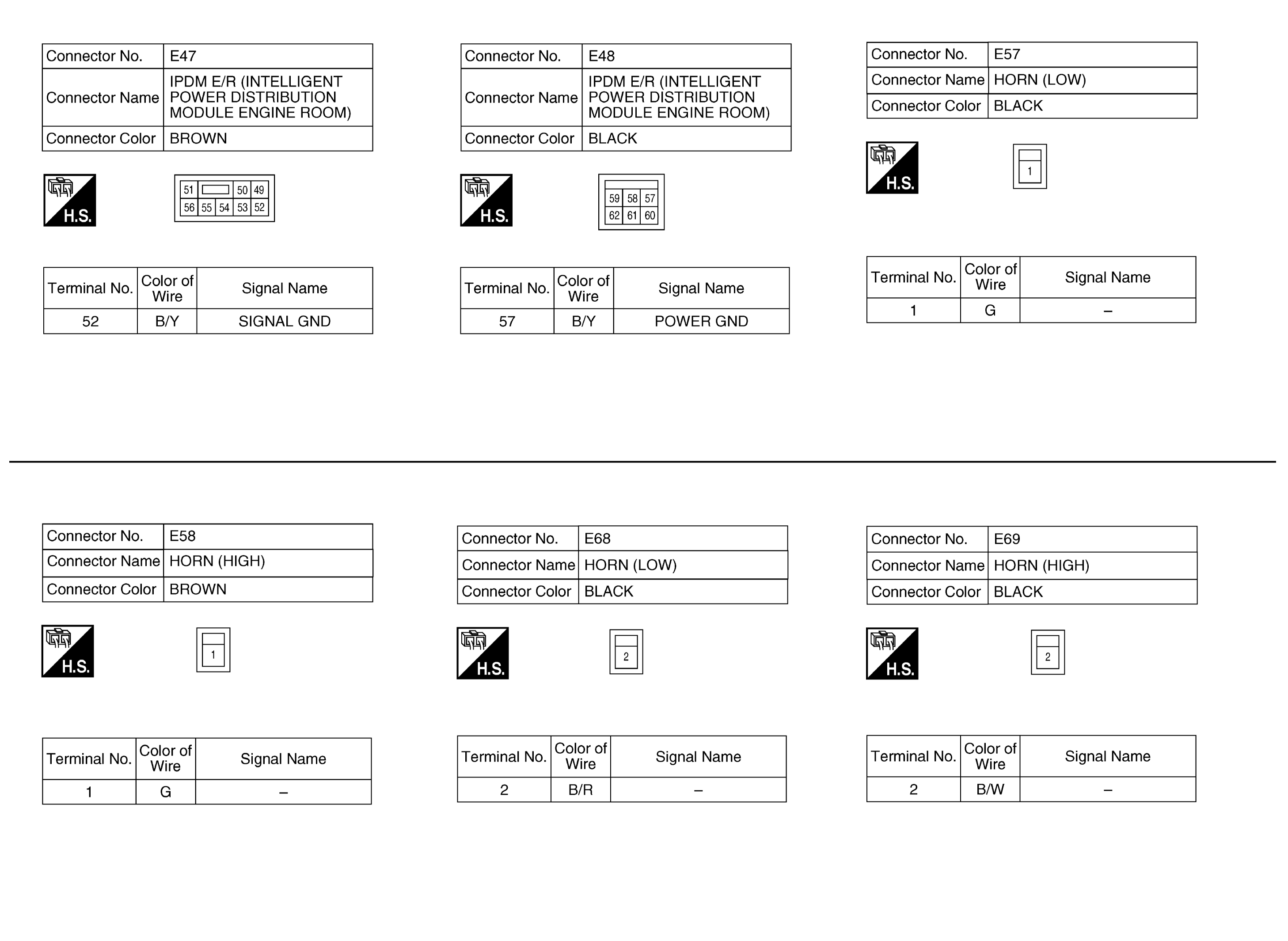

Fig 4: Vehicle Security System Connectors (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Vehicle Security System Connectors (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Vehicle Security System Connectors (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Vehicle Security System Connectors (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Vehicle Security System Connectors (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Vehicle Security System Connectors (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Vehicle Security System Connectors (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
