Exploded View With Torque Specifications

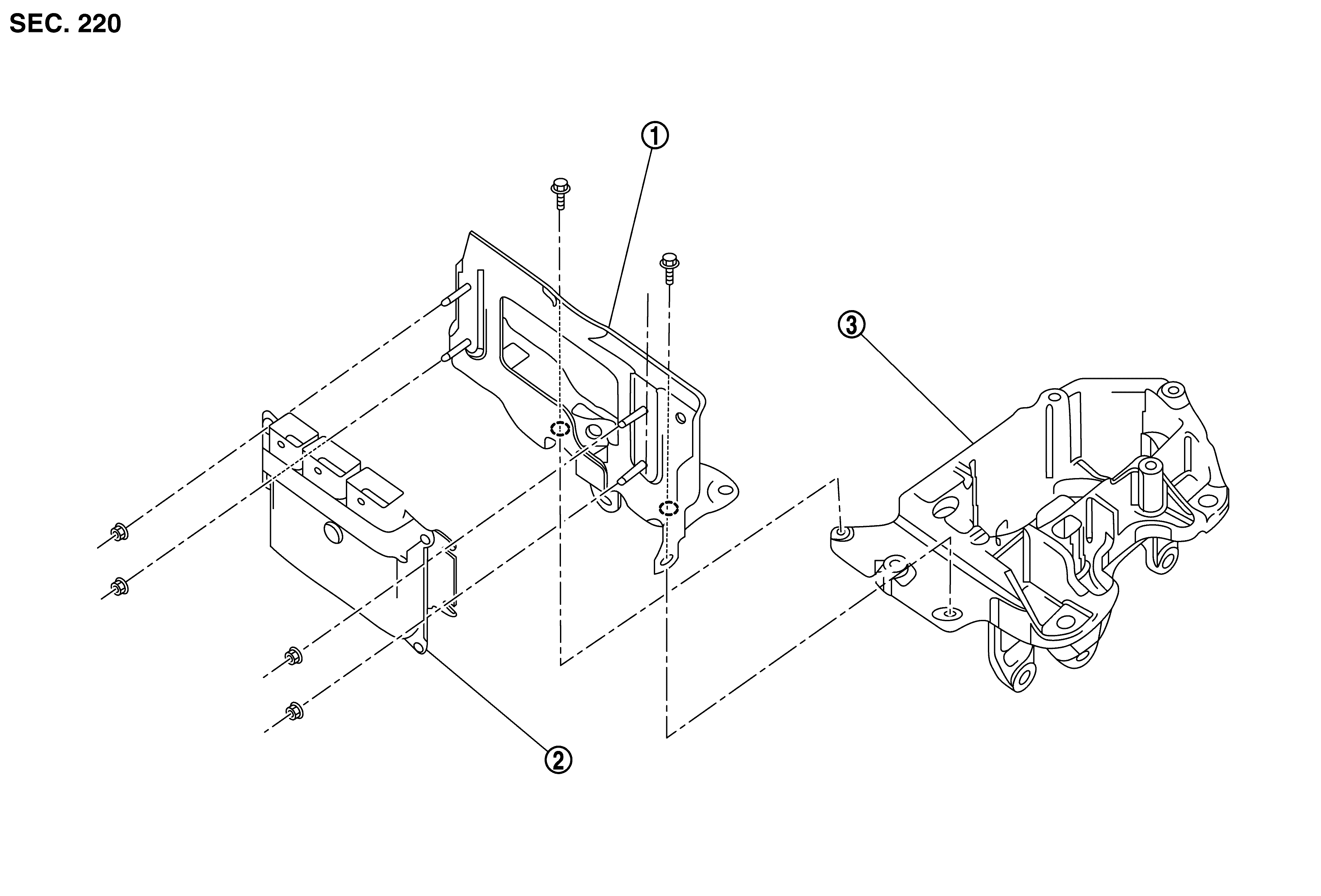

Fig 1: Exploded View Of ECM
GNSJSBIA2680ZZ-680Courtesy of NISSAN NORTH AMERICA, INC.
1. ECM bracket 2. ECM 3. Engine mounting insulator (LH)
