Exploded View With Torque Specifications

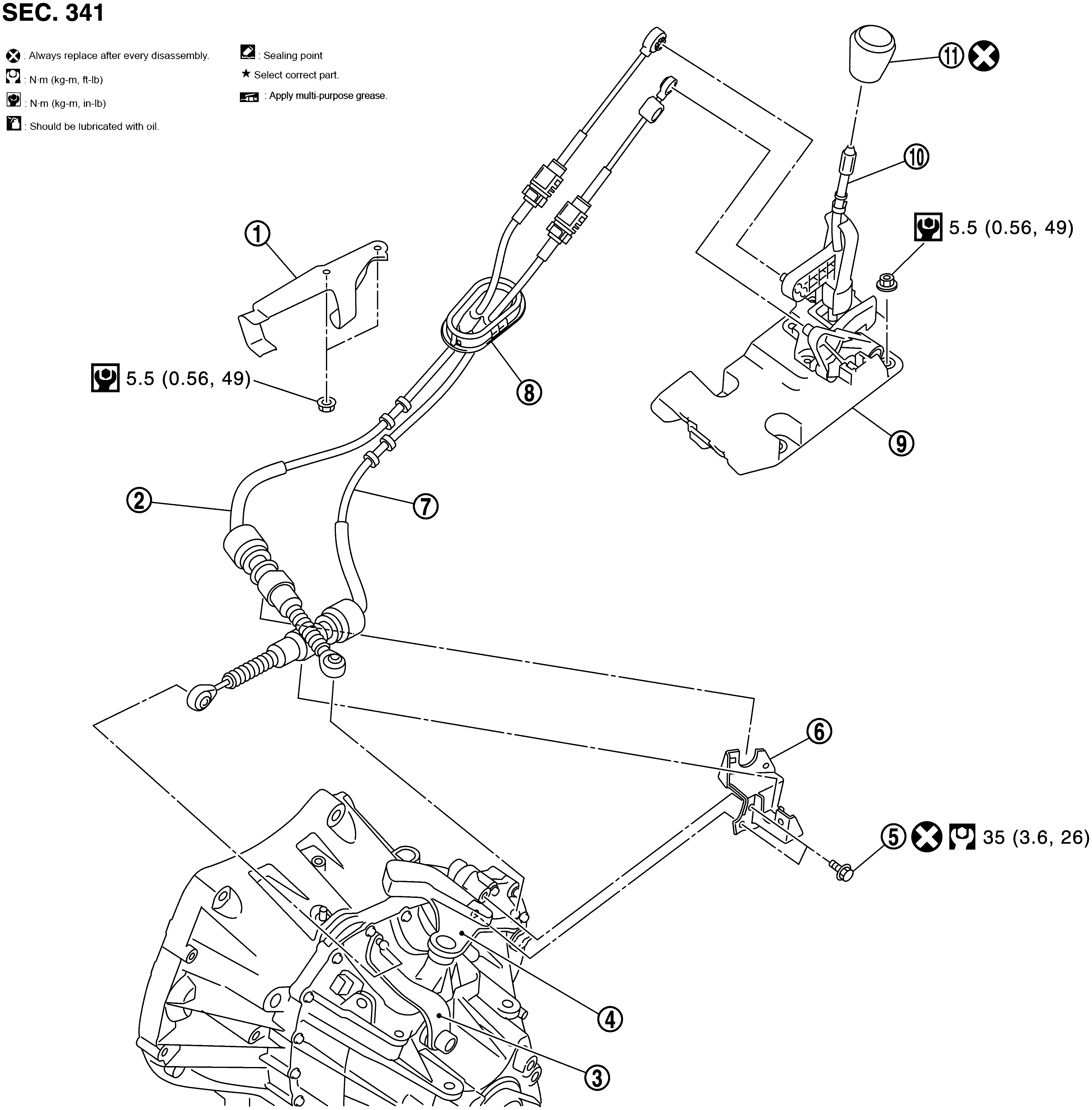

Fig 1: Exploded View Of Control Linkage With Torque Specifications
GNSJPDIC0856GB-856Courtesy of NISSAN NORTH AMERICA, INC.
1. Bracket 2. Shifter cable 3. Selector lever
4. Shift lever 5. Tapping bolt 6. M/T cable mounting bracket
7. Selector cable 8. Grommet 9. Shift selector assembly
10. Shift selector 11. Shift selector knob
