Case And Housing

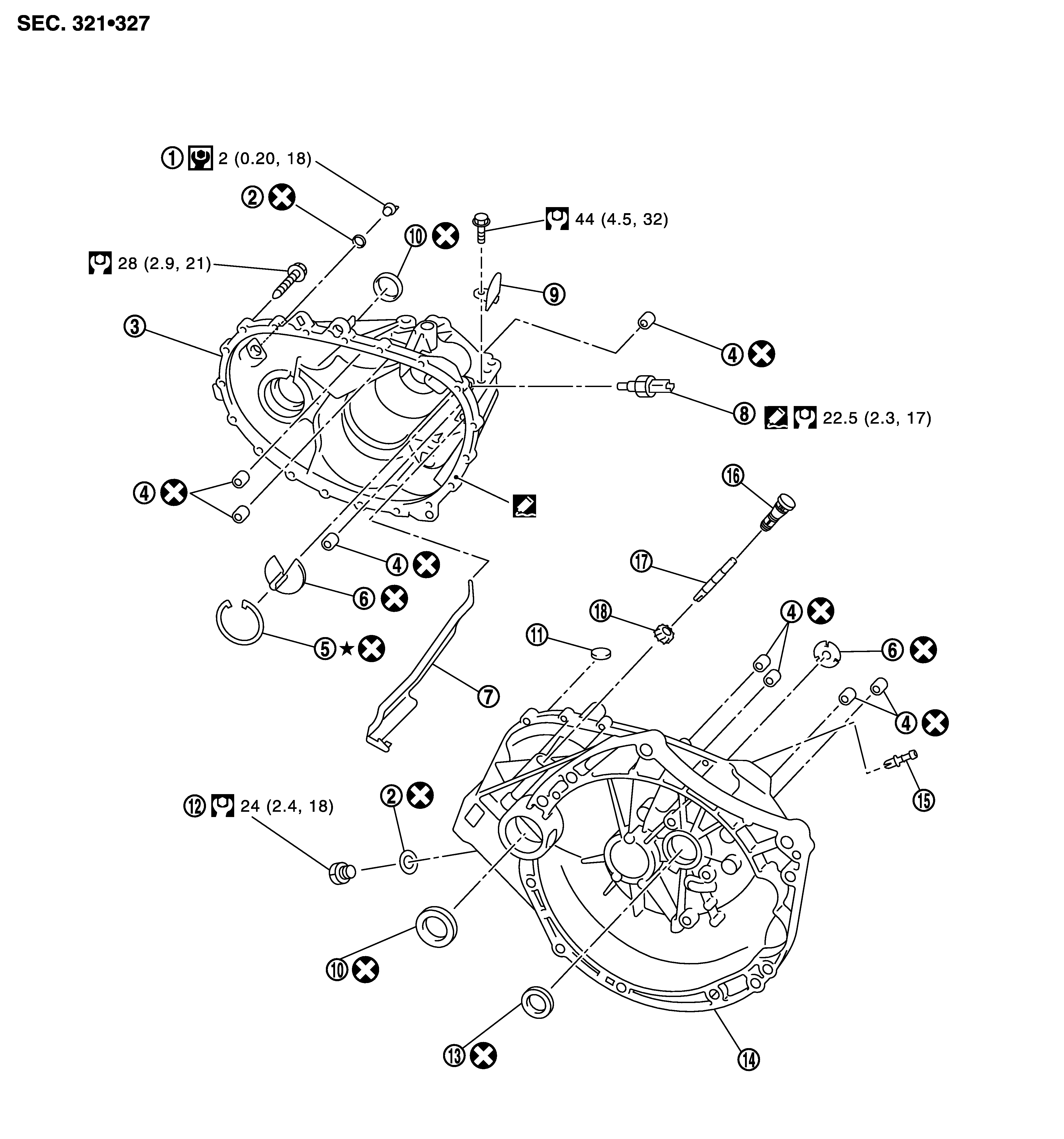

Fig 1: Exploded View Of Case And Housing With Torque Specifications
GNSJPDIC0437GB-437Courtesy of NISSAN NORTH AMERICA, INC.
1. Filler plug 2. Gasket 3. Transaxle case
4. Bushing 5. Snap ring 6. Oil channel
7. Oil gutter 8. Position switch 9. Bracket
10. Differential side oil seal 11. Magnet 12. Drain plug
13. Input shaft oil seal 14. Clutch housing 15. 2 way connector
16. Plug 17. Pinion shaft 18. Pinion gear
