Shaft And Gear

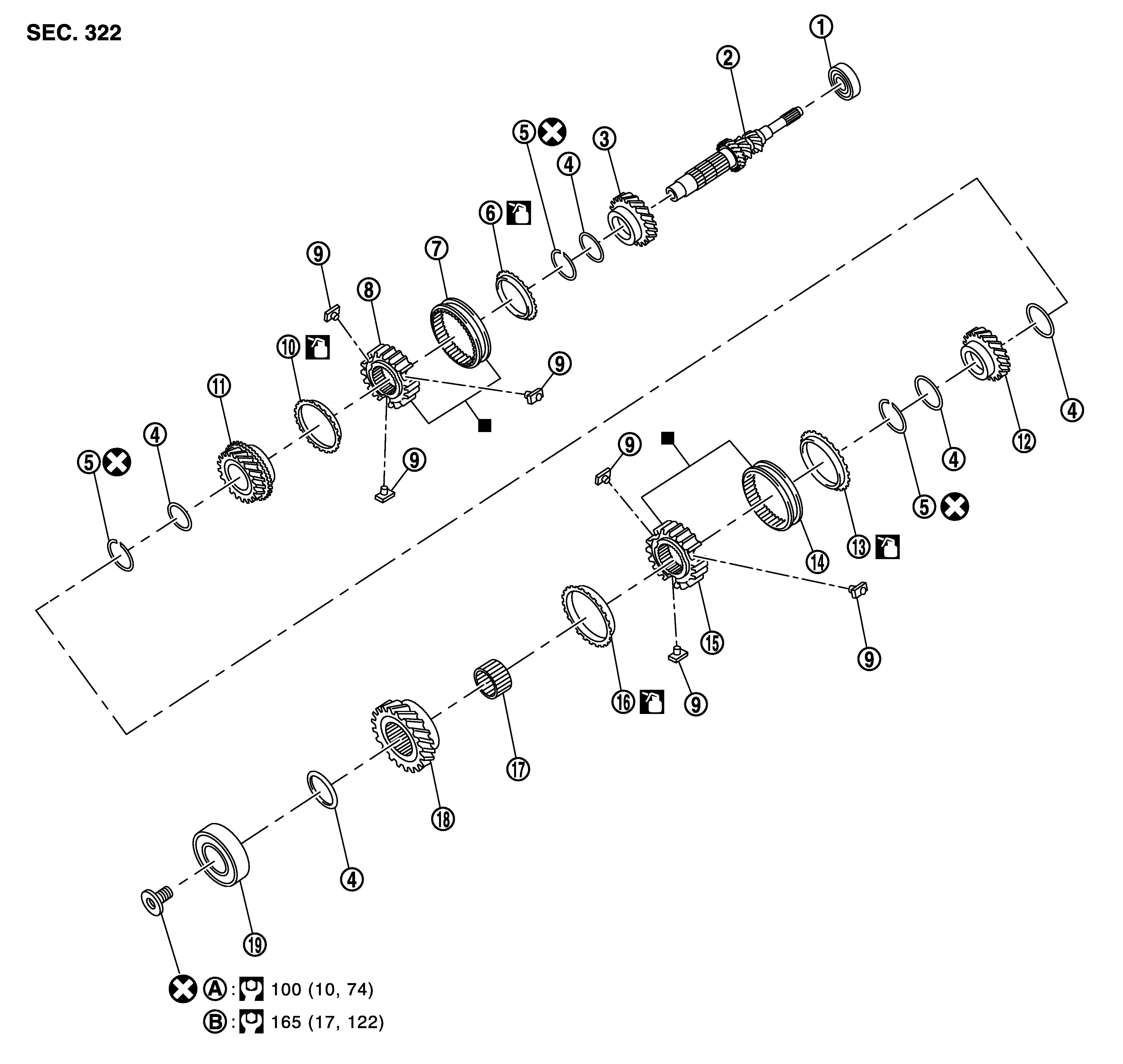

Fig 1: Exploded View Of Transaxle Assembly Gear Components With Torque Specifications (1 Of 3)
G08179842Courtesy of NISSAN NORTH AMERICA, INC.
1. Input shaft front bearing 2. Input shaft 3. 3rd input gear
4. Spacer 5. Snap ring 6. 3rd baulk ring
7. 3rd-4th coupling sleeve 8. 3rd-4th synchronizer hub 9. Insert key
10. 4th baulk ring 11. 4th input gear 12. 5th input gear
13. 5th baulk ring 14. 5th-6th coupling sleeve 15. 5th-6th synchronizer hub
16. 6th baulk ring 17. Needle bearing 18. 6th input gear
19. Input shaft rear bearing A. First step B. Final step
Fig 2: Disassembled Transaxle Assembly Gear Components With Torque Specifications (2 Of 3)
G08179843Courtesy of NISSAN NORTH AMERICA, INC.
1. Mainshaft front bearing outer race 2. Mainshaft front bearing inner race 3. Mainshaft
4. 1st main gear 5. 1st inner baulk ring 6. 1st synchronizer cone
7. 1st outer baulk ring 8. 1st-2nd coupling sleeve 9. Insert key
10. 1st-2nd synchronizer hub 11. 2nd outer baulk ring 12. 2nd synchronizer cone
13. 2nd inner baulk ring 14. 2nd main gear 15. Bushing
16. 3rd main gear 17. Mainshaft adjusting shim 18. 4th main gear
19. 5th main gear 20. 6th main gear 21. Mainshaft rear bearing inner race
22. Mainshaft rear bearing outer race 23. Snap ring 24. Mainshaft rear bearing adjusting shim

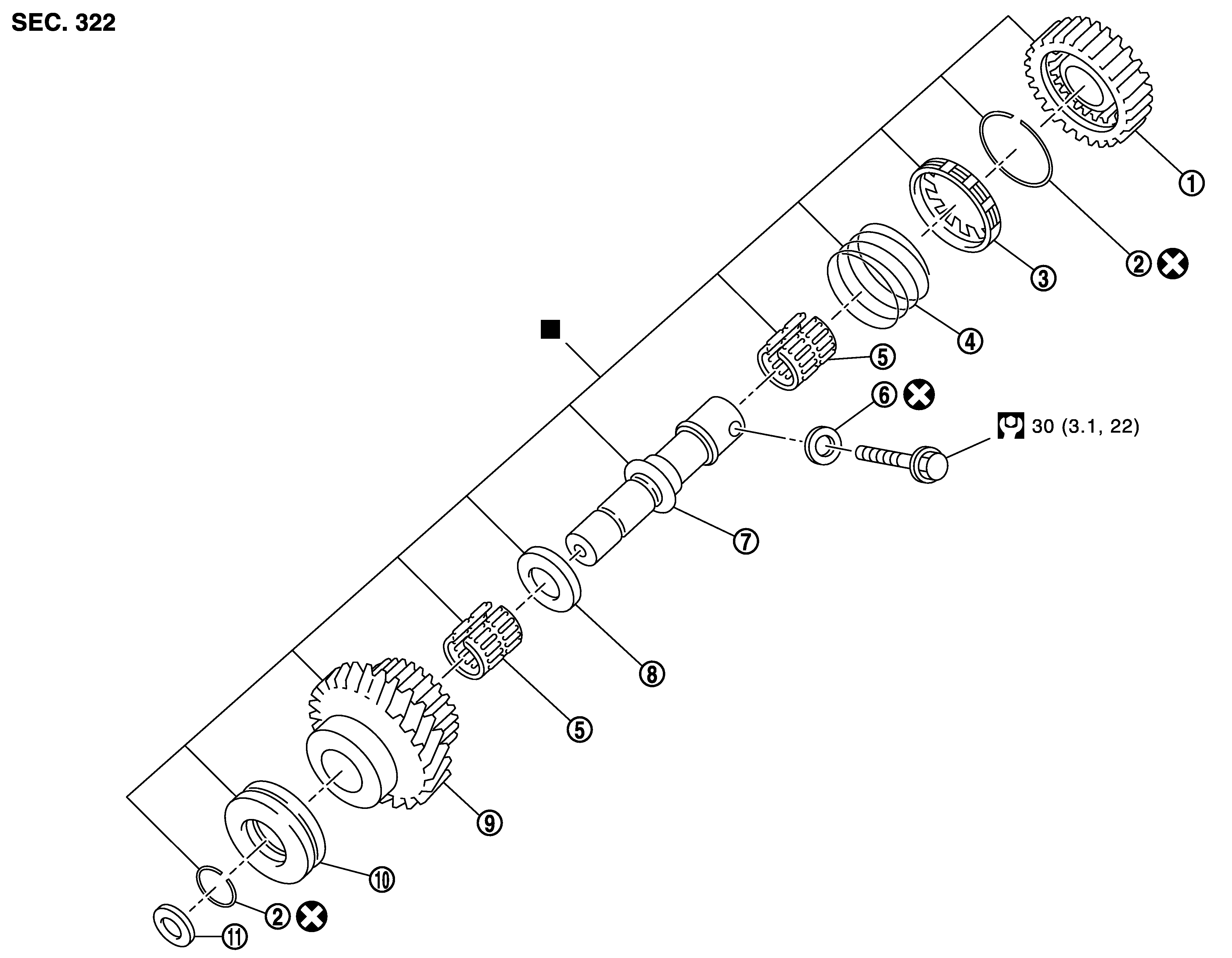

Fig 3: Disassembled Transaxle Assembly Gear Components With Torque Specifications (3 Of 3)
G08179844Courtesy of NISSAN NORTH AMERICA, INC.
1. Reverse output gear 2. Snap ring 3. Reverse baulk ring
4. Return spring 5. Needle bearing 6. Seal washer
7. Reverse idler shaft 8. Spacer 9. Reverse input gear
10. Lock washer 11. Spring washer
