Shift Fork And Fork Rod

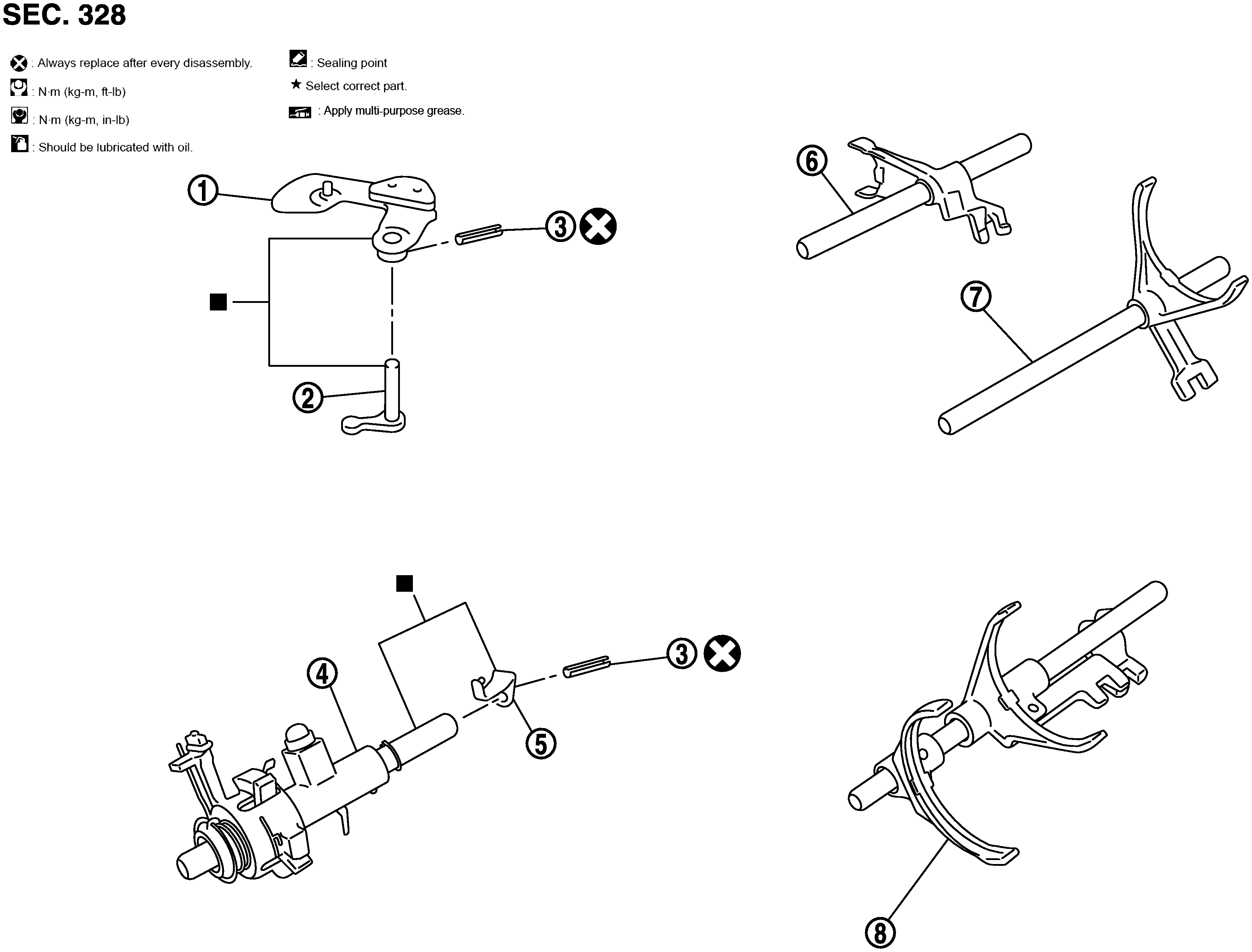

Fig 1: Disassembled Shift Fork And Fork Rod
GNSJPDIC0603ZZ-603Courtesy of NISSAN NORTH AMERICA, INC.
1. Shifter lever A 2. Shifter lever B 3. Retaining pin
4. Selector 5. Selector lever 6. Reverse fork rod
7. 1st-2nd fork rod 8. Fork rod
