Exploded View With Torque Specifications

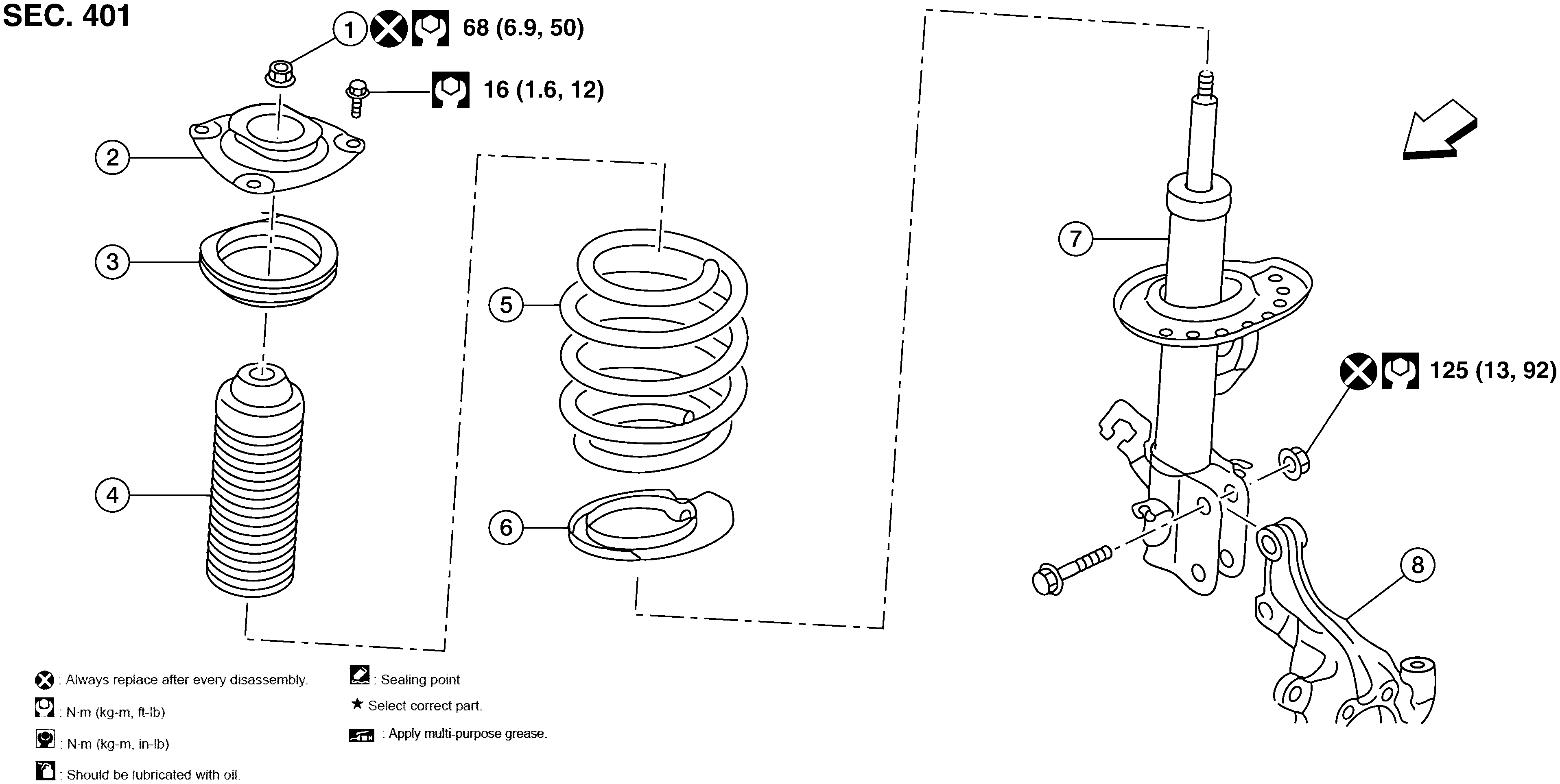

Fig 1: Exploded View Of Front Coil Spring And Strut With Torque Specifications
GNSAWEIA0289ZZ-289Courtesy of NISSAN NORTH AMERICA, INC.
1. Piston rod lock nut 2. Strut mount insulator 3. Strut mount bearing
4. Bound bumper 5. Coil spring 6. Lower rubber seat
7. Strut 8. Steering knuckle ARROW Front
