Disassembly And Assembly: Disassembly

1. Release the headrest holder locks as shown and remove the headrest holders.
   Fig 2: Removing Headrest Holder

   Courtesy of NISSAN NORTH AMERICA, INC.
   CAUTION:

   Before removing/installing the headrest holder, check its orientation (front/rear and right/left).

2. Remove and discard the side air bag module nuts (A).
   Fig 3: Removing Side Air Bag Module Nuts

   Courtesy of NISSAN NORTH AMERICA, INC.
   CAUTION:

   Do not reuse the side air bag module nuts.

   (1): Side air bag module

3. Disengage the side air bag module studs from the seat frame assembly and lift the seatback trim and seatback pad as an assembly from the seat frame assembly.

1. Open the seatback trim and release the side air bag module studs (A) from the holes in the chute (B).

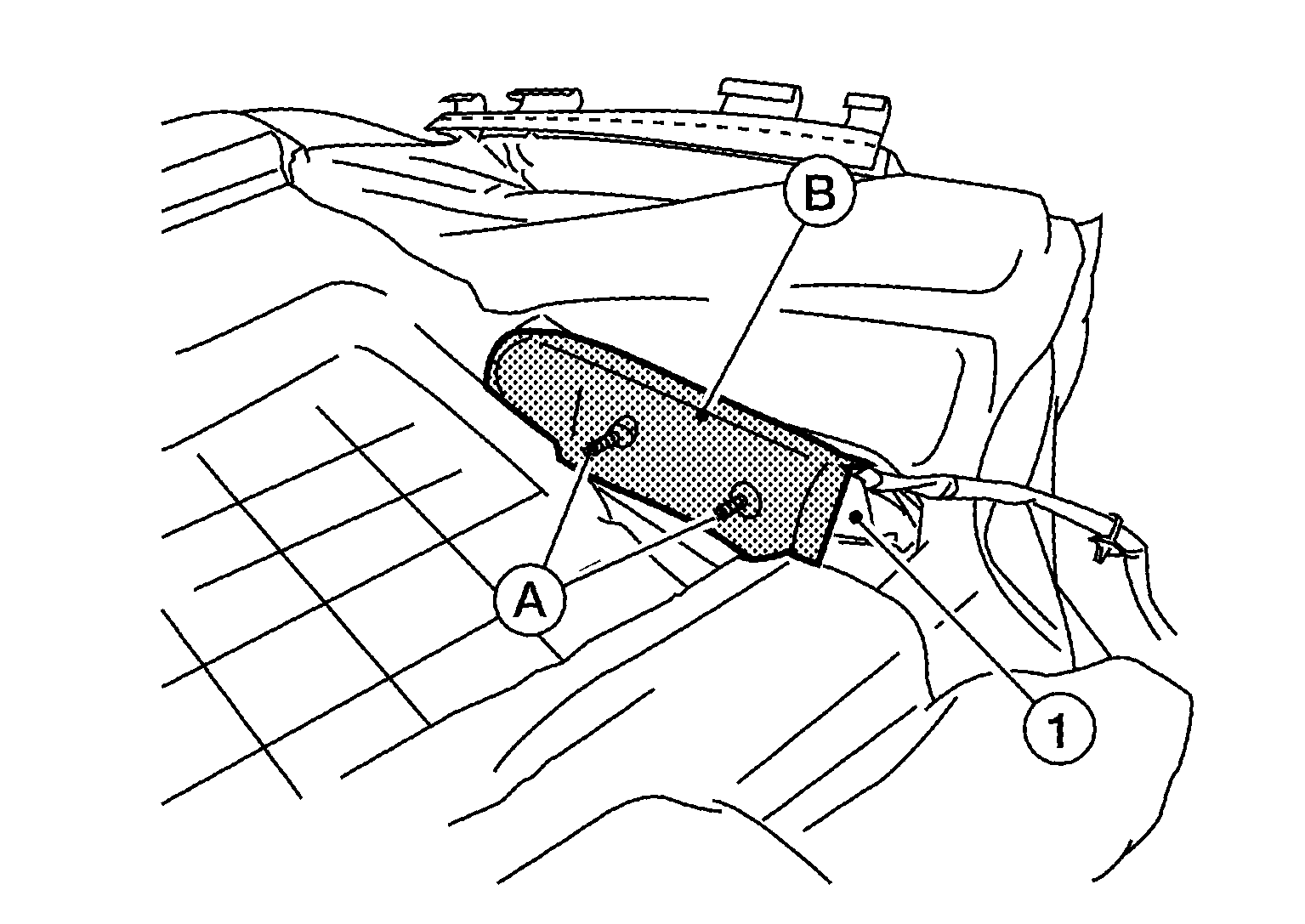

   Fig 4: Side Air Bag Module, Studs And Chute

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Pull the side air bag module (1) out of the chute (B) and remove from the seatback trim.
   CAUTION:

   • Replace the side air bag module if it has been dropped or sustained an impact.
     Fig 5: Precaution For Handling Air Bag Module

     Courtesy of NISSAN NORTH AMERICA, INC.
   • Do not strike the side air bag module.
3. Remove the hog rings, release the hook fastener (A) and separate the seatback trim from the seatback pad.

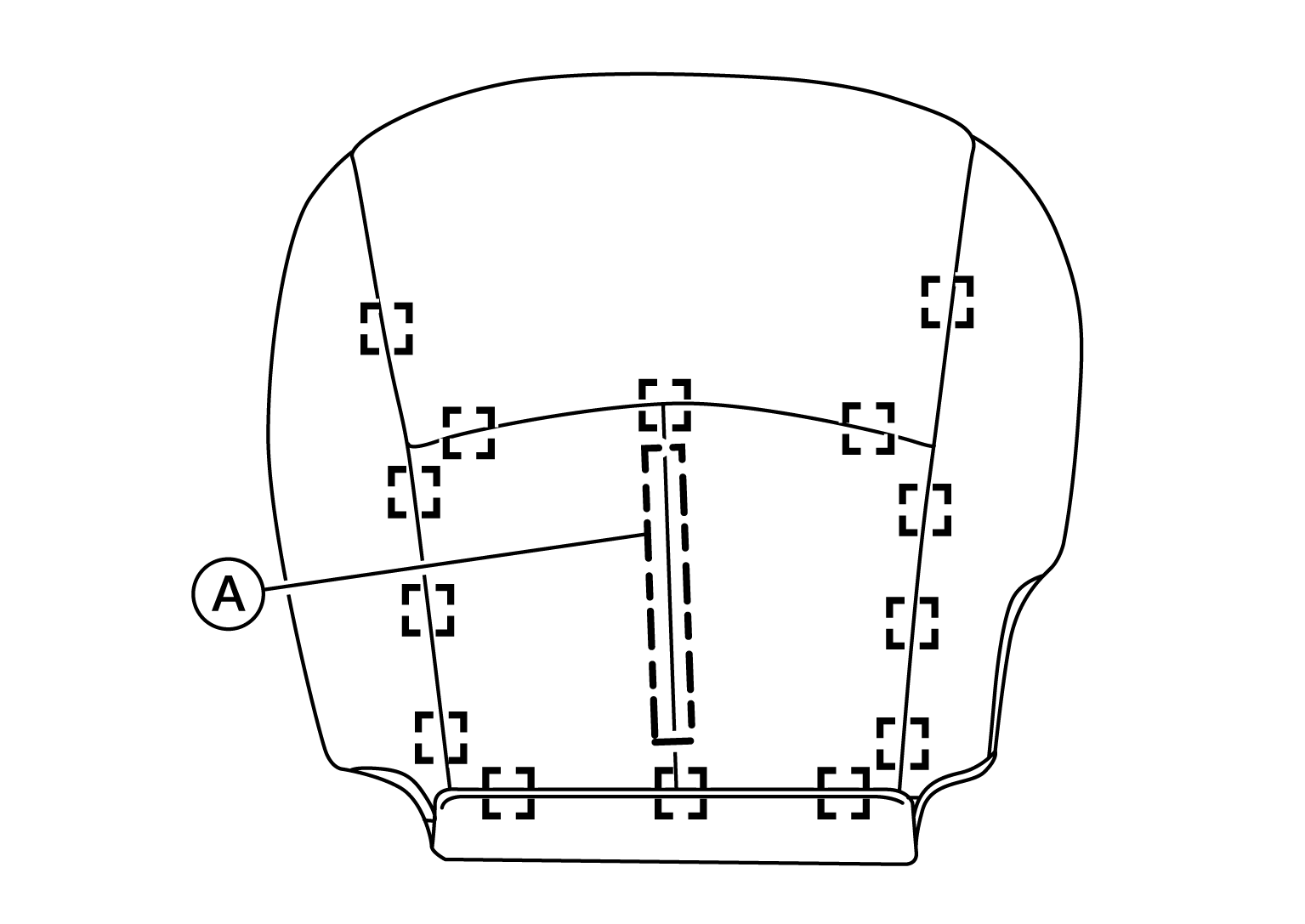

   Fig 6: View Of hog rings, And Hook Fastener (A)

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Hog ring

   NOTE:

   Remove all pieces of hog rings and discard them.

1. For manual seat:
   1. Release pawls and remove the lift lever finisher (2).

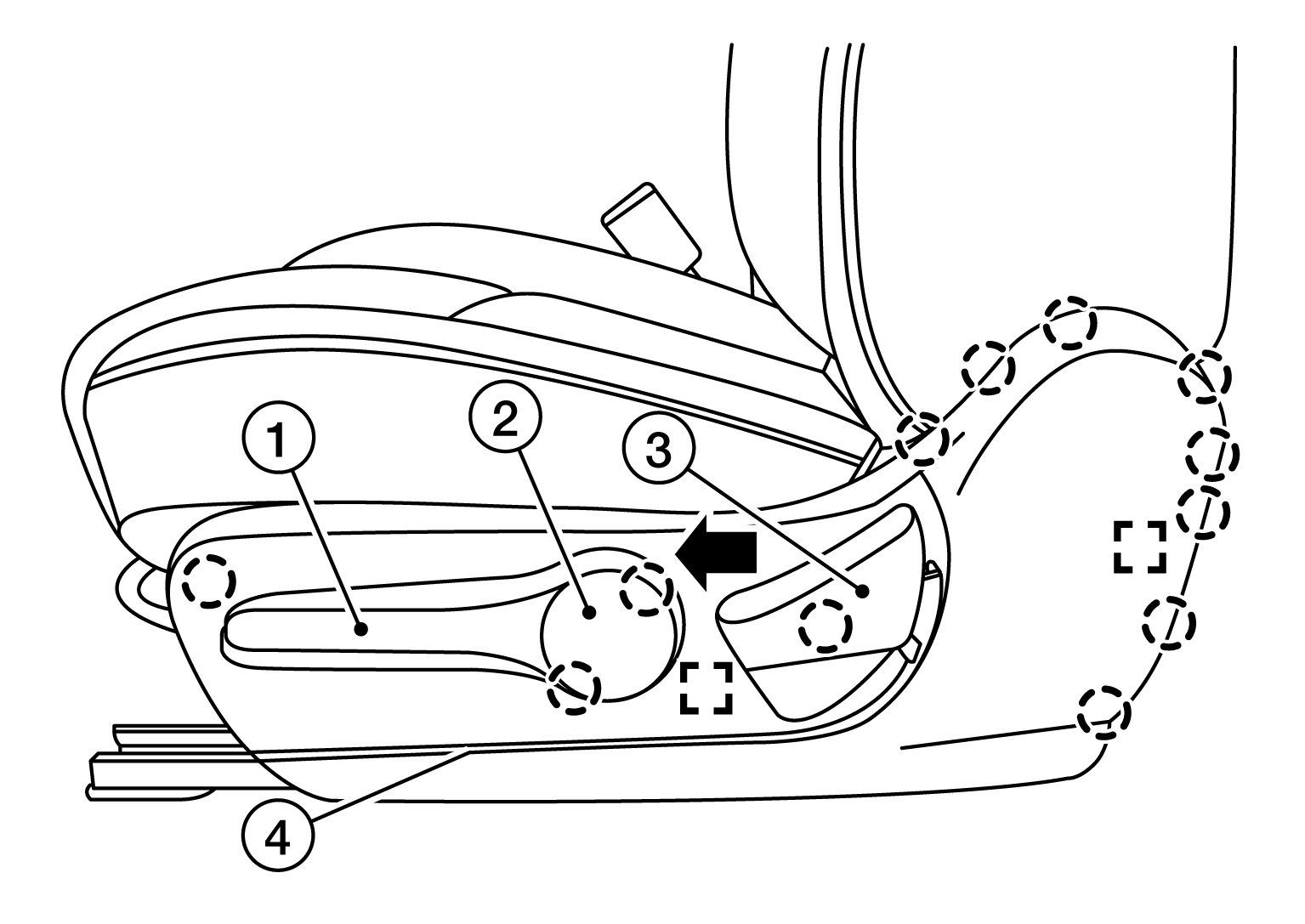

      Fig 1: Seat Cushion Outer Finisher, Pawls, Lift Lever Finisher, Lift Lever And Recline Lever

      Courtesy of NISSAN NORTH AMERICA, INC.
   2. Remove two screws and the lift lever (1).
   3. Release pawl and remove the recline lever (3) as shown.
   4. Release pawls and pull to release the metal clips then remove the seat cushion outer finisher (4).

      : Metal clip

      : Pawl

2. For power seat:

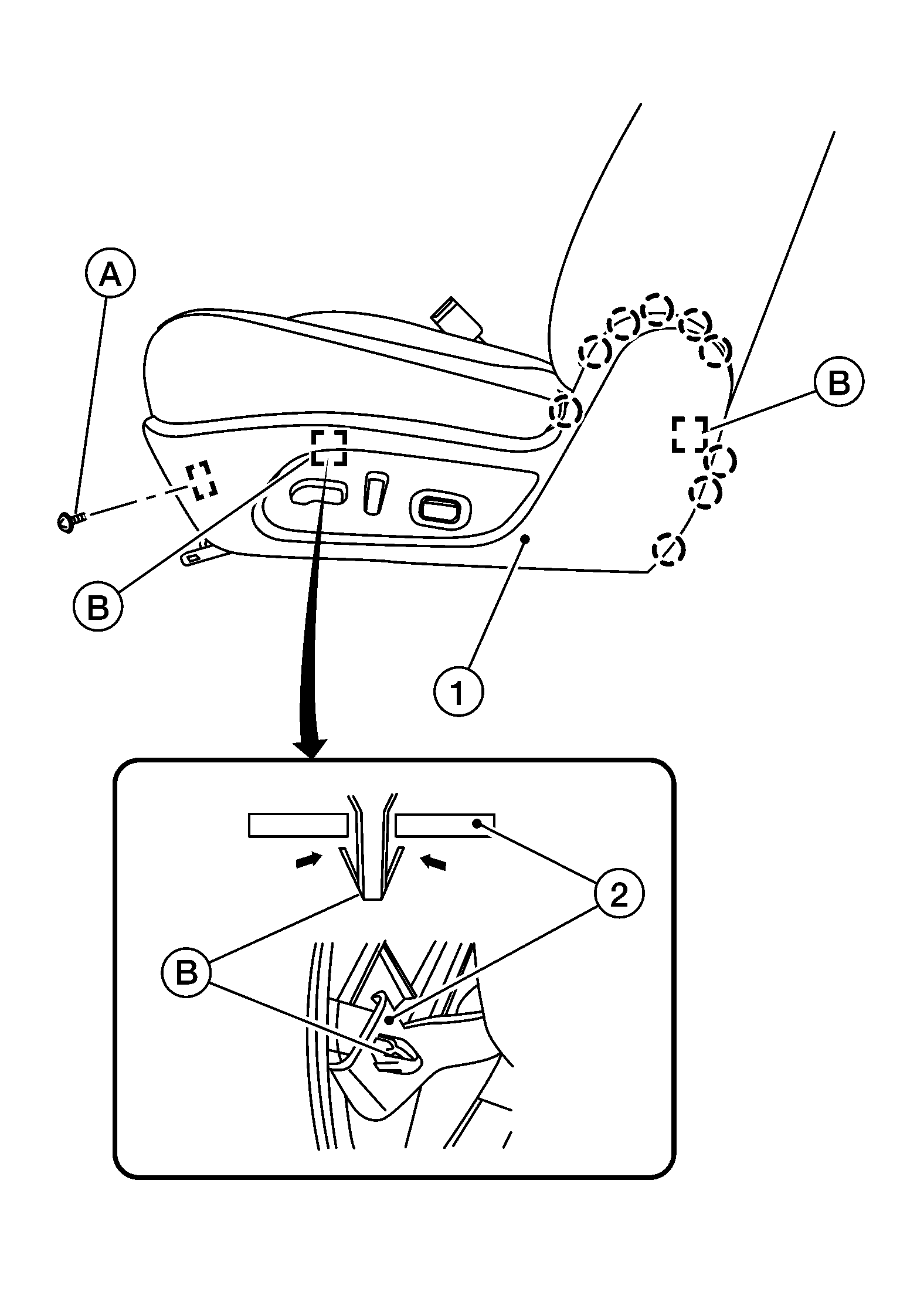

   Fig 2: Seat Cushion Outer Finisher LH Screw, Metal Clips And Pawls

   Courtesy of NISSAN NORTH AMERICA, INC.
   1. Remove screw (A).
   2. Release metal clips (B) from the seat cushion frame (2), as shown.

      : Metal clip

   3. Release pawls to separate.

      : Pawl

   4. Disconnect the harness connector (A) from the power seat switch (1).

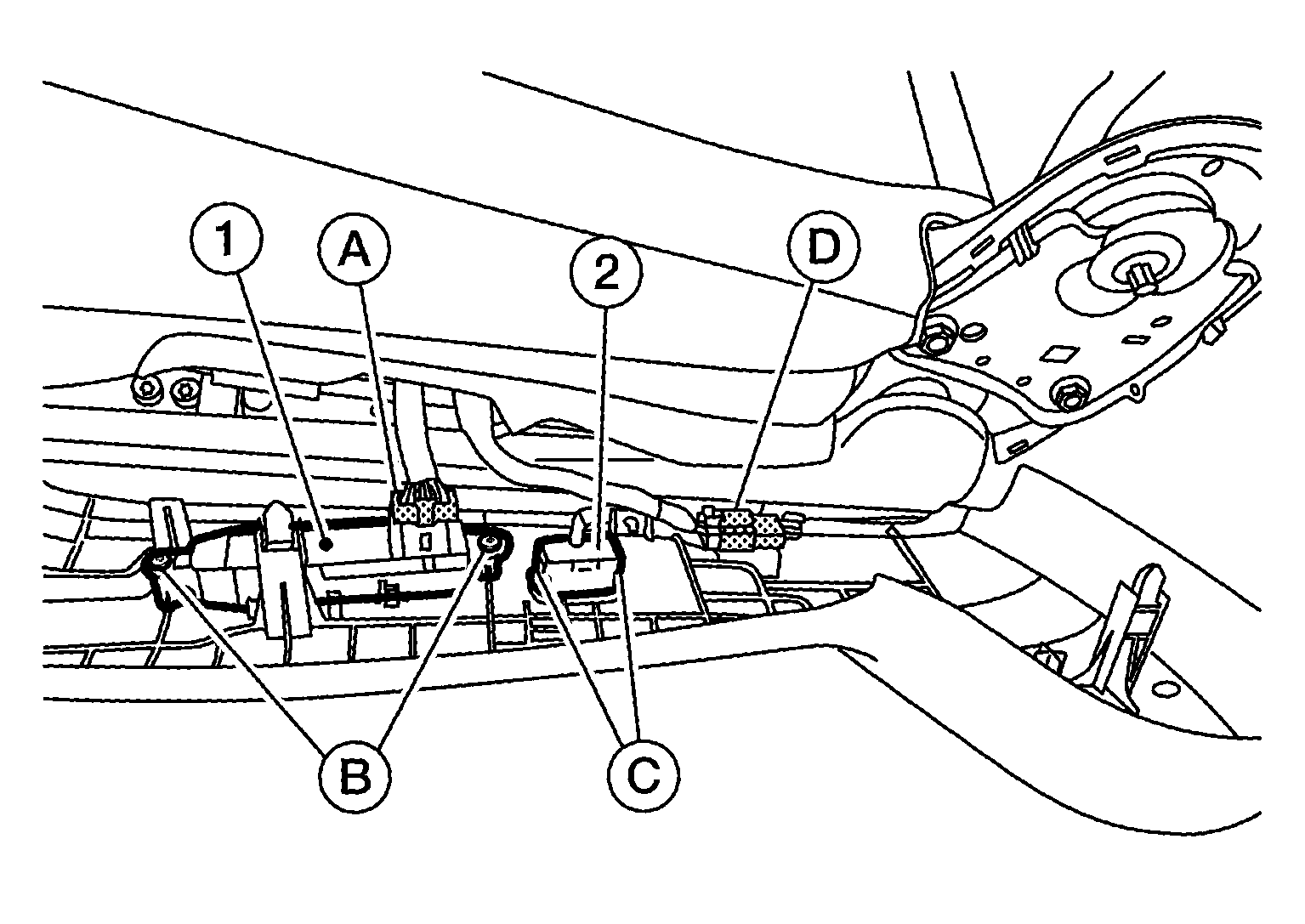

      Fig 3: Power Seat Switch, Lumbar Support Switch And Pawls

      Courtesy of NISSAN NORTH AMERICA, INC.
   5. Remove screws (B) if necessary to replace the power seat switch (1).
   6. Disconnect the harness connector (D) from the lumbar support switch (2) (if equipped).
   7. Release pawls (C) if necessary to replace the lumbar support switch (2) (if equipped).

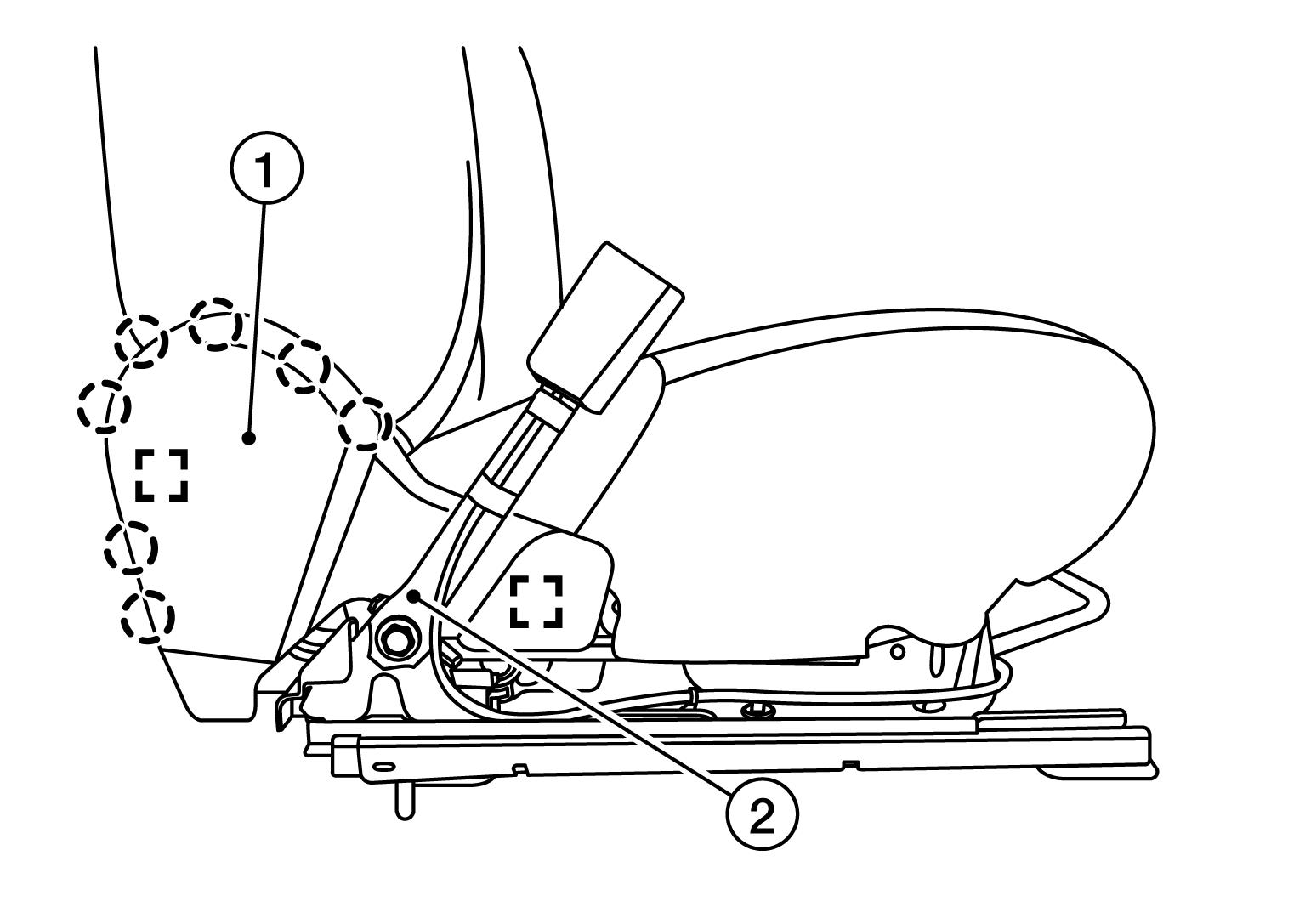

Fig 4: Seat Cushion Outer Finisher, Seat Belt Buckle, Pawls And Metal Clips

Courtesy of NISSAN NORTH AMERICA, INC.

1. Remove the seat belt buckle (2) and position aside. Refer to REMOVAL AND INSTALLATION .
2. Release pawls and pull to release the metal clips.

   : Metal clip

   : Pawl

Fig 5: Seat Cushion Trim (1) And Seat Cushion Pad

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

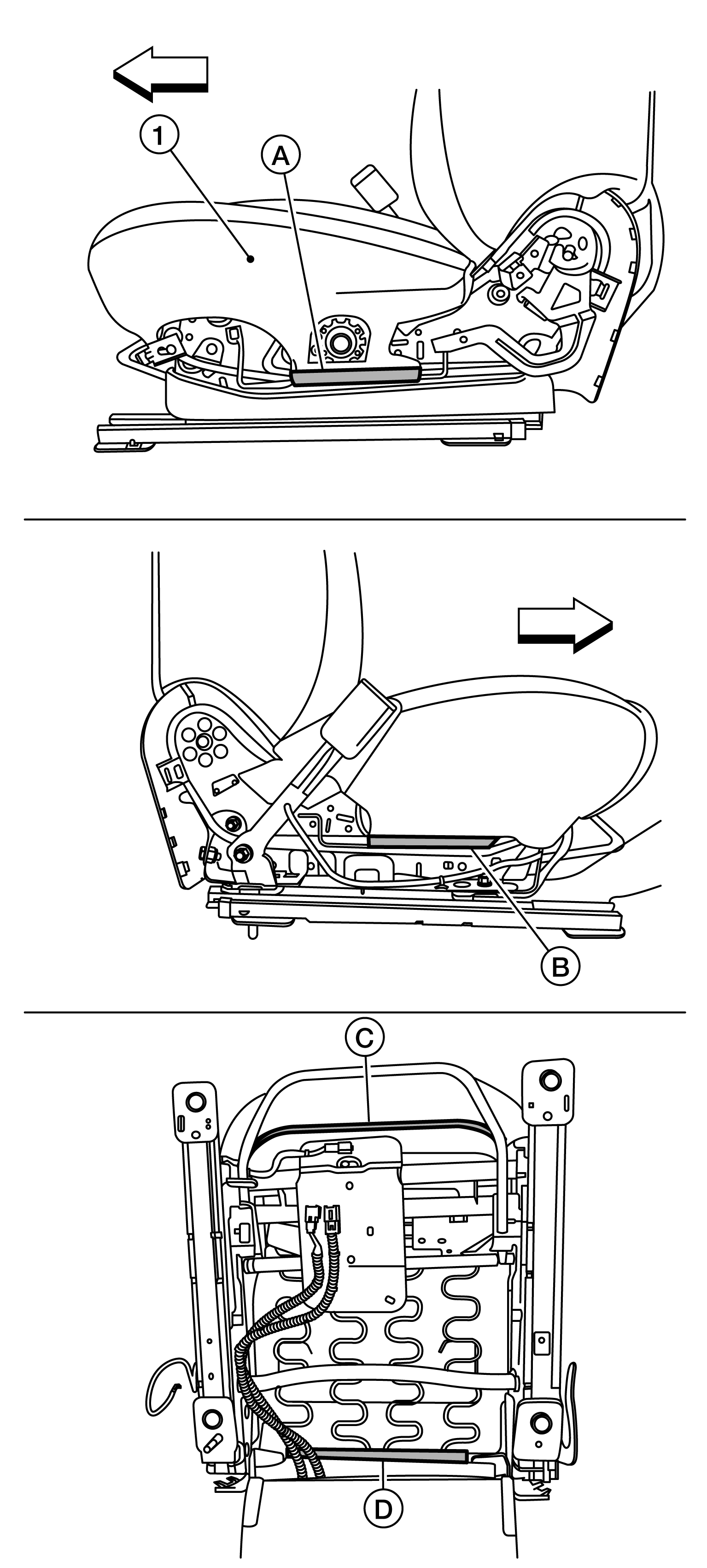

1. Release J-clip retainer (A) from the seat frame assembly.
2. Release J-clip retainer (B) from the seat frame assembly.
3. Release J-clip retainer (D) from the seat frame assembly.
4. Release retainer strip (C) from the seat frame assembly.
5. Disconnect the harness connector from the seat cushion heater (if equipped).
   NOTE:

   Take note of harness routing and attachment location for accurate installation.

6. Remove the seat cushion trim and seat cushion pad as an assembly from the seat frame assembly.

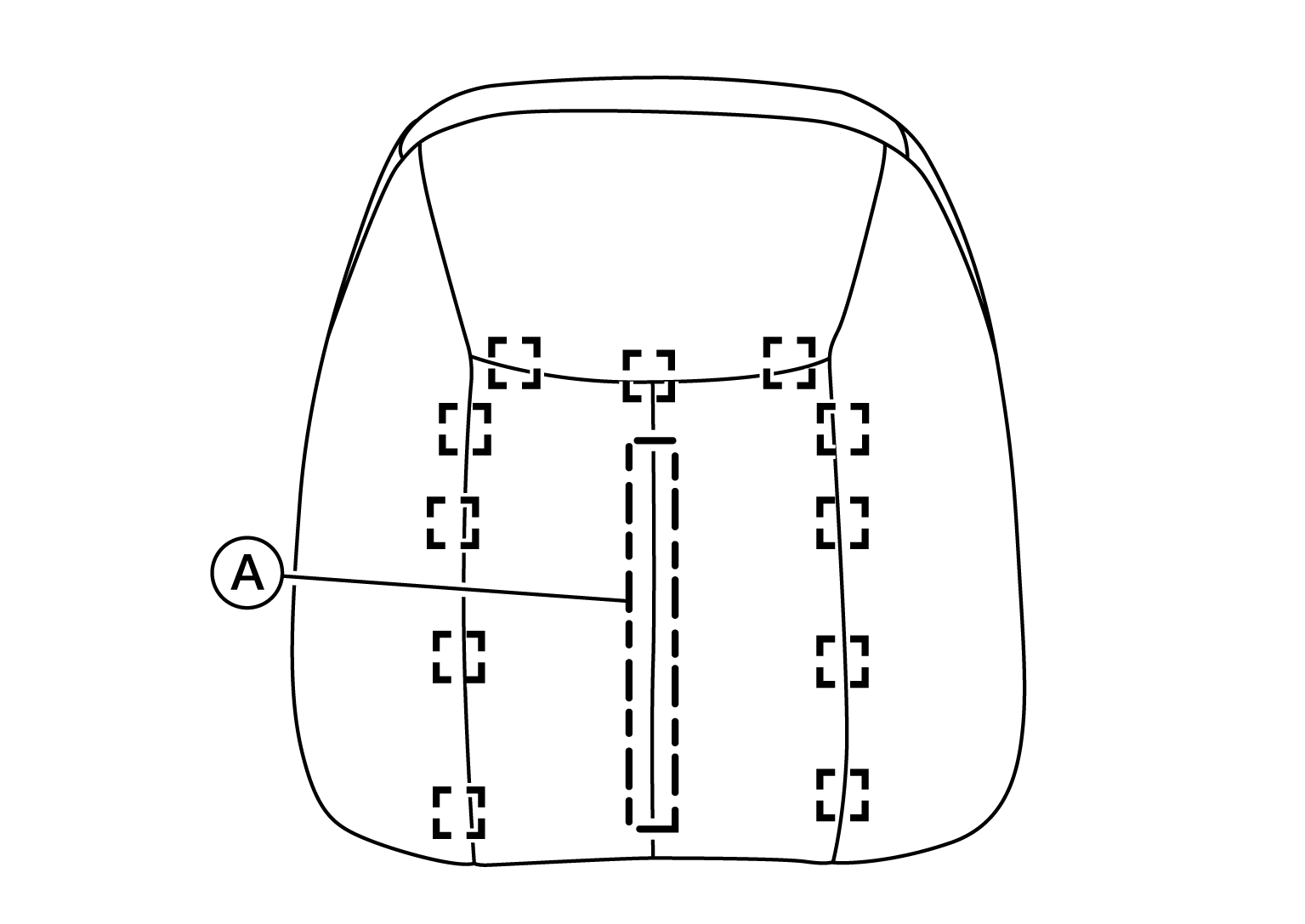

Fig 6: Hook fastener (A) And Seat Cushion Trim

Courtesy of NISSAN NORTH AMERICA, INC.

: Hog ring
