Exploded View With Torque Specifications

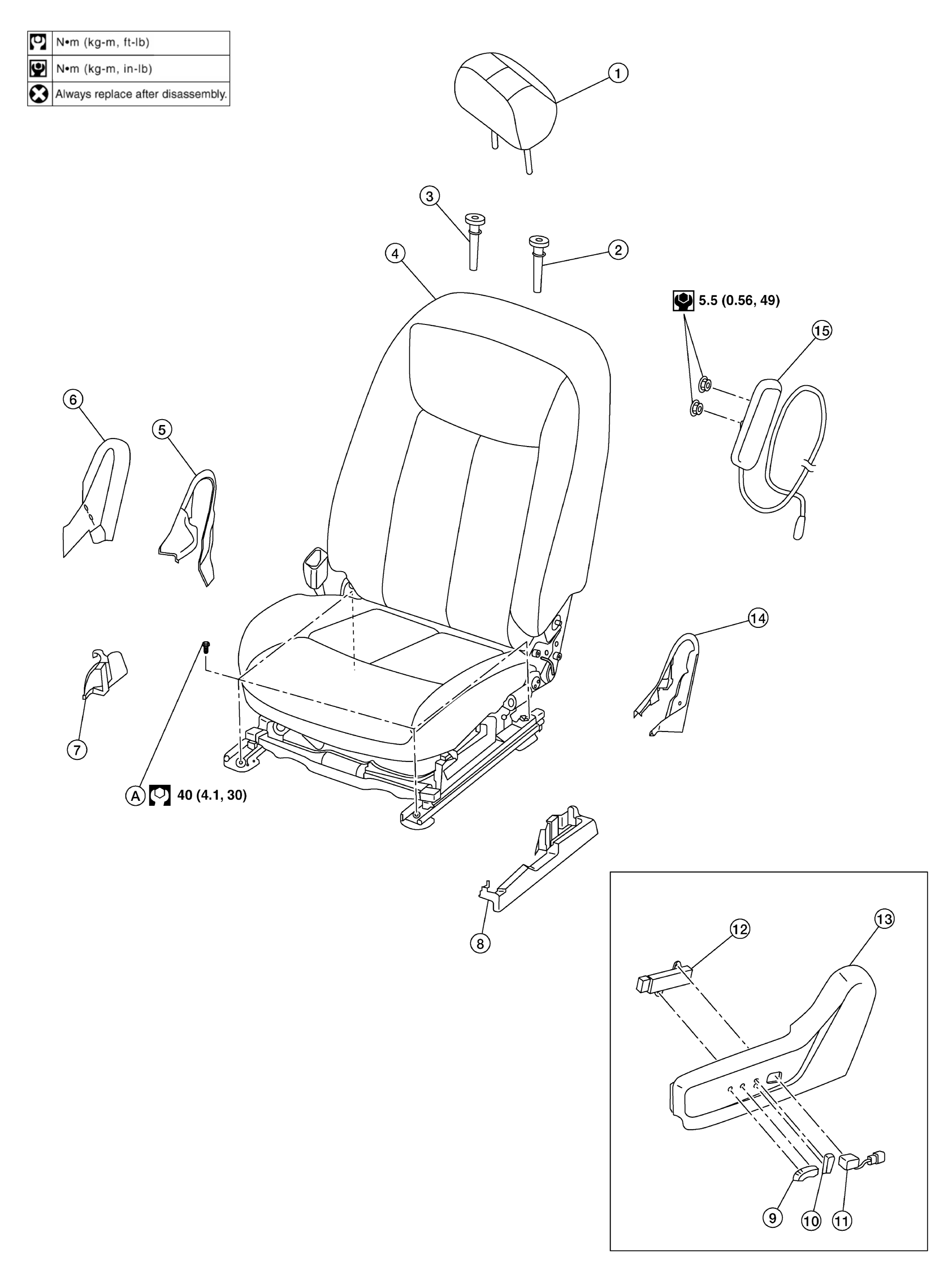

POWER SEAT
| 1. | Headrest | 2. | Headrest holder (locked) | 3. | Headrest holder (free) |
| 4. | Seat assembly | 5. | Seat cushion inside finisher (RH) | 6. | Seat cushion outside finisher (RH) |
| 7. | Seat cushion lower finish (LH) | 8. | Seat cushion lower finisher (RH) | 9. | Seat slide knob |
| 10. | Seat recline knob | 11. | lumbar support switch | 12. | Power seat switch |
| 13. | Seat cushion outer finisher (LH) | 14. | Seat cushion inner finisher (LH) | 15. | Side air bag module (not serviceable) |
| A. | Refer to INSTALLATION |

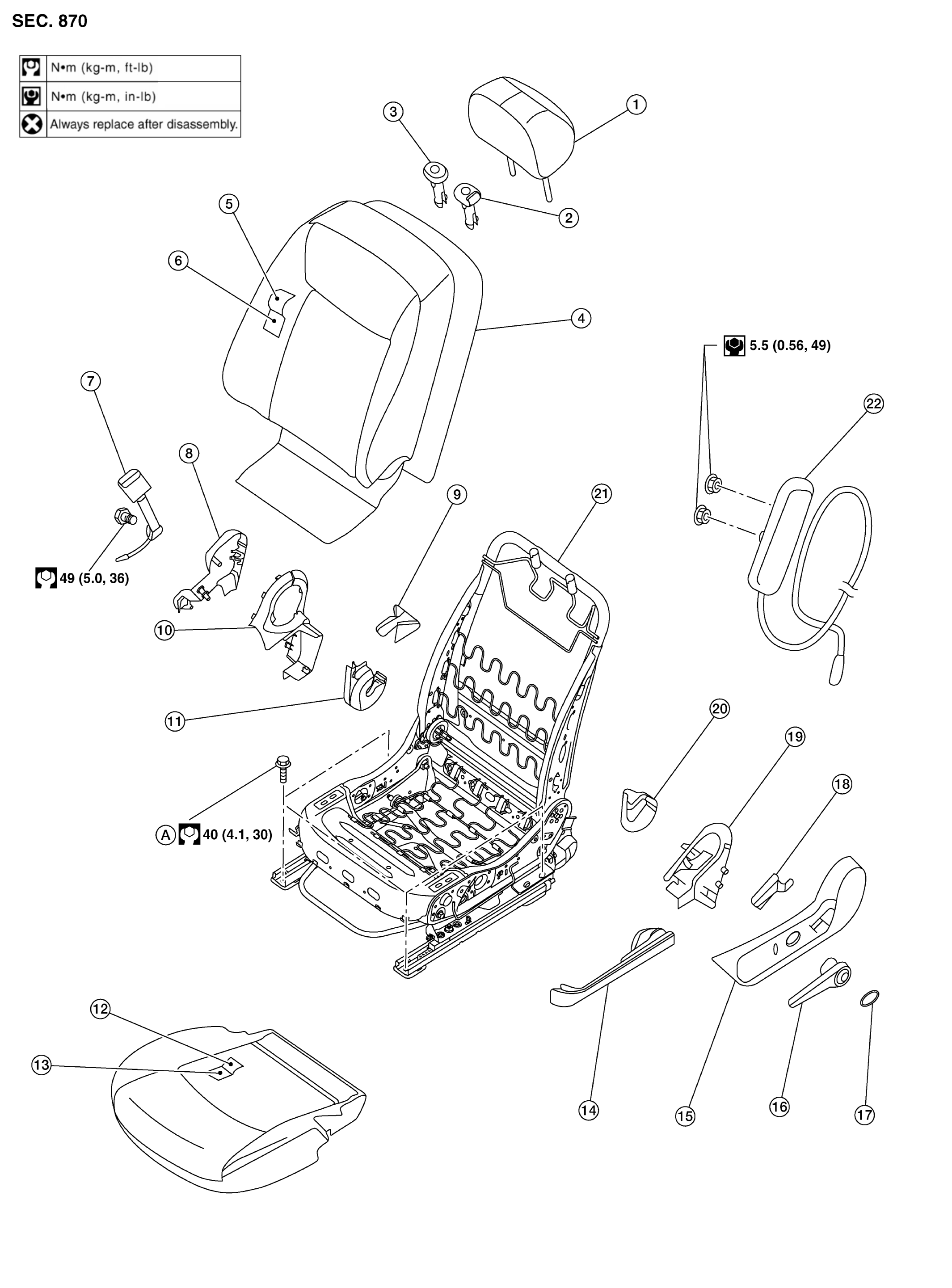

MANUAL SEAT
| 1. | Headrest | 2. | Headrest holder (locked) | 3. | Headrest holder (free) |
| 4. | Seatback silencer | 5. | Seatback trim | 6. | Seatback pad |
| 7. | Seat belt buckle | 8. | Seat cushion outer finisher (RH) | 9. | Slide cover (RH) |
| 10. | Seat cushion inner finisher (RH) | 11. | Recline mechanism cover (RH) | 12. | Seat cushion trim |
| 13. | Seat cushion pad | 14. | Slide cover (LH) | 15. | Seat cushion outer finisher (LH) |
| 16. | Lift lever | 17. | Lift lever finisher | 18. | Recline lever |
| 19. | Seat cushion inner finisher (LH) | 20. | Recline mechanism cover (LH) | 21. | Seat frame assembly |
| 22. | Side air bag module (not serviceable) | A. | Refer to INSTALLATION |
