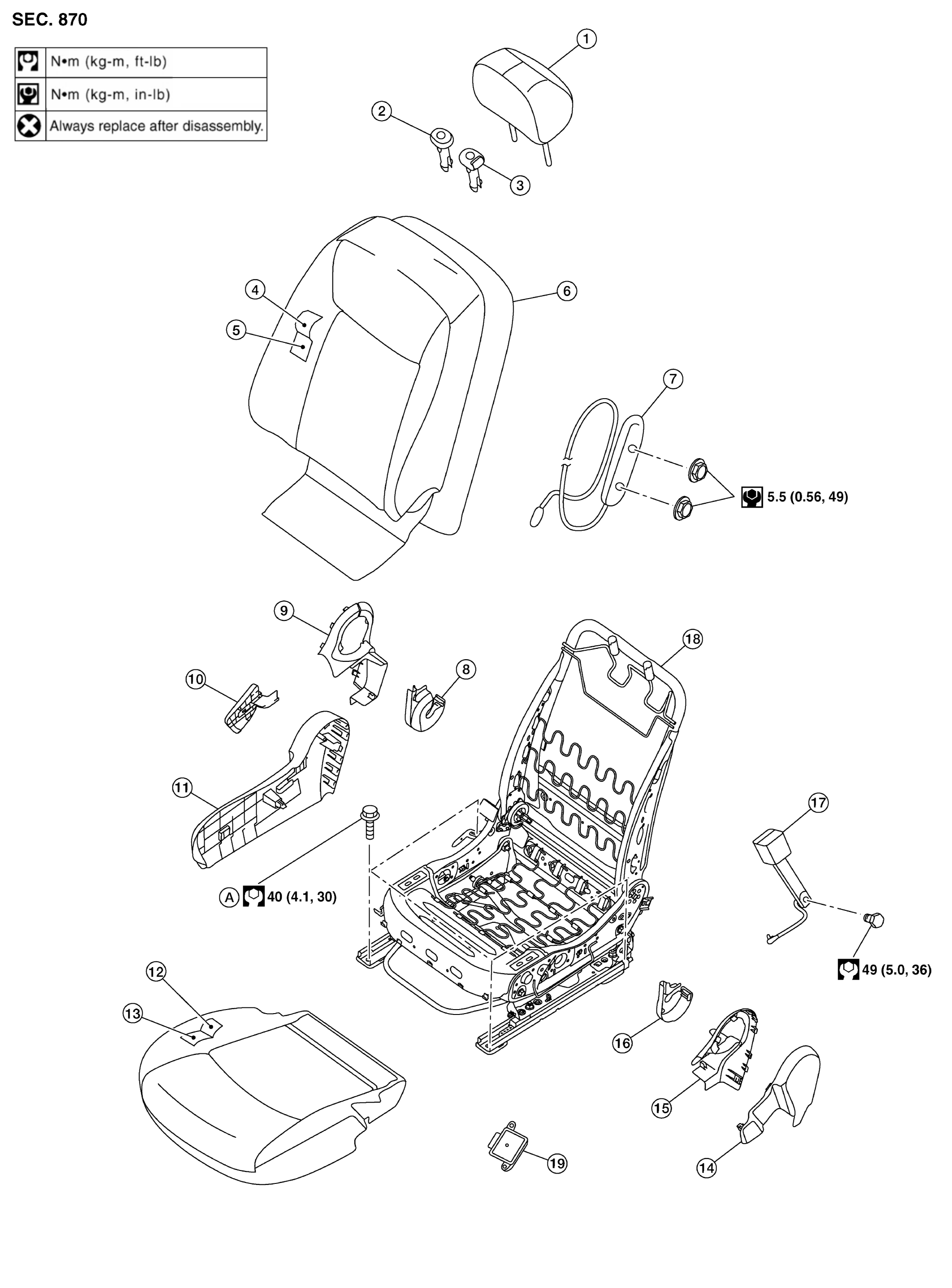

Exploded View With Torque Specifications
PASSENGER SEAT
| 1. | Headrest | 2. | Headrest holder (free) | 3. | Headrest holder (locked) |
| 4. | Seatback trim | 5. | Seatback pad | 6. | Seatback silencer |
| 7. | Side air bag module (not serviceable) | 8. | Recline mechanism cover (RH) | 9. | Seat cushion inner finisher (RH) |
| 10. | Recline lever | 11. | Seat cushion outer finisher (RH) | 12. | Seat cushion trim |
| 13. | Seat cushion pad | 14. | Seat cushion outer finisher (LH) | 15. | Seat cushion inner finisher (LH) |
| 16. | Recline mechanism cover (LH) | 17. | Seat belt buckle | 18. | Seat frame assembly |
| 19. | Occupant classification system control unit | A. | Refer to INSTALLATION |
