Exploded View With Torque Specifications

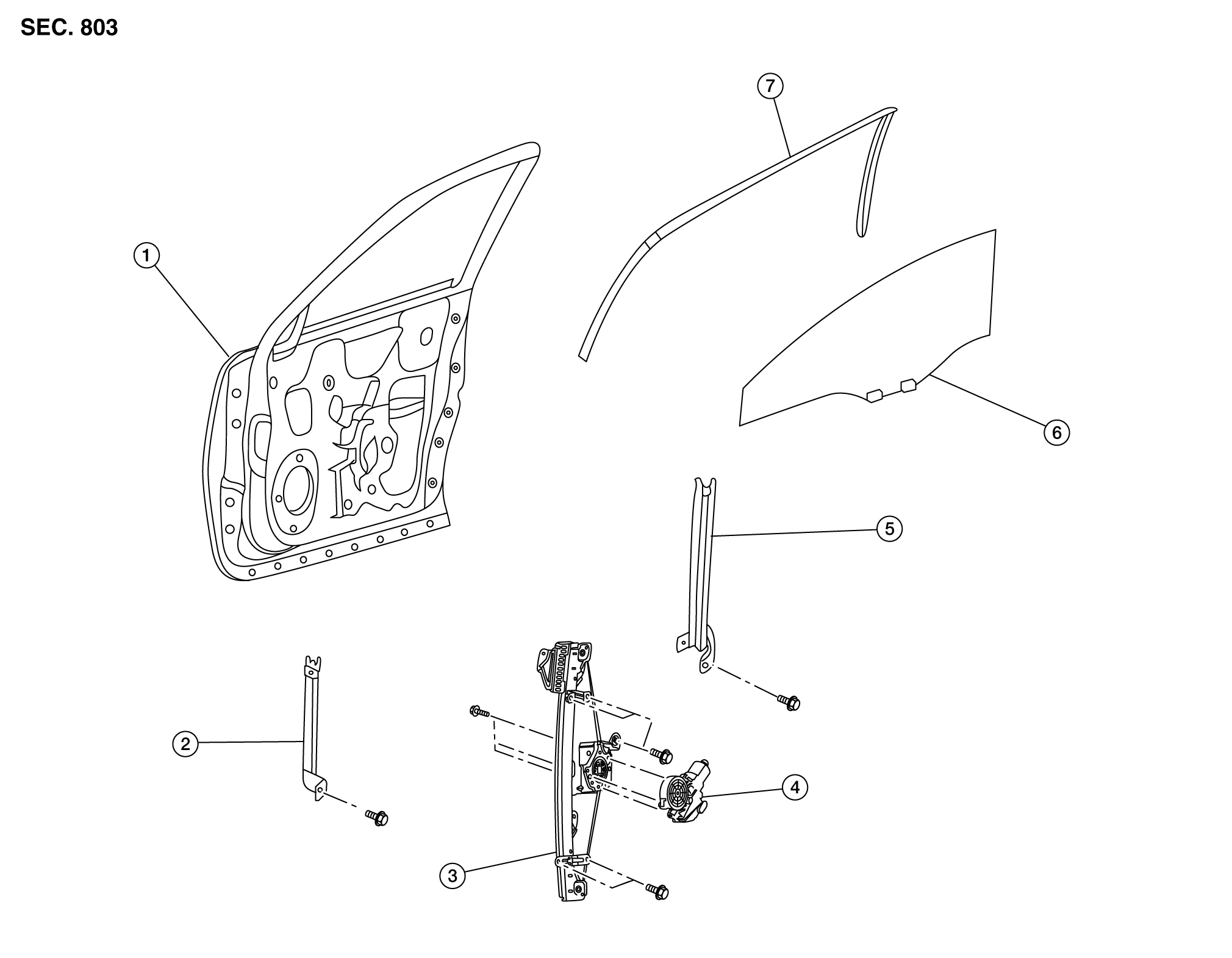

Fig 1: Exploded View Of Front Regulator

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front door panel	2.	Front door glass channel front	3.	Front door glass regulator
4.	Front door glass regulator motor	5.	Front door glass channel rear	6.	Front door glass
7.	Front door glass rubber run
