Component Parts Location

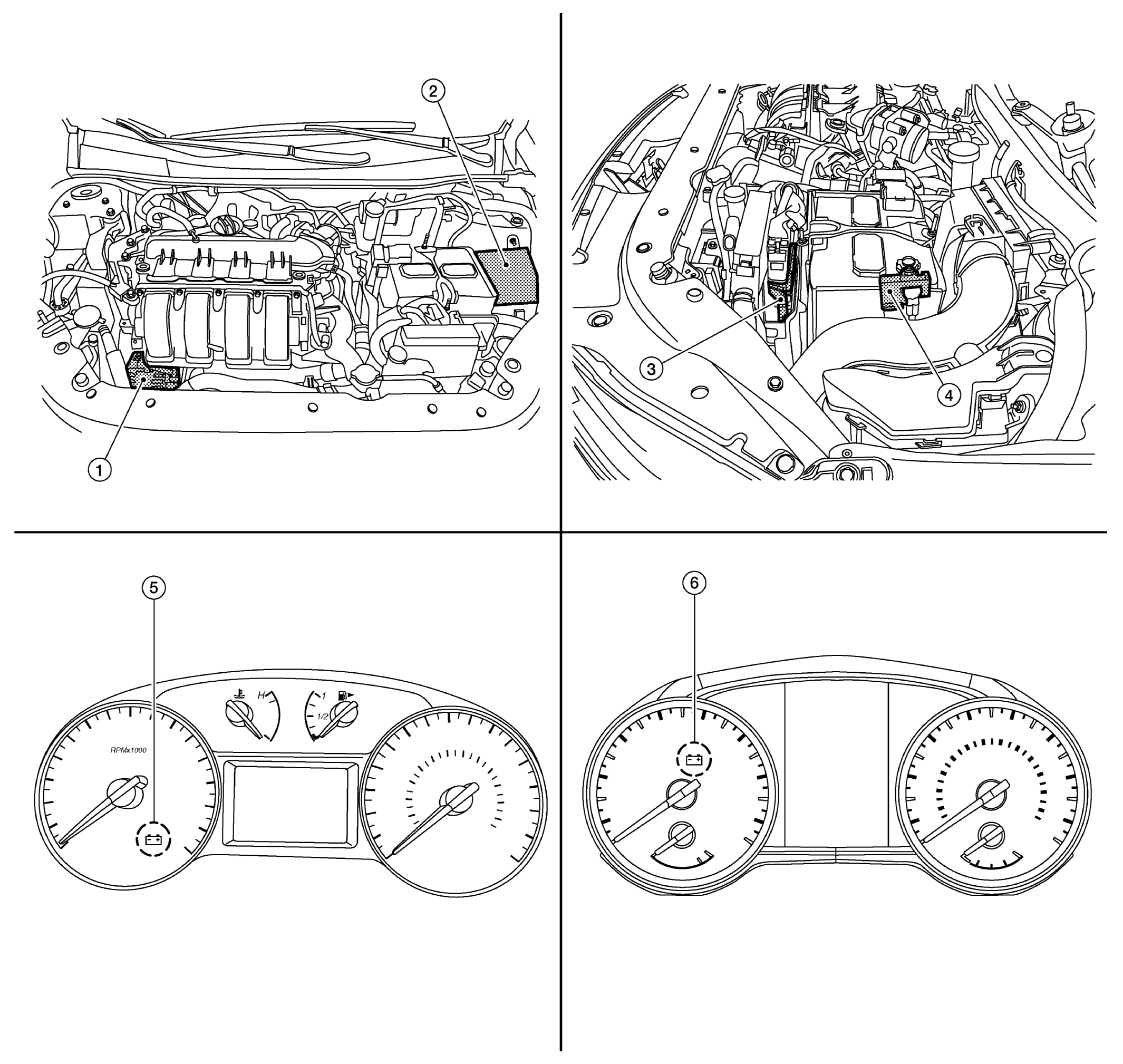

Fig 1: Charging System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Generator	2.	IPDM E/R (view with air inlet duct removed)	3.	ECM
4.	Battery current sensor	5.	Combination meter (Type A)	6.	Combination meter (Type B)
