Component Location

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

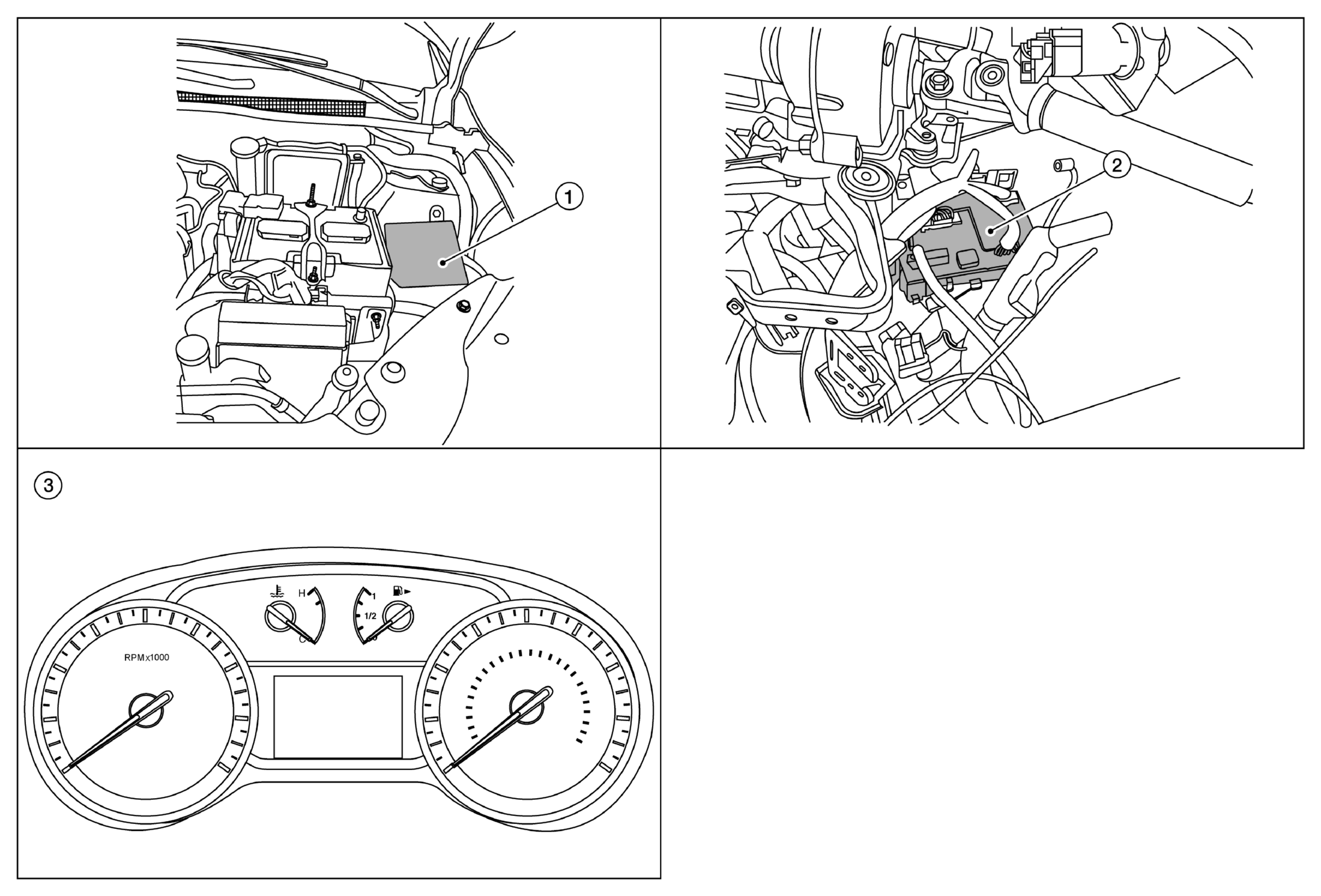

GNSAWMIA1357ZZ-357Courtesy of NISSAN NORTH AMERICA, INC.
1 IPDM E/R 2 BCM (view with instrument panel removed) 3 Combination meter (Type A)
