Exploded View With Torque Specifications

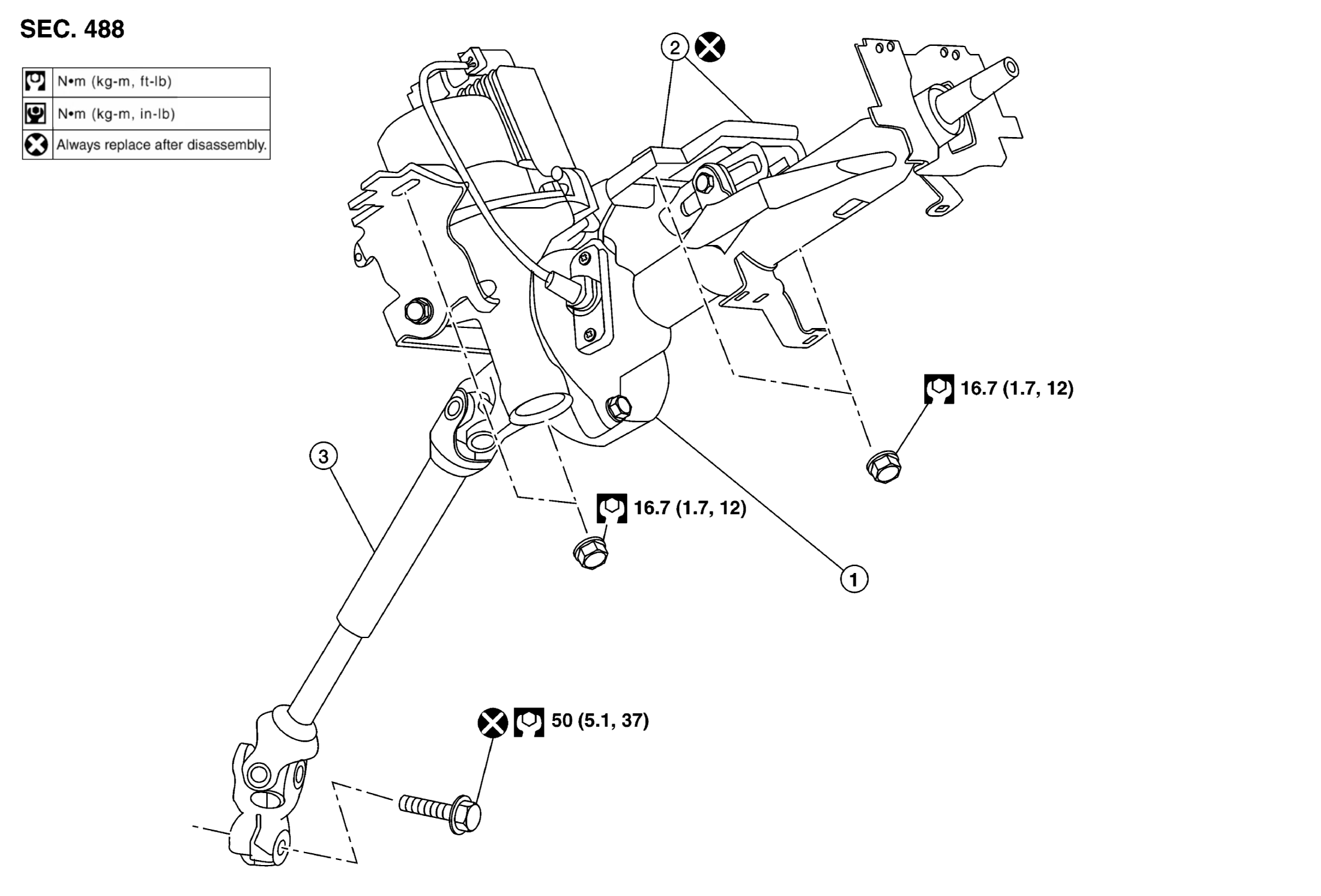

Fig 1: Exploded View Of Steering Column With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column assembly
2.
Slide plates
3.
lower shaft assembly
Courtesy of NISSAN NORTH AMERICA, INC.
