Exploded View With Torque Specifications

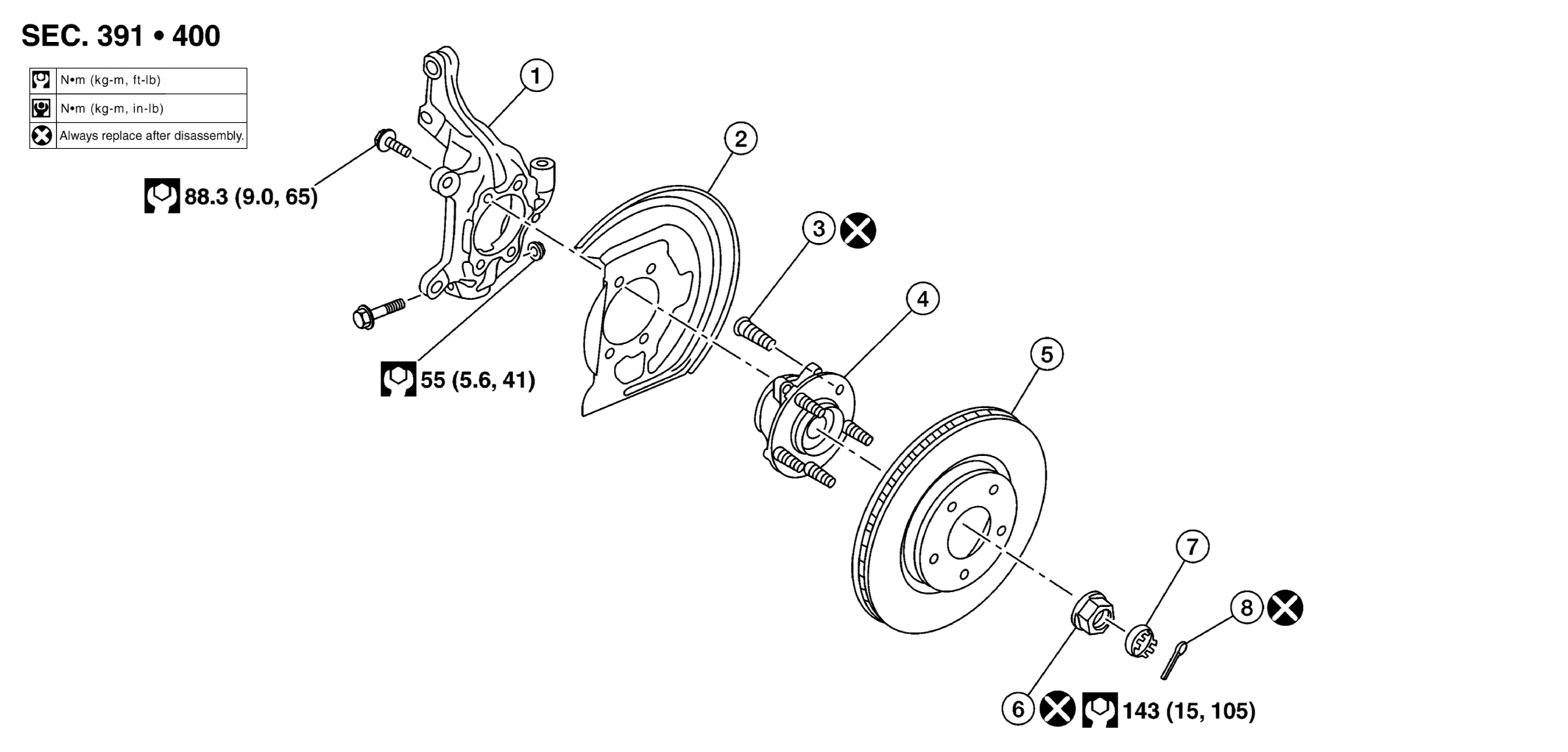

Fig 1: Exploded View Of Steering Knuckle With Torque Specification
GNSAWDIA1205ZZ-205Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering knuckle 2. Splash guard 3. Wheel stud
4. Wheel hub and bearing 5. Disc brake rotor 6. Wheel hub lock nut
7. Nut retainer 8. Cotter pin
