Exploded View With Torque Specifications

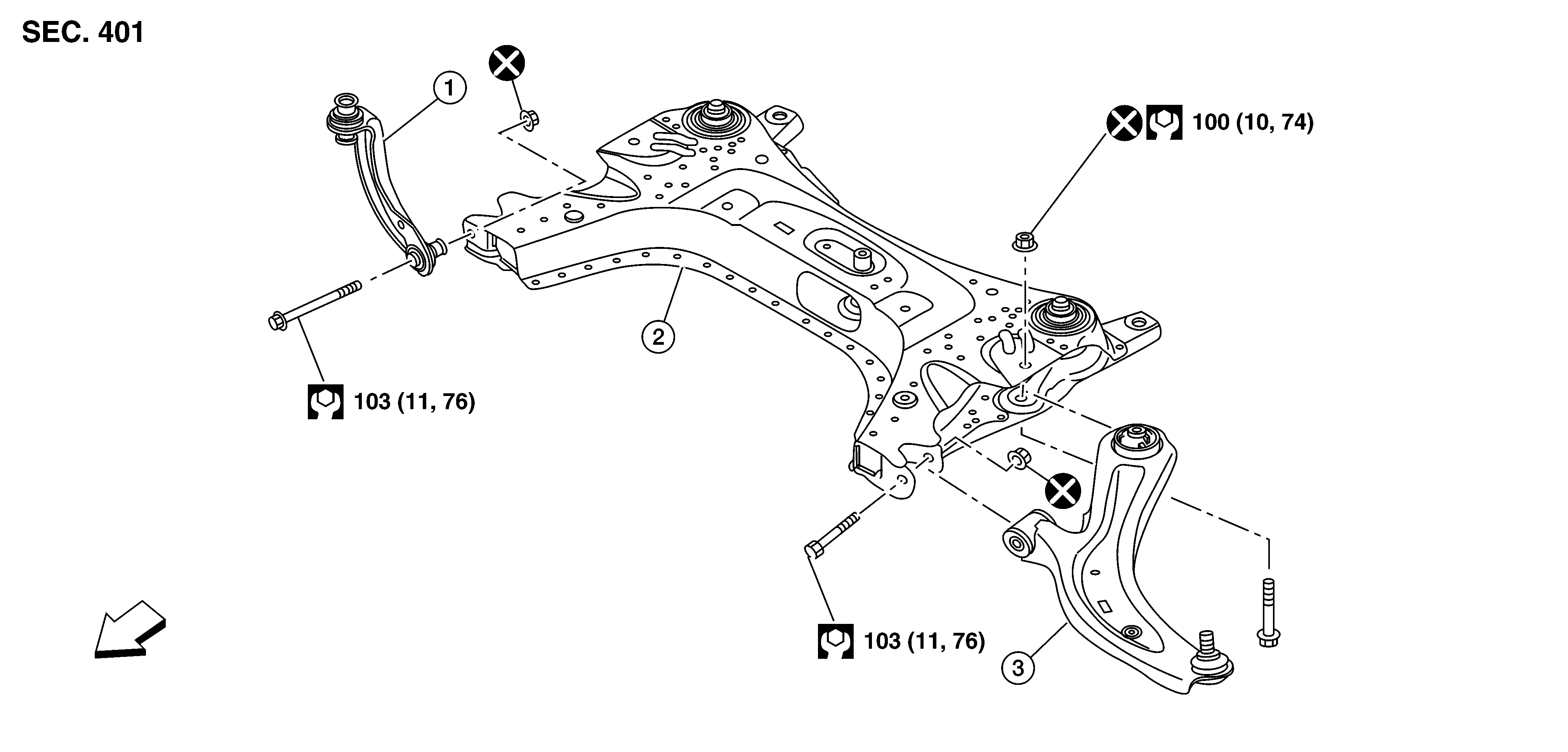

Fig 1: Exploded View Of Transverse Link With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Upper link
2.
Front suspension member
3.
Transverse link
Front
