System Diagram

Without FEB OR BSW

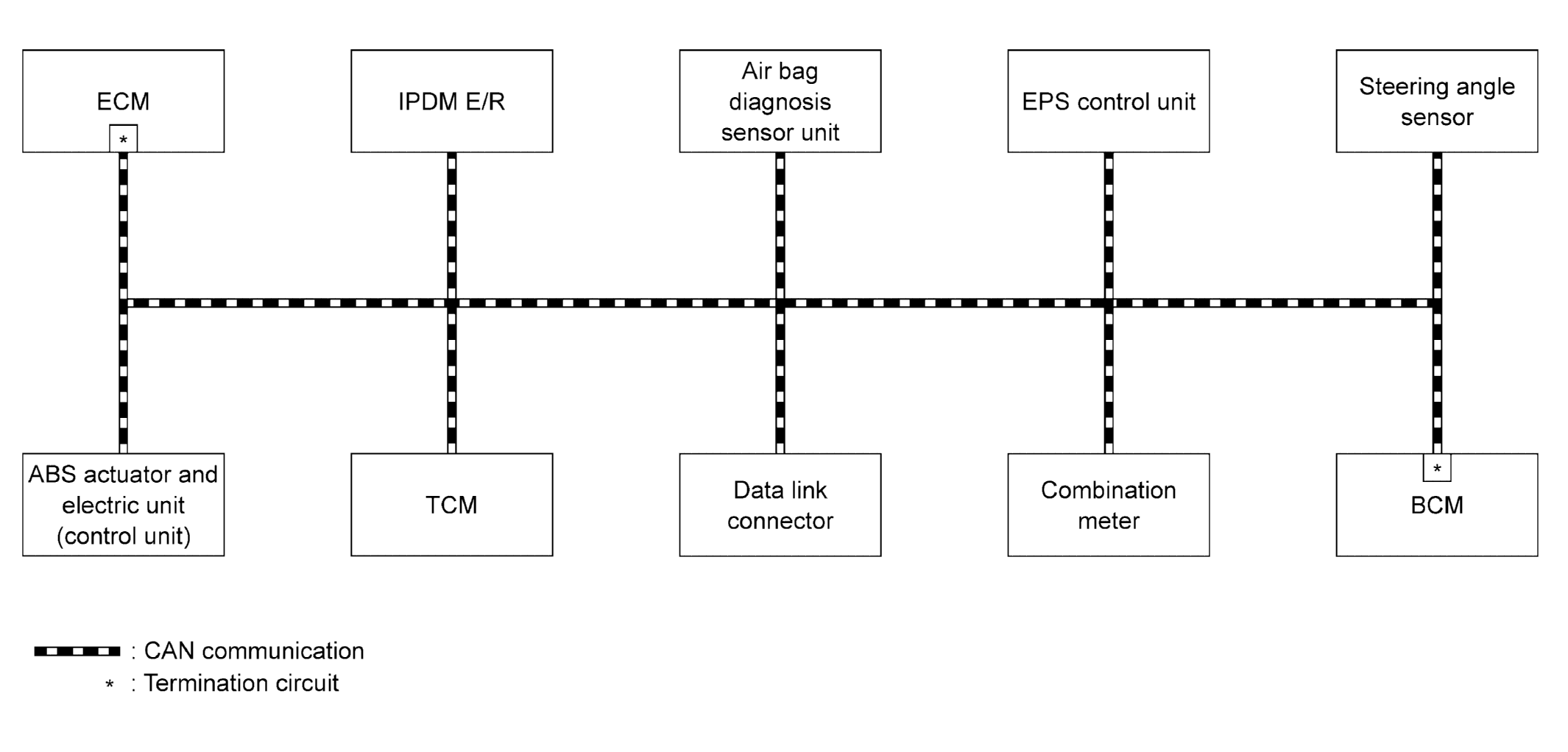

Fig 1: Can Communication System Without FEB OR BSW
GNSJSMIA2686GB-686Courtesy of NISSAN NORTH AMERICA, INC.

With FEB OR BSW

Fig 2: Can Communication System With FEB OR BSW
GNSJSMIA2687GB-687Courtesy of NISSAN NORTH AMERICA, INC.
