Exploded View With Torque Specifications

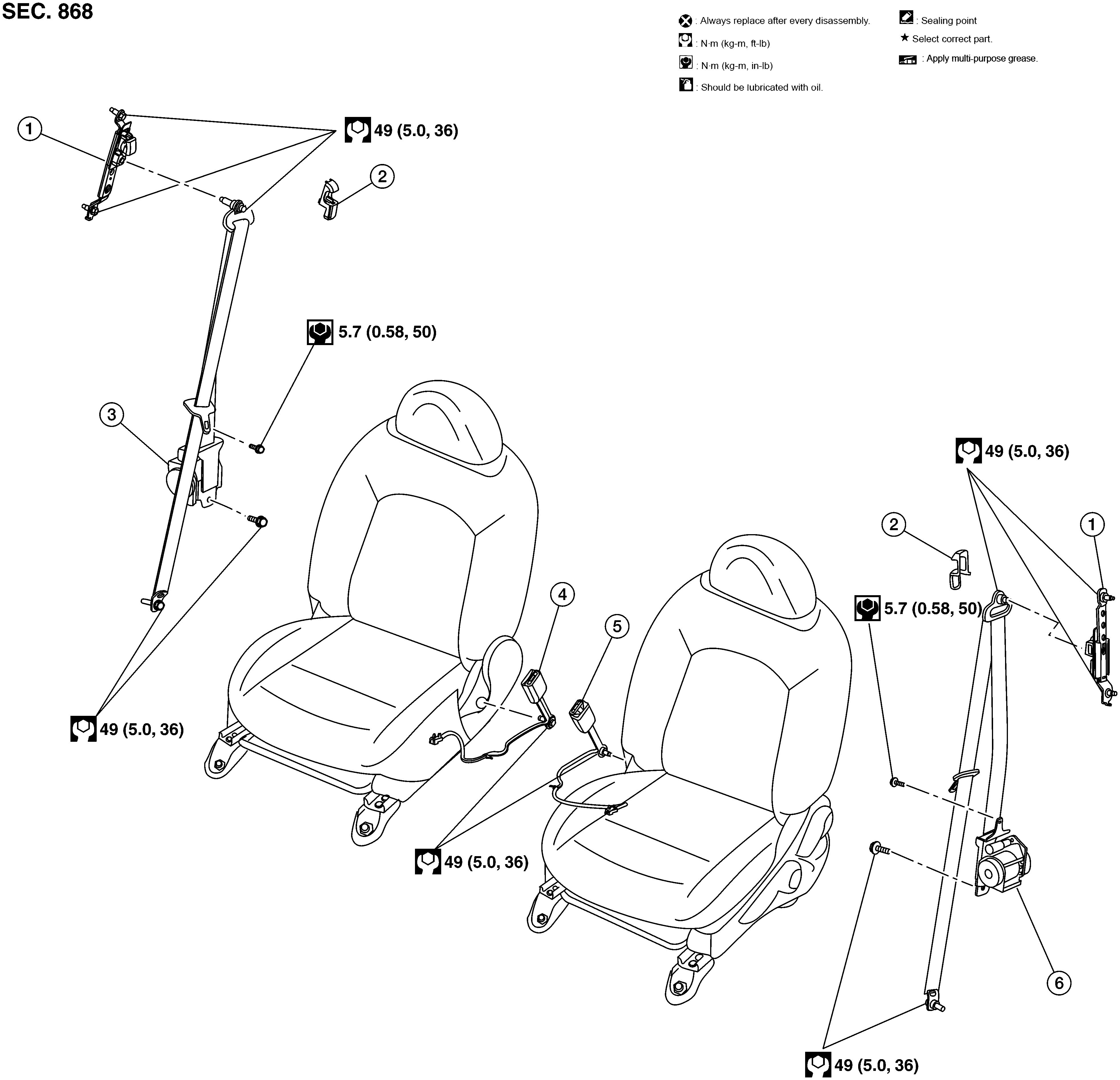

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt height adjuster (LH/RH)	2.	Seat belt height adjuster finisher (LH/RH)	3.	Seat belt retractor (RH)
4.	Seat belt buckle (RH)	5.	Seat belt buckle (LH)	6.	Seat belt retractor (LH)
