WIRE TO WIRE Connector End View (B12)

Connector Color: GRAY

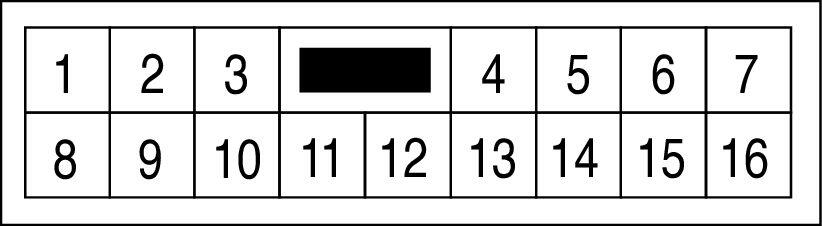

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	-
2	SHIELD	-
3	GR	-
4	W	-
5	G	-
6	V	-
7	SB	-
8	W	-
9	R	-
10	V	-
11	Y	-
12	BR	-
13	SB	-
14	P	-
15	W	-
16	BG	-

Harness Layout

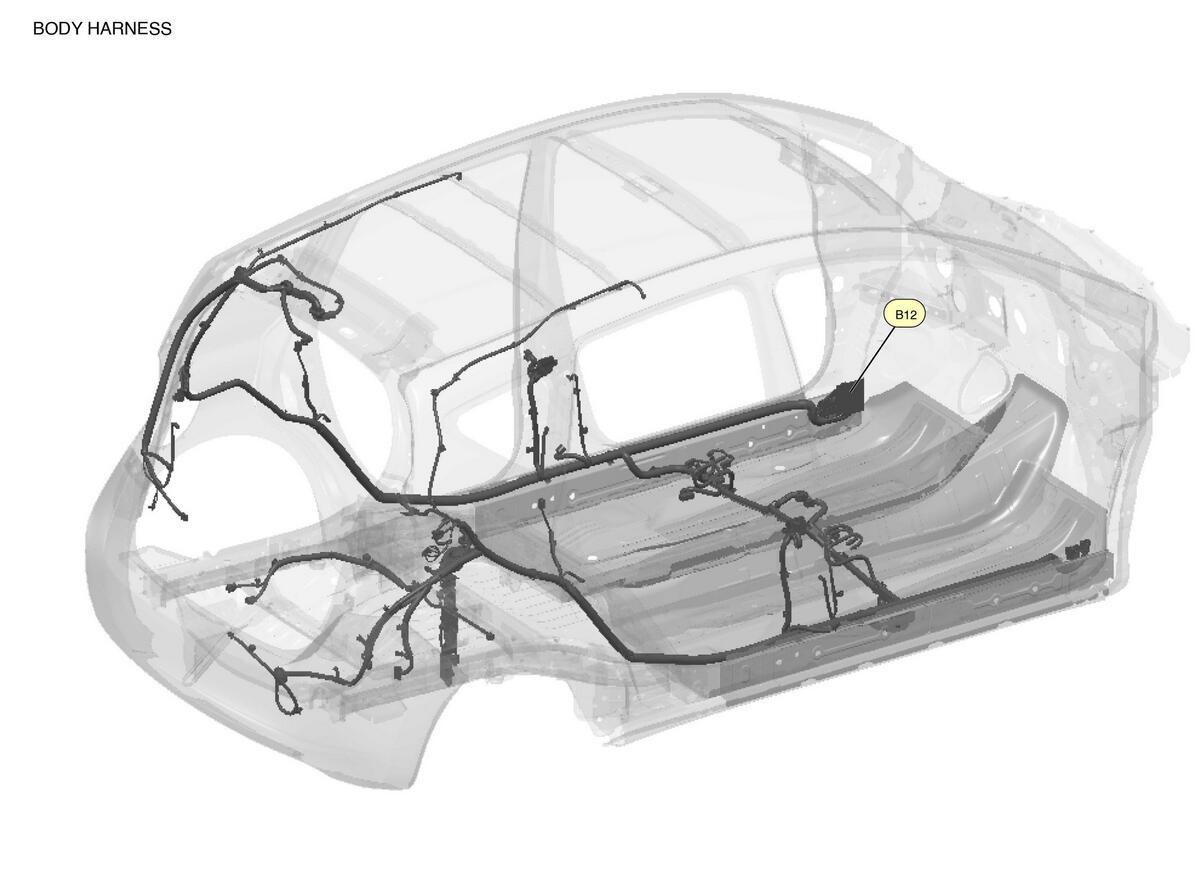

Fig 3: BODY HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: NS16MGY-CS
