Component Parts Location

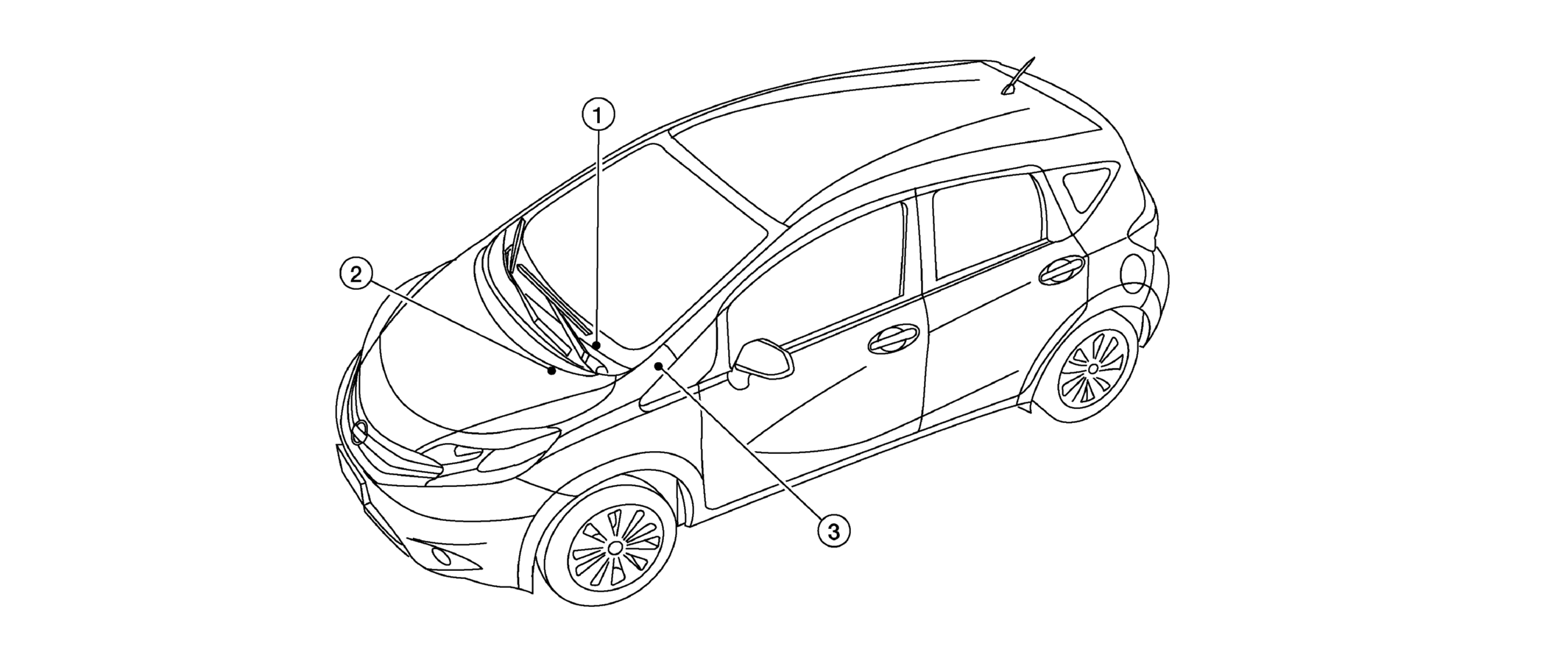

Fig 1: Power Consumption Control System Components Location
GNSAWMIA1437ZZ-437Courtesy of NISSAN NORTH AMERICA, INC.
1 Combination meter
Refer to COMPONENT PARTS LOCATION .		 2 IPDM E/R
Refer to COMPONENT PARTS LOCATION .		 3 BCM
Refer to COMPONENT PARTS LOCATION .
