Around View Monitor Function: Display

The around view monitor combines and displays travel direction view (front or rear), front-side view and birds-eye view.

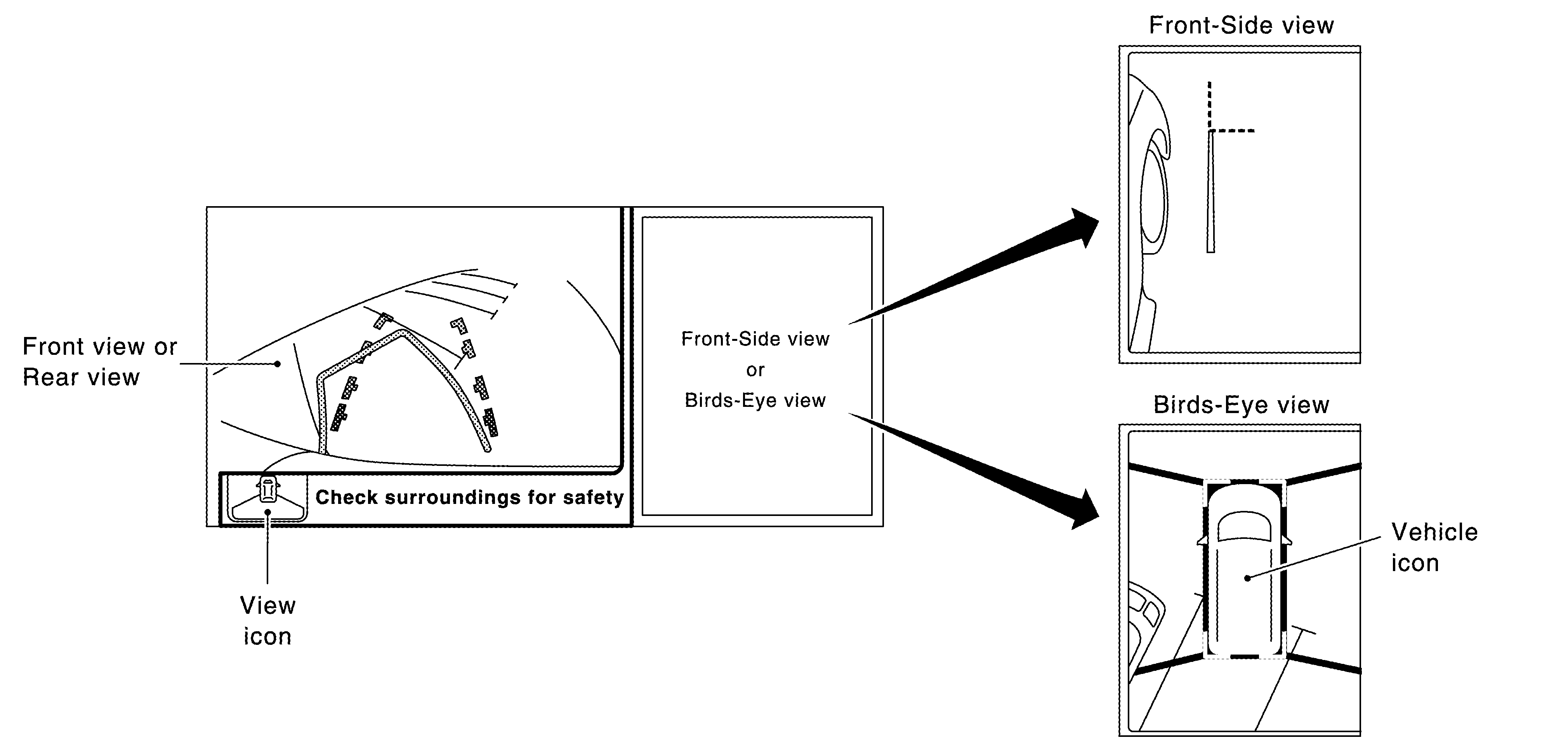

Fig 1: Around View Monitor Screen Constitution

Courtesy of NISSAN NORTH AMERICA, INC.
