Diagnostic Test

  1. CHECK FUEL PUMP FUNCTION

    1. Turn ignition switch ON.
    2. Pinch fuel feed hose (1) with two fingers.

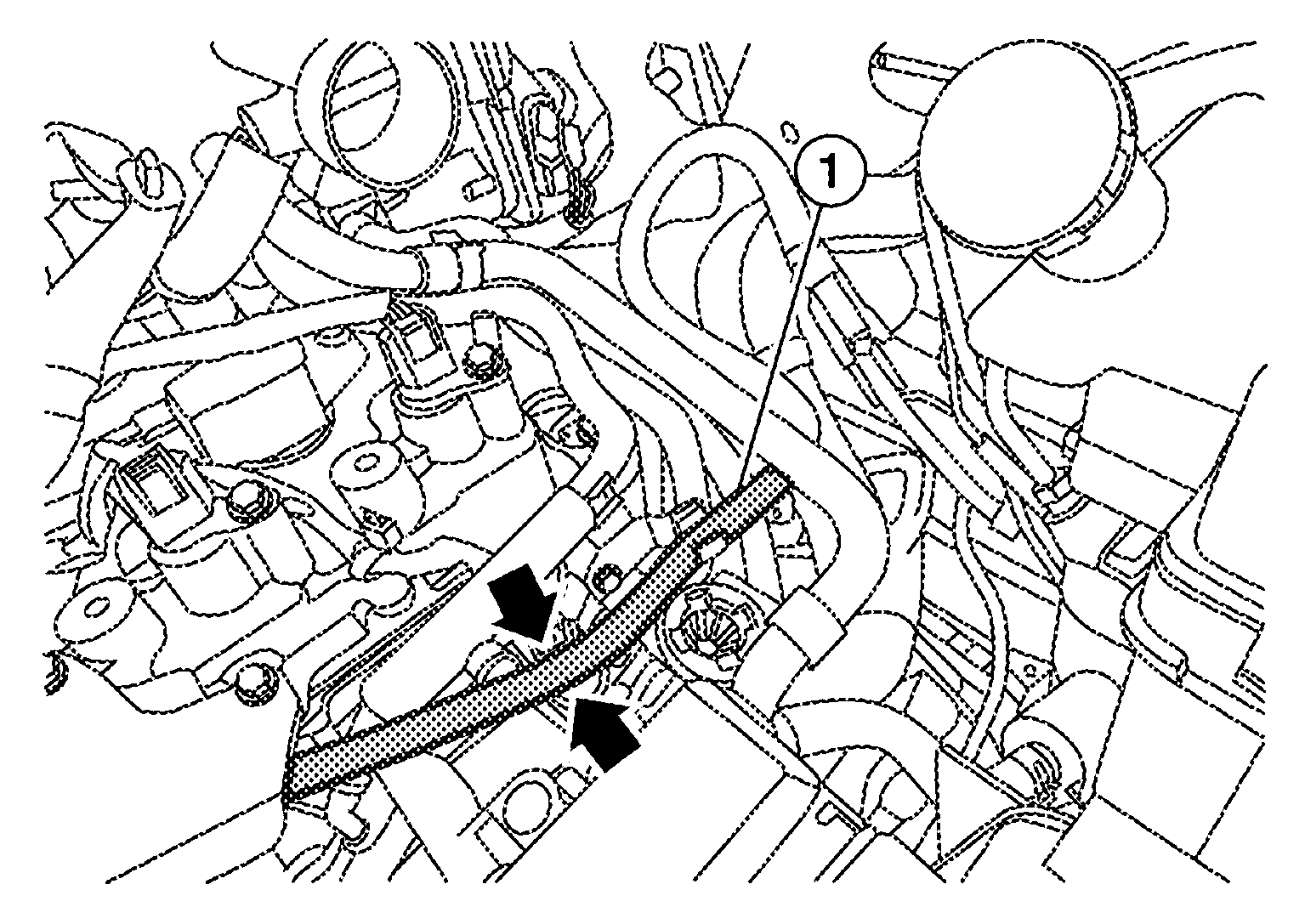

      Fig 1: Locating Fuel Feed Hose
      G09617762Courtesy of NISSAN NORTH AMERICA, INC.
      Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

    Is the inspection result normal?

    YES

    INSPECTION END

    NO

    DIAGNOSIS PROCEDURE .
