Exploded View With Torque Specifications

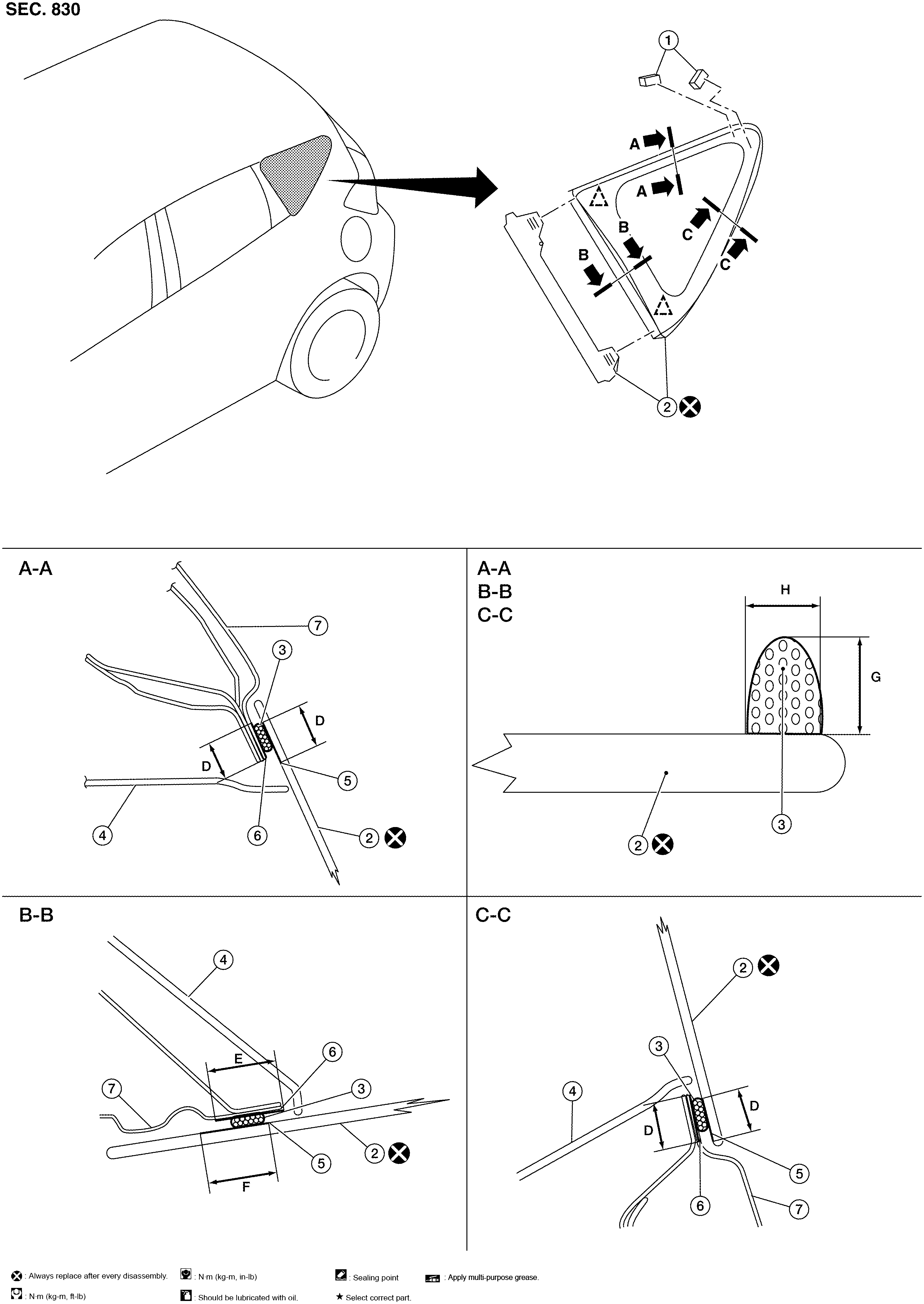

Fig 1: Exploded View Of Side Window Glass

GNSAWKIA2558ZZ-558

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Spacer	2.	Side window glass	3.	Adhesive
4.	Luggage side upper finisher	5.	Primer	6.	Body primer
7.	Body side outer	D.	15.0 mm (0.59 in)	E.	22.4 mm (0.88 in)
F.	24.0 mm (0.94 in)	G.	12.0 mm (0.47 in)	H.	7.0 mm (0.28 in)
	Clip
